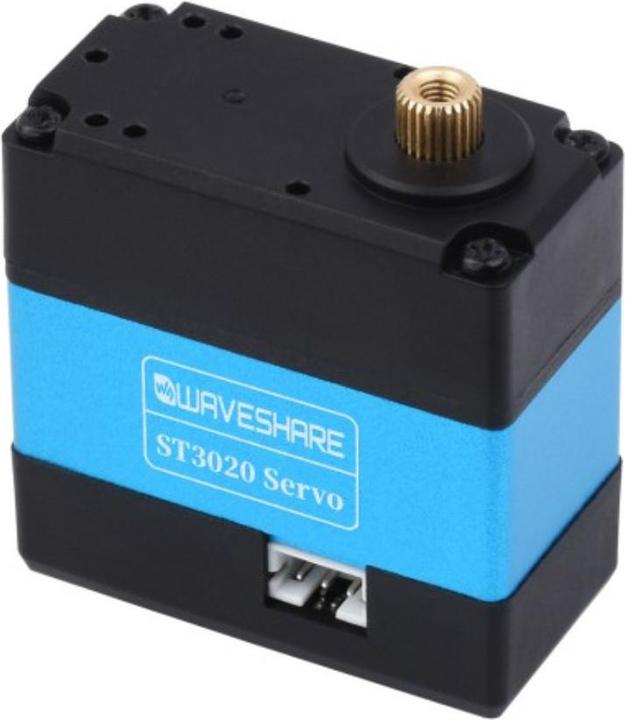

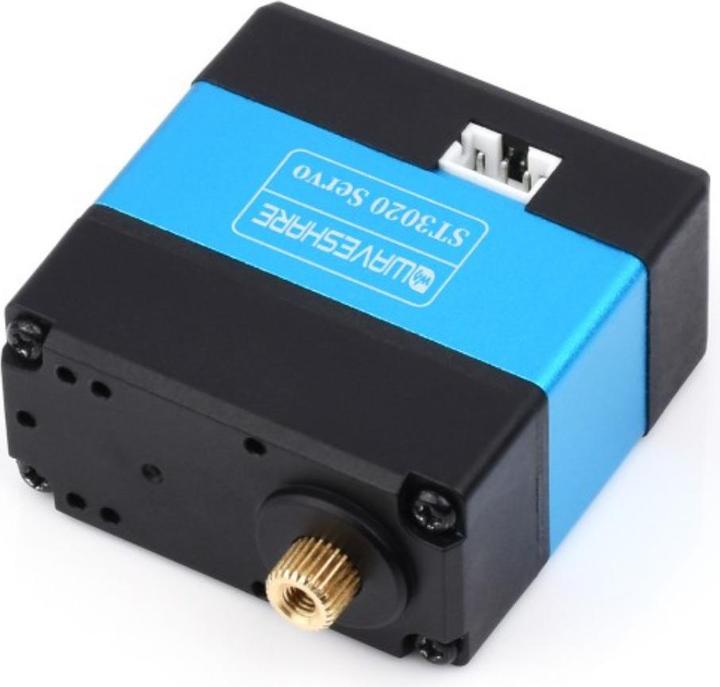

WaveShare ST3020 25kg Serial Bus Servo

Ratings
Delivered between Mon, 16.6. and Tue, 17.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

This is a programmable ST3020 360° bus servo with up to 25 kg*cm of torque. Up to 253 of these servos can be connected in series via the UART interface to perform complex tasks, such as in robotics. To enable the servo to withstand loads of up to 25 kg*cm, it has a robust metal gearbox. The serial bus servos provide various feedback signals such as position, load, speed, and input voltage in real time.

Attention: This servo cannot be controlled via PWM like standard servos, but via UART!

Recommended accessories for control:

  • ESP32 Serial Bus Servo Driver Expansion Board
  • Serial Bus Servo Driver Adapter (A) USB/UART

Features:

  • Programmable serial bus servo

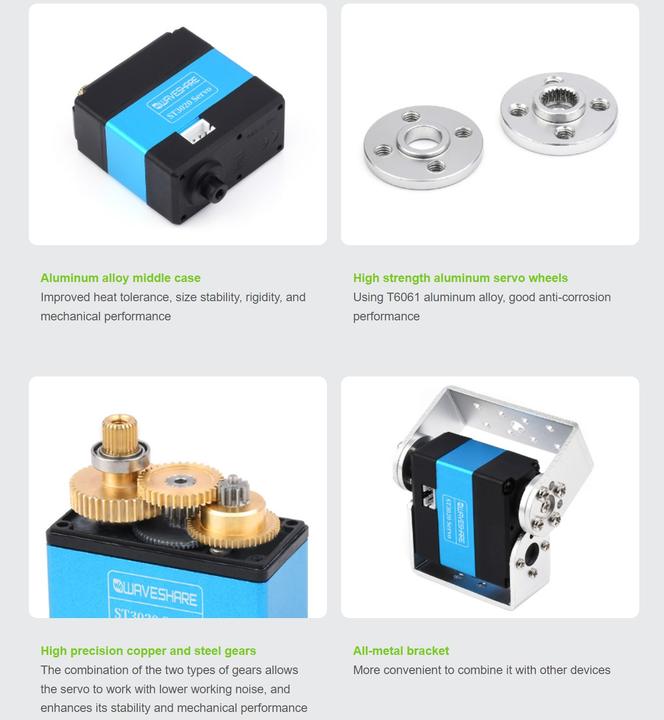

  • Metal gearbox
  • 25 kg*cm torque at 12V
  • UART interface
  • Real-time readout of position, load, speed, and input voltage
  • Up to 253x switchable in series

Application examples:

  • Robot arms
  • Hexapod robot
  • Wheeled robot
  • Open source 12-DOF robot dog model

Technical details:

  • Manufacturer: Waveshare
  • Manufacturer SKU: 24703
  • Input voltage: 6~14V DC
  • Load current: 200 mA ~ 2.7 A
  • Gear: High precision metal gear
  • Modes: Servo mode angular control, motor mode continuous rotation
  • Servo mode:
  • Rotation angle: 360°
  • Position sensor resolution: 360°/4096
  • Idle speed: 0.167 sec/60° (60 RPM) at 12V
  • ID range: 0-253
  • Baud rate: 38400 bps ~ 1 Mbps
  • Torque: 25 kg*cm
  • Feedback: position, load, speed, input voltage, current, temperature
  • Dimensions: 40.2 x 20.2 x 40 mm
  • Weight: 98.8 g

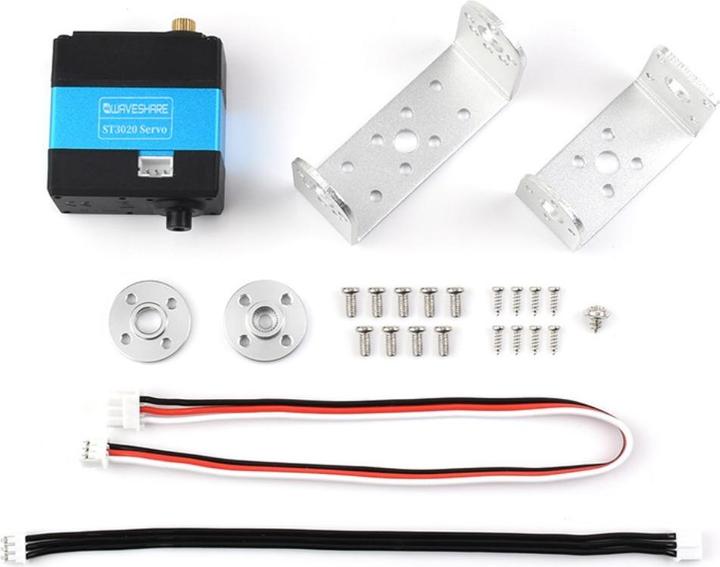

Scope of delivery:

  • 1x ST3020 25 kg Serial Bus Servo
  • 1x screw set
  • 2x servo disc
  • 2x servo cable

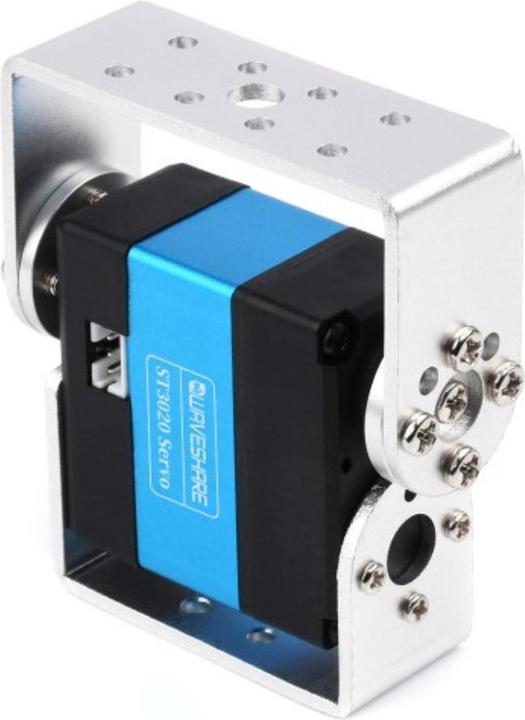

  • 2x servo bracket.

Key specifications

Development board type
Kit
Item number
39538598

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
24.10.2023

Development board properties

Development board type
Kit
Flash memory
25 kB

Power supply

Operating voltage
14 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x screw set, 1x ST3020 25kg Serial Bus Servo, 2x servo bracket, 2x servo cable, 2x servo disc
Additionally required (not included)
1x ESP32 Serial Bus Servo Driver Expansion Board, 1x Serial Bus Servo Driver Adapter (A) USB/UART

Product dimensions

Length
40 mm
Width
40.20 mm
Height
20.20 mm
Weight
98.80 g
