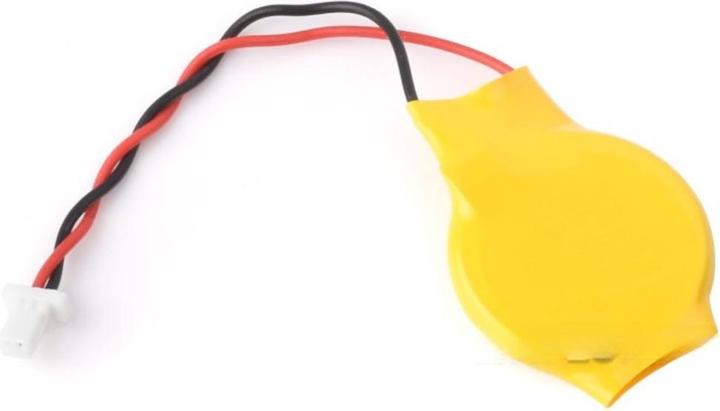

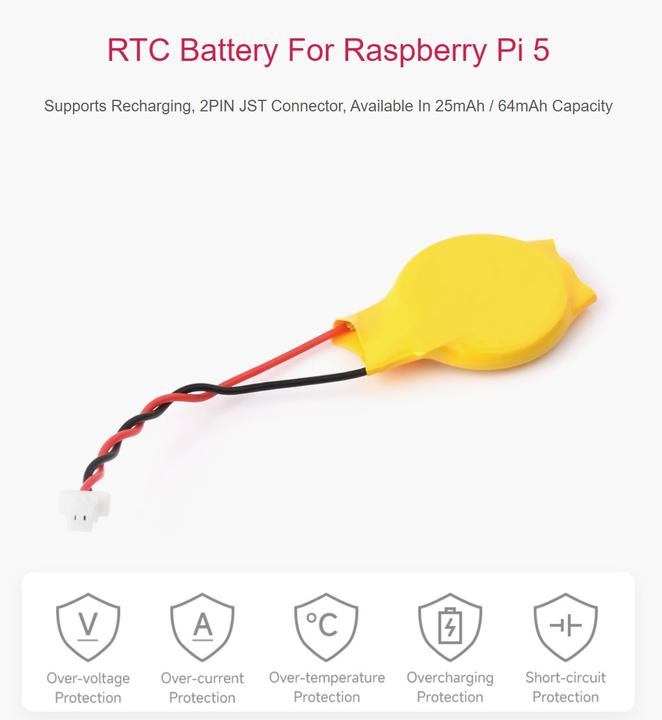

WaveShare RTC Battery 64mAh for Raspberry Pi 5

The 64mAh RTC battery is a rechargeable battery specifically designed for the Raspberry Pi 5 to ensure reliable real-time clock (RTC) power supply. This battery helps the Raspberry Pi 5 board maintain accurate time even when the main power supply is turned off. With a capacity of 64mAh and a nominal voltage of 3V, it provides long-lasting and stable power for the RTC function of your Raspberry Pi. The battery comes with a 2PIN JST connector and is easy to install. Thanks to its compact size and lightweight design, it can be easily integrated into any project. The RTC battery is an essential component for anyone looking to use their Raspberry Pi for time-sensitive applications.

Features:

• Specifically designed for the Raspberry Pi 5.
• 64mAh capacity for long-lasting power supply.

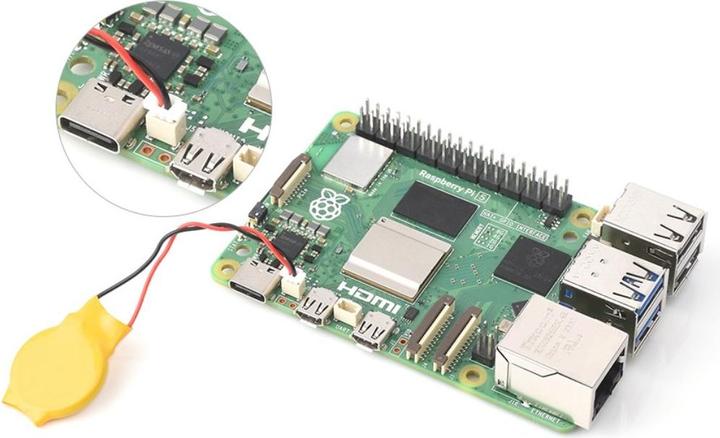

• Supports recharging directly via the Raspberry Pi 5.
• 2PIN JST connector for easy installation.
• Compact dimensions and lightweight.
• Nominal voltage of 3V.
• Ensures accurate timekeeping even without main power supply.

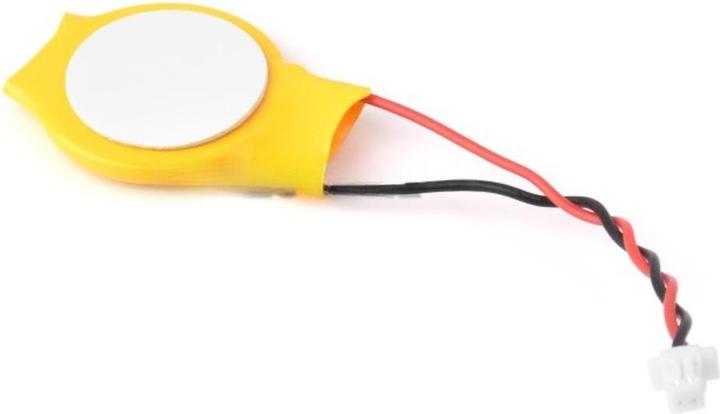

• Comes with double-sided tape on the back for easy mounting.

Application Examples:

• Time-controlled projects and applications with the Raspberry Pi 5.
• Systems that need to retain accurate time even after a power outage.
• Projects that require a reliable time base without constant internet connectivity.

Technical Specifications:

• Manufacturer: Waveshare
• Manufacturer SKU: 26357
• Battery capacity: 64mAh
• Battery model: ML-2032
• Nominal voltage: 3V
• Maximum voltage: 3.3V
• Lifespan: After 300 charge/discharge cycles, the capacity remains over 80% of the initial level.
• Connection: 2PIN JST
• Cable length: 50mm
• Dimensions: 20.2mm diameter, 3.3mm thickness
• Weight: 3.3g

Delivery includes:
1x 64mAh RTC battery for Raspberry Pi 5 (Raspberry Pi 5 not included).
