WaveShare RS485 to Ethernet POE (B)

CHF32.–new CHF44.90
1Ratings
Delivered between Tue, 17.6. and Mon, 23.6.
Buy used from

Used offer

Condition
As good as new
WarrantyCurrent product warranty until 3/12/2027

Product details

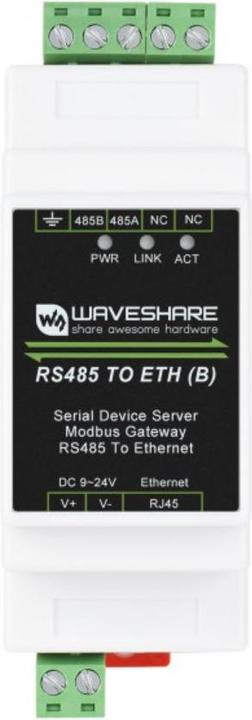

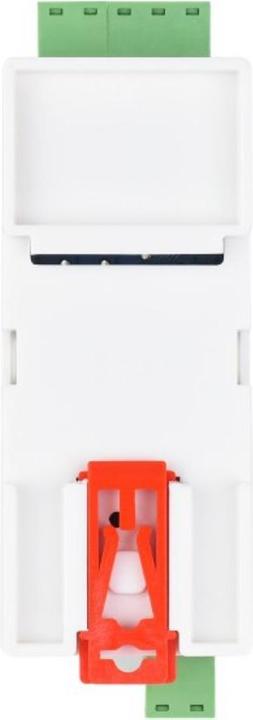

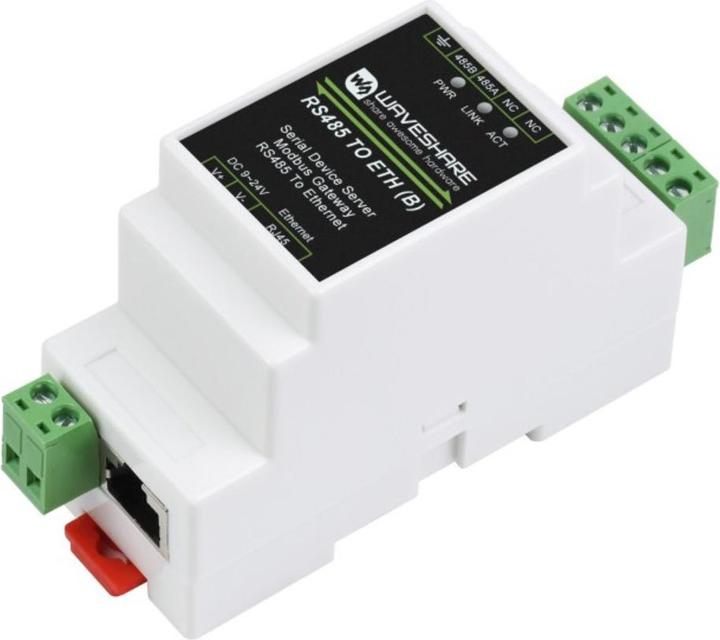

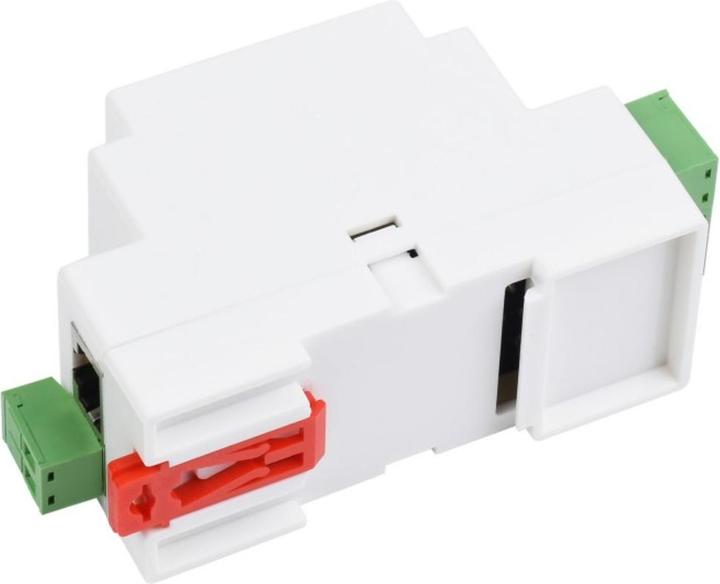

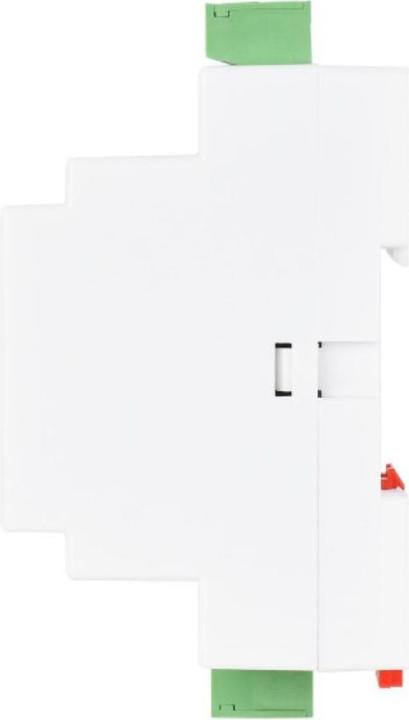

The RS485 to Ethernet converter from Waveshare is a perfect solution for connecting RS485 devices to an Ethernet network. The converter has an integrated web interface that allows easy configuration and monitoring of the devices. It also offers a high transmission speed and a reliable connection. It is a cost-effective and convenient solution for anyone who wants to connect RS485 devices to an Ethernet network.

Features:
Basic function: bi-directional transparent data transmission between RS485 and Ethernet.
PoE network connection, supports IEEE 802.3af standard
Isolation protection: Power isolation, signal isolation
Supports MQTT and JSON

Technical details:
Manufacturer: Waveshare
Manufacturer SKU: 23273
Product type: Serial server, Modbus gateway, MQTT gateway
Communication interface: RS485 port x 1, Ethernet port x 1
Power supply: 6 ~ 36V DC screw terminal, or PoE connector
Ethernet connection type: PoE network connection, supports IEEE 802.3af standard
Serial port: Isolated RS485
Serial baud rate: 300 ~ 115200 bps (bits per second)
Serial parity bits: none, odd, even, mark, space
Serial data bits: 5 ~ 9 bits
Serial stop bits: 1, 2
Serial flow control: none
Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration: Host, web browser, library with device management functions
Communication method: Direct TCP/IP communication, VCOM
Operating mode: TCP server, TCP client (coexistent with TCP server), UDP, UDP multicast
Operating temperature: -40°C to 85°C
Dimensions: 87 × 36 × 59mm
Weight: 115g

Scope of delivery
1x RS485 to Ethernet POE (B).

Key specifications

Item number
25046315

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
6.4.2023

Power supply

Power supply
PoE
Operating voltage
36 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x RS485 to Ethernet POE (B)

Product dimensions

Weight
115 g
