WaveShare RP2350-Plus Raspberry Pi Pico basierter MCU mit 4MB Flash

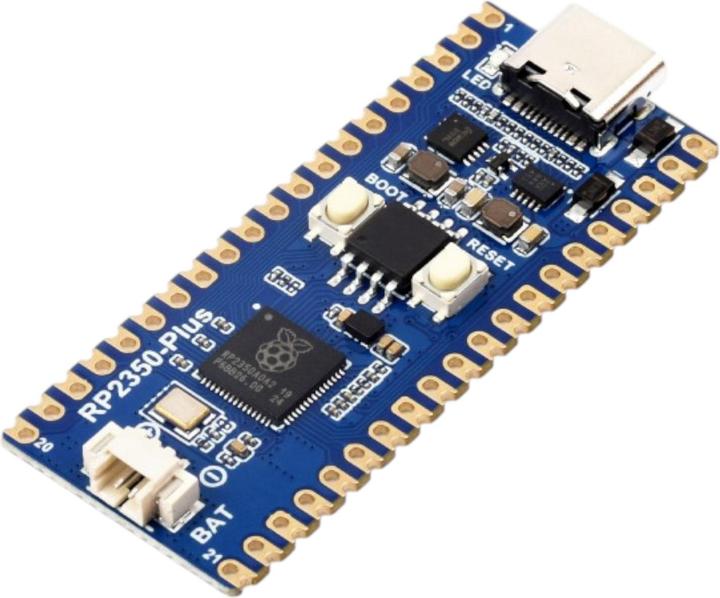

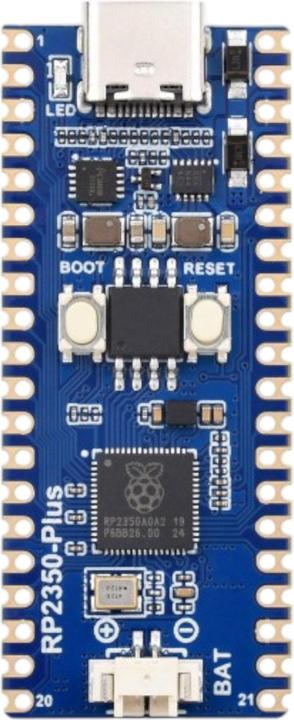

The RP2350-Plus is a powerful, cost-effective, and versatile development board based on the Raspberry Pi RP2350A. With its dual architecture design, it combines an Arm Cortex-M33 and a RISC-V Hazard3 processor, achieving clock speeds of up to 150 MHz. Thanks to the 4 MB of flash memory and 520 KB of SRAM, it is ideal for demanding IoT and embedded projects. The board features USB Type-C for modern and easy connectivity, a lithium battery connector for mobile applications, and flexible GPIO support. Designed for makers, developers, and hobbyists, it is compatible with most Raspberry Pi Pico expansion modules and offers extensive programming options in C, C++, and MicroPython.

Features:

• Powerful Processor: Dual-core architecture with Arm Cortex-M33 and Hazard3 RISC-V processors.
• Memory: Integrated 520 KB SRAM and 4 MB flash.
• Expandability: 26 multifunctional GPIO pins, 2 SPI, 2 I2C, 2 UART, and 4 12-bit ADC.
• USB Type-C: For modern connections and easy handling.
• Battery Support: Lithium battery connector for mobile applications with charging and discharging capabilities.
• Power Supply: DC-DC chip MP28164 for maximum efficiency and up to 2 A current capacity.
• Easy Programming: Drag-and-drop programming via USB with mass storage support.
• PIO Support: 12 programmable I/O state machines for custom peripheral applications.

Technical Specifications:

• Manufacturer: Waveshare
• Manufacturer SKU: 20290
• Processor: Dual-core Arm Cortex-M33 and Hazard3 RISC-V, 150 MHz.
• Memory: 520 KB SRAM, 4 MB flash.
• Connections: USB Type-C, lithium battery connector.

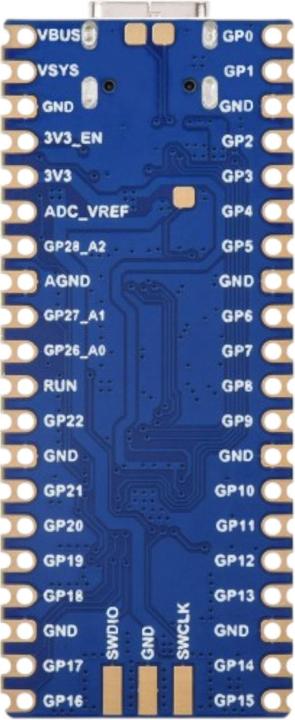

• Peripherals: 26 GPIO pins, 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 PWM channels.
• Power Supply: DC-DC MP28164 with up to 2 A capacity.
• Dimensions: 51 x 21 x 4.9 mm
• Weight: 4.9 g

Package Includes:
1 RP2350-Plus Raspberry Pi Pico based MCU with 4 MB flash.
