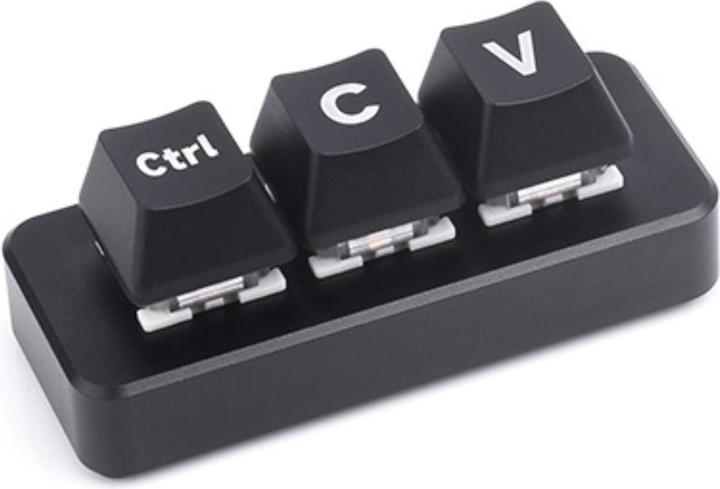

WaveShare RP2040 Shortcut Keyboard Plus with 3 keys

The RP2040-Keyboard-3 Plus from Waveshare is a practical and affordable 3-button keyboard, ideal for programmers and technology enthusiasts. Featuring an RP2040 microcontroller chip designed by Raspberry Pi in the UK, this keyboard offers a dual Arm Cortex M0+ processor architecture that allows a flexible clock speed of up to 133 MHz. It has two Type-C ports that allow easy plug-and-play without driver installation. The default function of the three buttons is "Ctrl," "C," and "V," but they can be programmed for other functions. The keys are equipped with RGB LEDs whose background color can be individually adjusted to personalize your workspace. Thanks to hot-swappable technology, the switches can be easily replaced, with dust-proof blue switches as standard providing clear tactile feedback and a mechanical feel.

Features:

• Equipped with the RP2040 microcontroller chip from Raspberry Pi.
• Dual-core Arm Cortex M0+ processor with flexible clock speed up to 133 MHz.

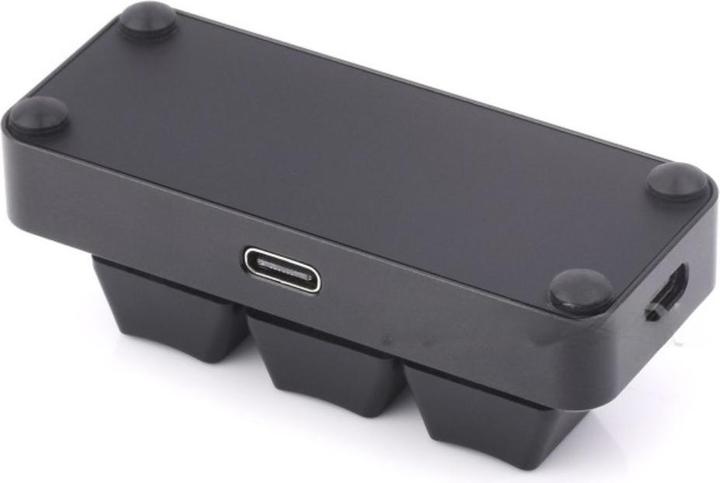

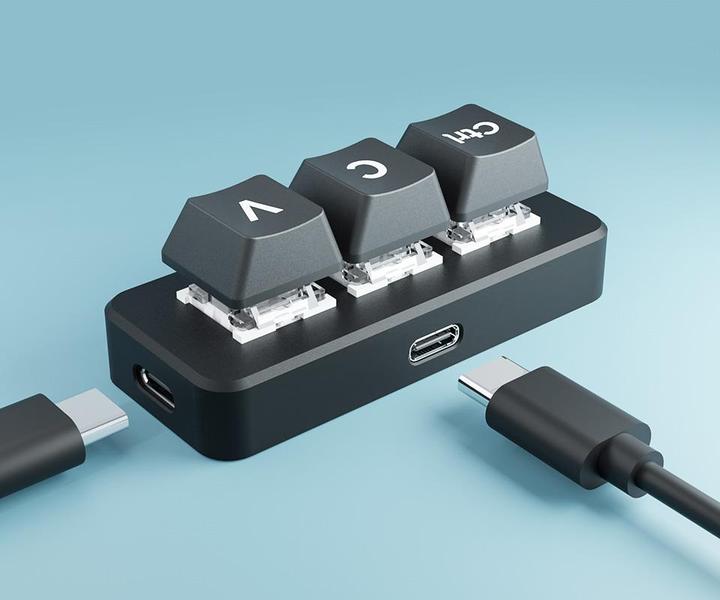

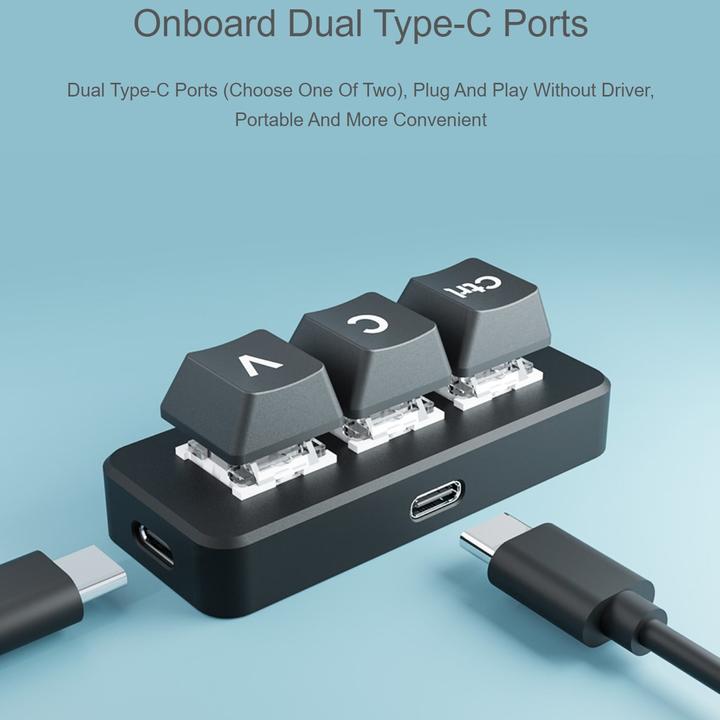

• Two Type-C ports for easy plug-and-play without drivers.
• Programmed as standard for "Ctrl," "C," and "V" with the option of reprogramming.
• RGB LEDs for customized backlighting.
• Hot-swappable technology makes it easy to replace the switches.
• Dustproof blue switches for improved tactile feedback.

Application examples:

• Ideal for software development, office work, design, and editing.
• Improves programming efficiency with quick access to frequently used commands.
• Customizable key functions support individual workflows.

Technical data:

• Manufacturer: Waveshare
• Manufacturer SKU: 26462
• Material: Aluminium CNC machined
• Microcontroller: RP2040 from Raspberry Pi
• Processor: Dual-core Arm Cortex M0+
• Clock rate: Up to 133 MHz
• Connectors: Dual Type-C
• Buttons: 3, programmable
• Lighting: RGB LEDs
• Switches: Dustproof blue switches

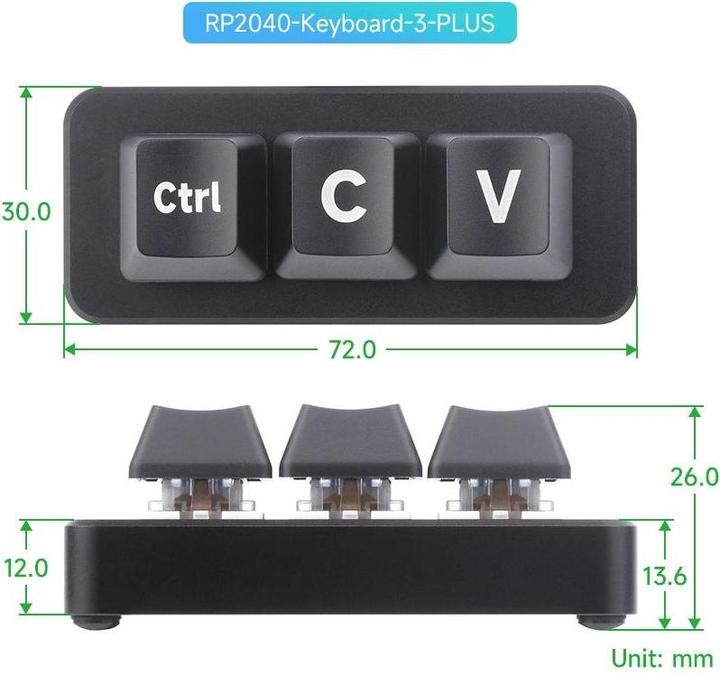

• Dimension: 72 x 30 x 26 mm
• Weight: 43.3 g

Scope of delivery:

• 1x RP2040 shortcut keyboard with 3 keys
• 3x double layer black keys.
