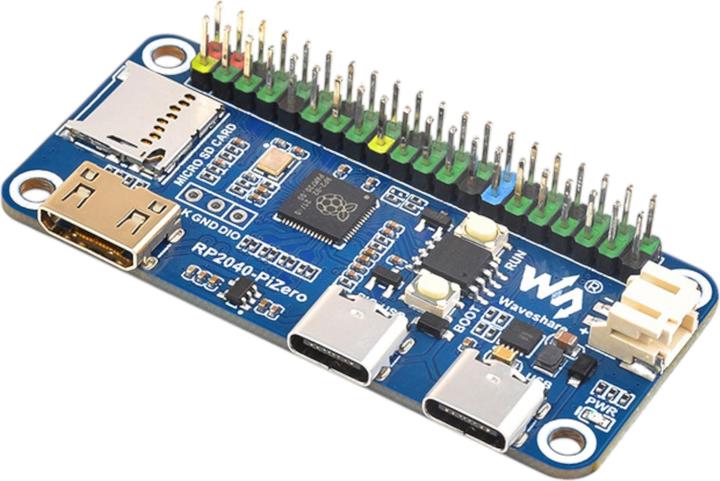

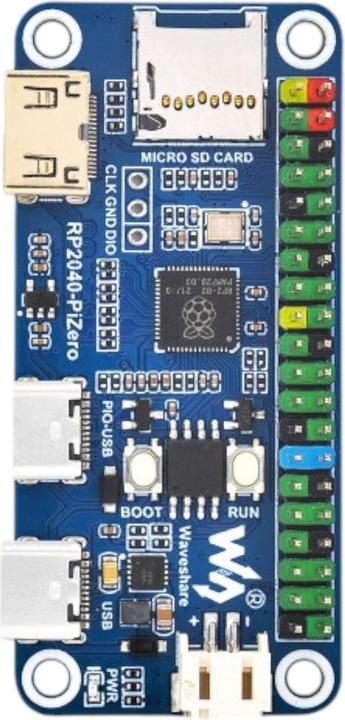

WaveShare RP2040-PiZero Entwicklungsboard 264KB SRAM und 16MB Flash

The RP2040-PiZero is a powerful and cost-effective microcontroller development board based on the RP2040 dual-core processor from Raspberry Pi. With 264 KB of SRAM and 16 MB of flash memory, it offers ample capacity for demanding applications. The board supports a clock frequency of up to 133 MHz and features a variety of interfaces, including SPI, I²C, UART, ADC, and PWM. Thanks to the mini-HDMI interface (DVI), it can even drive displays. A PIO-USB interface allows it to be used as a USB host or slave. Additionally, there is a microSD card slot that provides extra storage space. With low power consumption, drag-and-drop programming, and support for C, MicroPython, and Arduino, this board is perfect for makers, developers, and IoT projects. Its 40-pin GPIO header ensures compatibility with Raspberry Pi expansions.

Technical specifications:
Manufacturer: Waveshare
Manufacturer SKU: 25506
Processor: RP2040 Dual-Core ARM Cortex-M0+
Clock frequency: Up to 133 MHz
Memory: 264 KB SRAM, 16 MB Flash
Interfaces: Mini-HDMI (DVI), PIO-USB, MicroSD slot
Communication: 2× SPI, 2× I²C, 2× UART, 4× 12-bit ADC, 16× PWM
Additional features: 8× PIO controllers, battery connection, drag-and-drop programming
Power supply: 3.3 V / USB-C

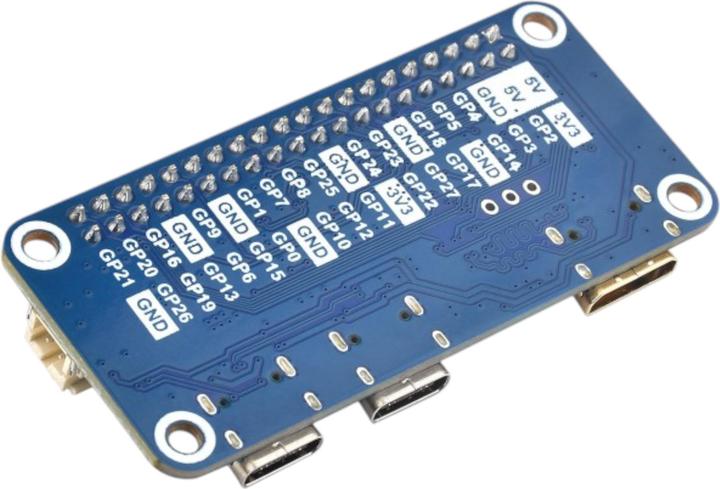

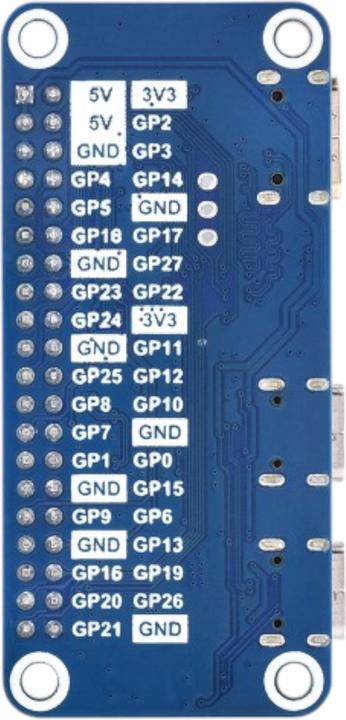

Compatibility: Raspberry Pi HATs via 40-pin GPIO
Operating systems: Supports MicroPython, C/C++, Arduino
Dimensions: 65 x 30 x 11.5 mm
Weight: 14 g

Included in delivery:
1x RP2040-PiZero development board with 264 KB SRAM and 16 MB flash.
