WaveShare RP2040-LCD Raspberry Pi Pico based MCU with LCD screen

1Ratings
BrandMore from WaveShare
Delivered between Tue, 8.7. and Wed, 9.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

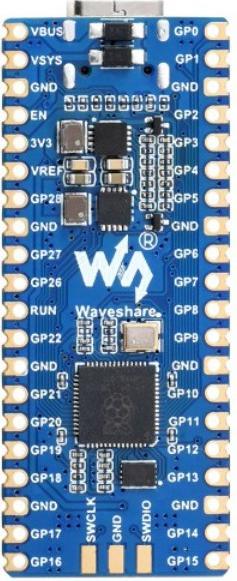

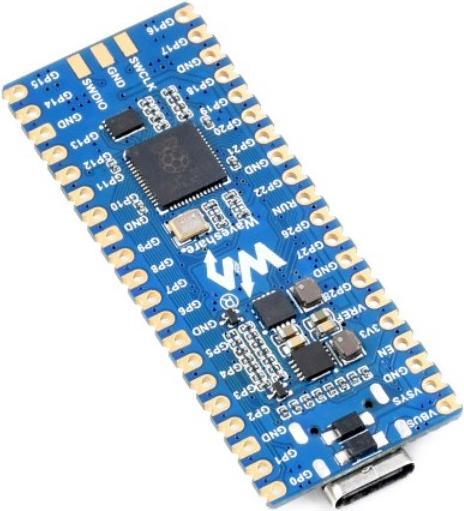

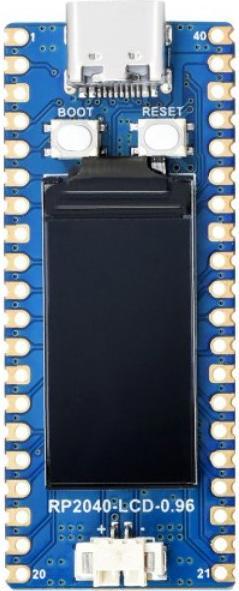

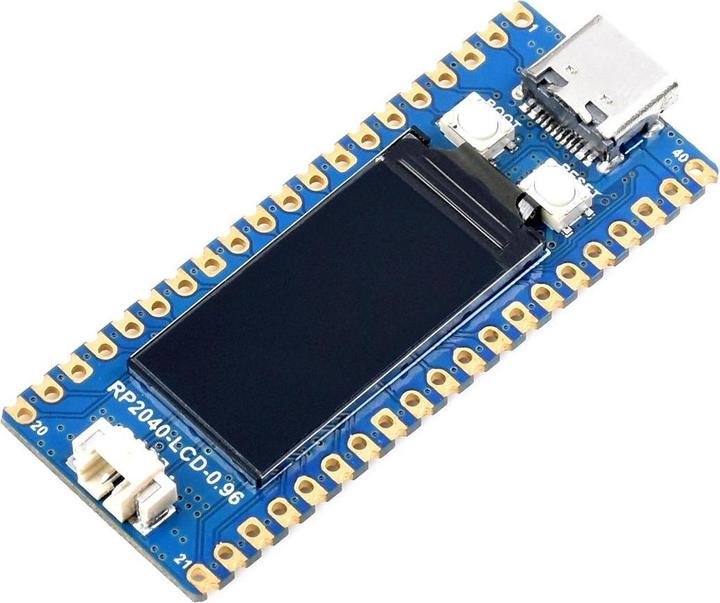

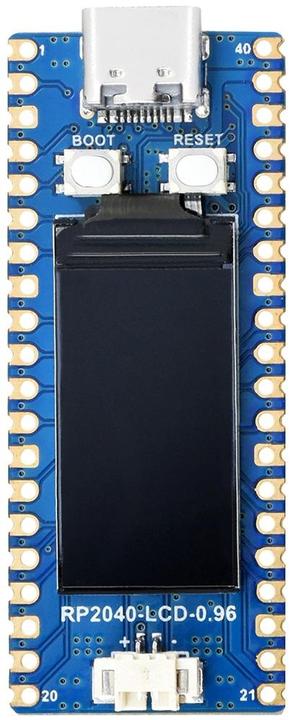

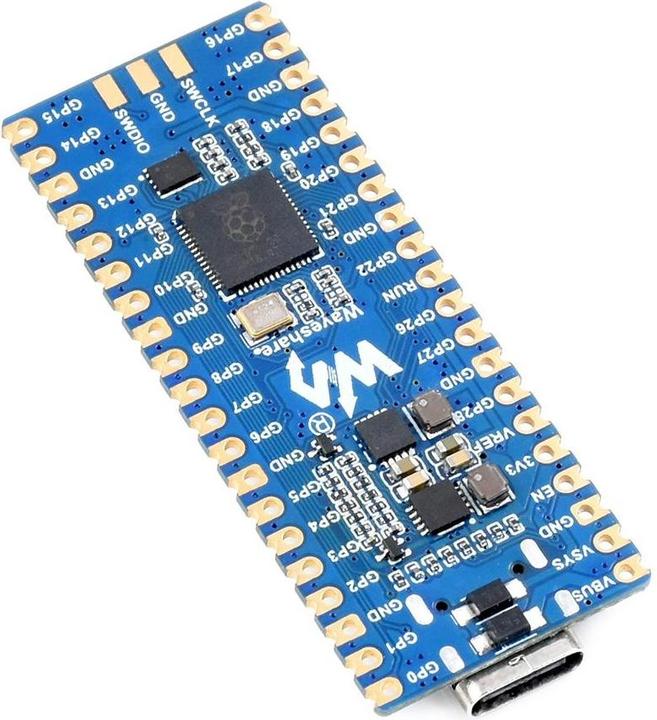

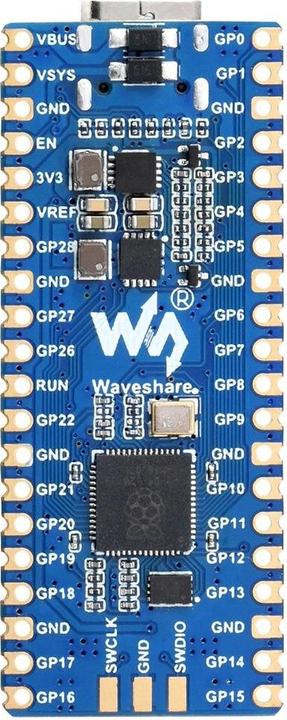

This is a version of the Raspberry Pi Pico with an integrated 0.96inch LCD screen from Waveshare. The board uses the same RP2040 microcontroller chip as the Raspberry Pi Pico. In addition, the board has a Lipo battery connector and the Micro-USB interface of the Pico is replaced with USB-C.
The RP2040 features a dual-core Arm Cortex-M0+ processor with 264KB of internal RAM and support for up to 16MB of off-chip flash. A wide range of flexible I/O options includes I2C, SPI and programmable I/O (PIO).It is suitable for beginners and experts alike. Programmable in C and MicroPython, the RP2040 adapts to a wide range of applications and capability levels, and getting started has never been easier.

Recommended accessories:
LiPo Battery 1000mAh JST 1.25 / Lithium Ion Polymer for LoRa TTGO

Features:
USB-C
Lipo battery connector JST 1.25mm (simultaneous charging and power supply)
0.96inch 160x80 IPS LCD display
Dual-Core Arm Processor 133MHz
246KB RAM
2MB OnBoard Flash
26 × multifunction GPIO pins
Programmable with C/C++ and MicroPython

Technical details:
Manufacturer: Waveshare
Manufacturer SKU: 20330
Display size: 0.96inch
Display Resolution: 160x80
Display Technology : IPS LCD
MCU : RP2040
Processor : Arm Cortex-M0+
Clock frequency: max 133 MHz
Memory: 2MB Flash 246KB RAM
I/O: 26x multifunction GPIO pins
2x SPI
2x I2C
2x UART
4x 12-bit ADC
16x PWM
Voltage: 1.8-5.5V
Additional functions: Clock and timer, temperature sensor and battery connection
Operating temperature: -20°C to 85°C

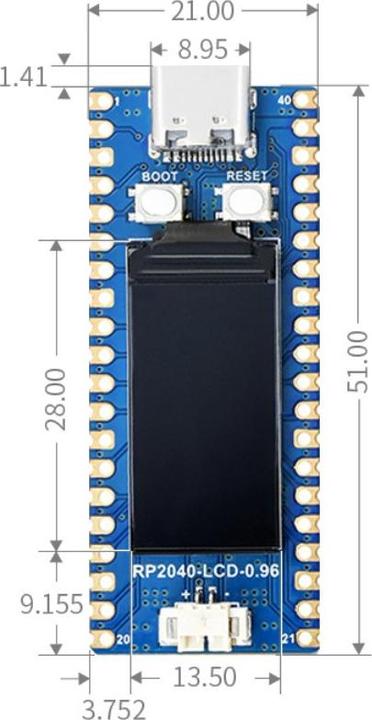

Dimensions: 51 x 21 x 4.9mm
Weight: 11g

Scope of delivery:
1x RP2040-LCD Raspberry Pi Pico based MCU with LCD screen.

Key specifications

Development board type
Board
Memory
0.25 MB
Processor family
ARM
Clock speed
133 MHz
Item number
25034261

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
5.4.2023

Development board properties

Development board type
Board
Processor family
ARM
Clock speed
133 MHz
Memory
0.25 MB
Flash memory
246 kB

Power supply

Operating voltage
5.50 V

Connections

USB ports
USB-C
Number of I/O
26

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x RP2040-LCD Raspberry Pi Pico based MCU with LCD screen

Product dimensions

Length
21 mm
Width
51 mm
Height
4.90 mm
Weight
11 g
