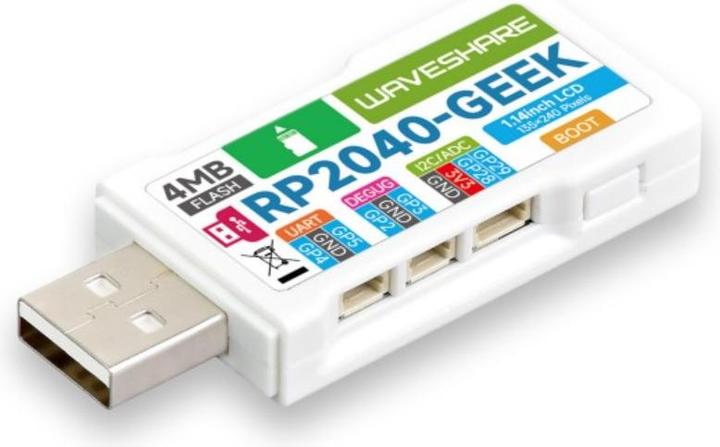

WaveShare RP2040 GEEK development board with 1.14 inch display

The Waveshare RP2040-GEEK development board is an excellent choice for hobbyists and developers. This board, designed by Waveshare, is equipped with an RP2040 microcontroller from Raspberry Pi. With a dual-core ARM Cortex M0+ processor operating at up to 133 MHz, this board offers impressive performance and flexibility for your projects. It has 264 KB of SRAM and 4 MB of onboard flash memory, providing enough memory for most applications. The highlight of this board is the 1.14-inch, 65K colour IPS LCD display, which provides a clear and colourful display of your project data. In addition, the board offers a variety of peripherals and interfaces such as a USB-A connector, a TF card slot, a 3-PIN SWD port for debugging purposes, a 3-PIN USB to UART jumper, and a 4-PIN I2C port. The open firmware makes upgrading and customisation easy, and the included white plastic case protects your board during use.

Features:

• RP2040 microcontroller from Raspberry Pi
• Open firmware for easy upgrades
• Integrated 3-PIN SWD port
• Standard CMSIS-DAP interface
• Supports OpenOCD and CMSIS-DAP tools
• Raspberry Pi 3-PIN debug specification
• Integrated 3-PIN USB-UART bridge
• Integrated 4-PIN I2C port
• 1.14 inch IPS colour display (240x135)

Technical details:

• Manufacturer: Waveshare
• Manufacturer SKU: 25394
• Microcontroller: RP2040
• Processor: Dual-Core ARM Cortex M0+
• Processor clock rate: 133 MHz
• SRAM: 264 KB
• Flash memory: 4 MB
• Display type: Colour IPS LCD
• Diagonal: 1.14 inch
• Colours: 65K
• Resolution: 240x135 pixels

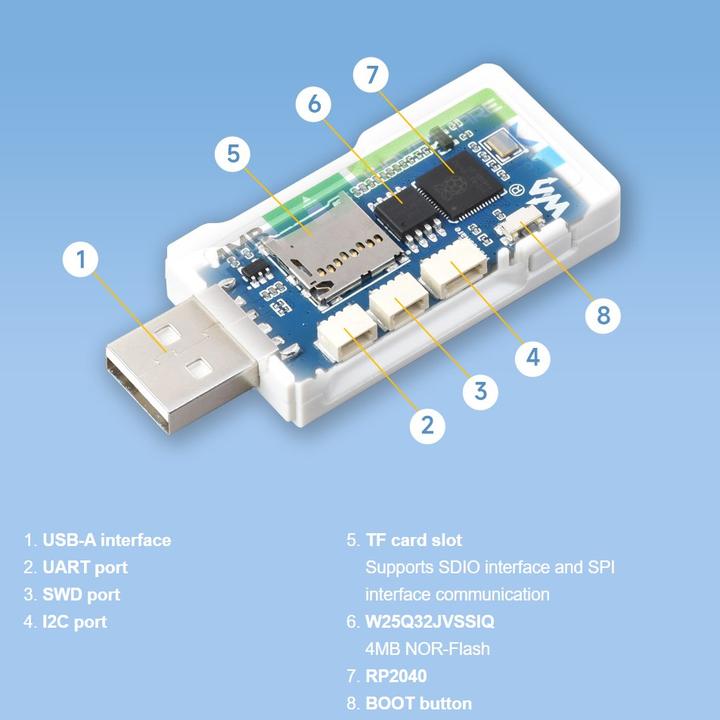

• Interfaces: USB-A, TF card slot, 3-PIN SWD port, 3-PIN USB to UART bridge, 4-PIN I2C port

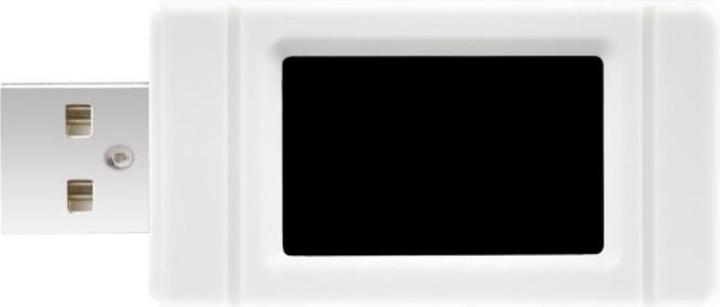

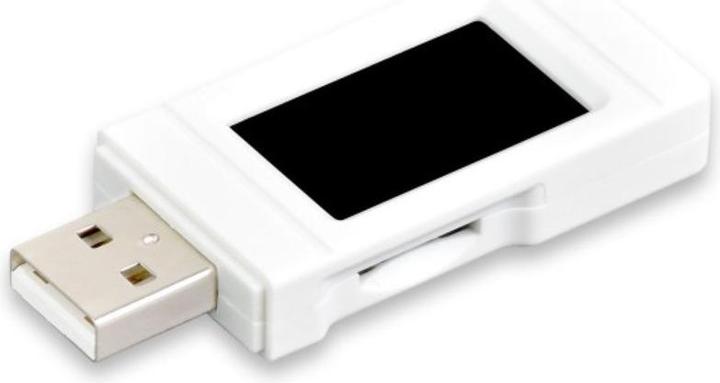

• Housing: White plastic housing
• Dimensions: 61 x 24.5 x 9 mm
• Weight: 36.7 g

Included in delivery:

• 1x Waveshare RP2040 GEEK development board with 1.14 inch display
• 1x 4-PIN JST to female DuPont cable
• 2x 3-PIN JST to female DuPont cable
• 1x 2-PIN JST to female DuPont cable.
