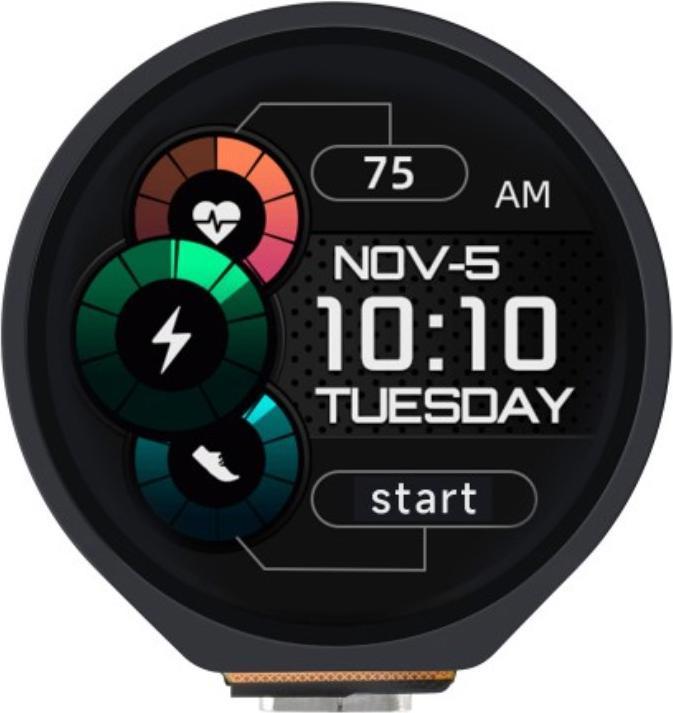

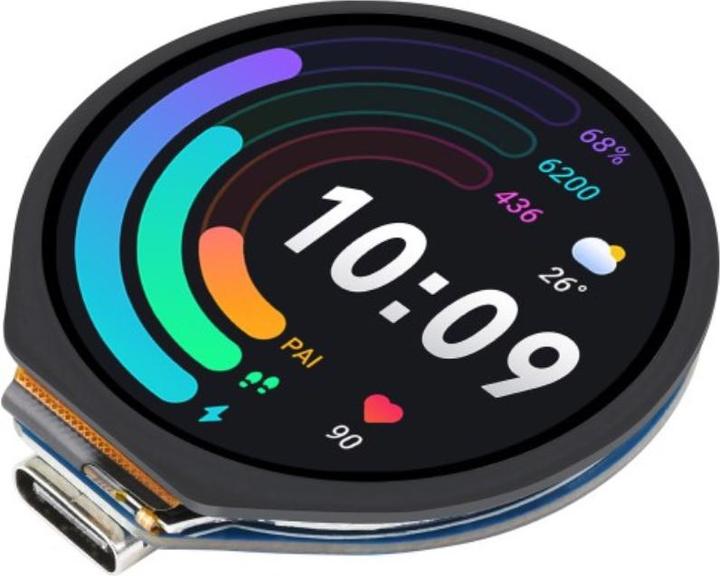

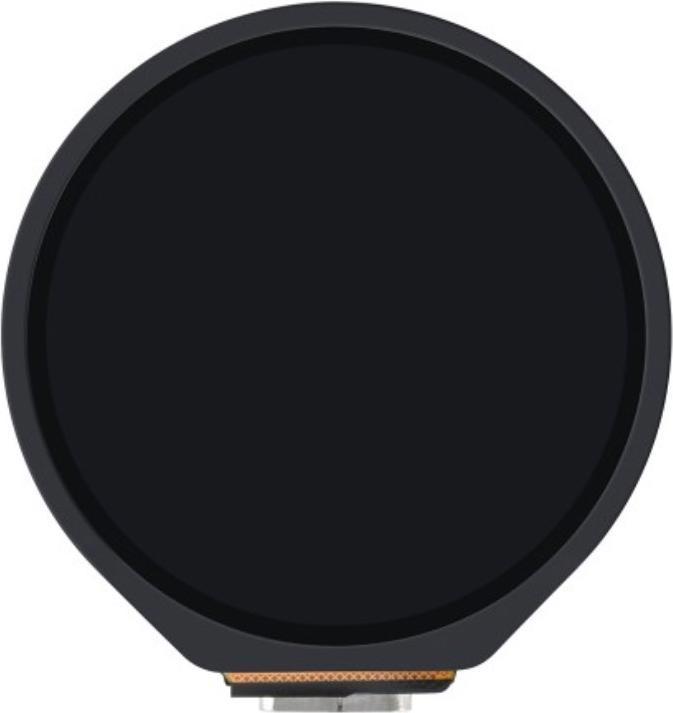

WaveShare RP2040 1.28inch Touch LCD Display Round

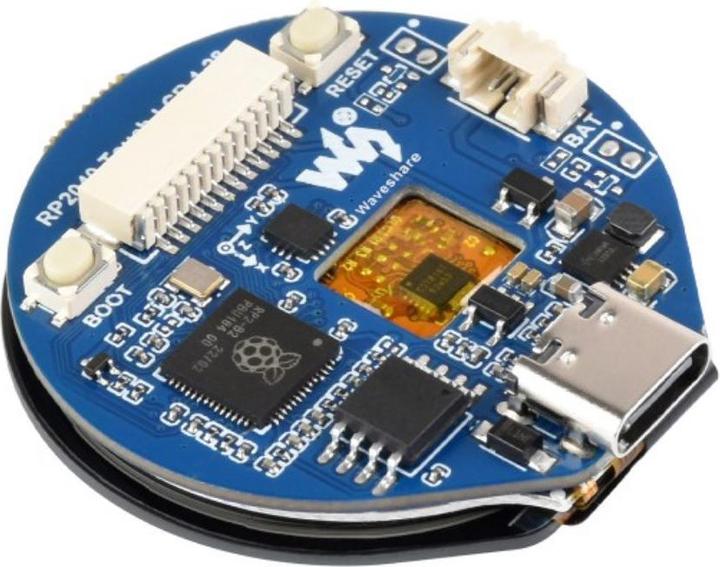

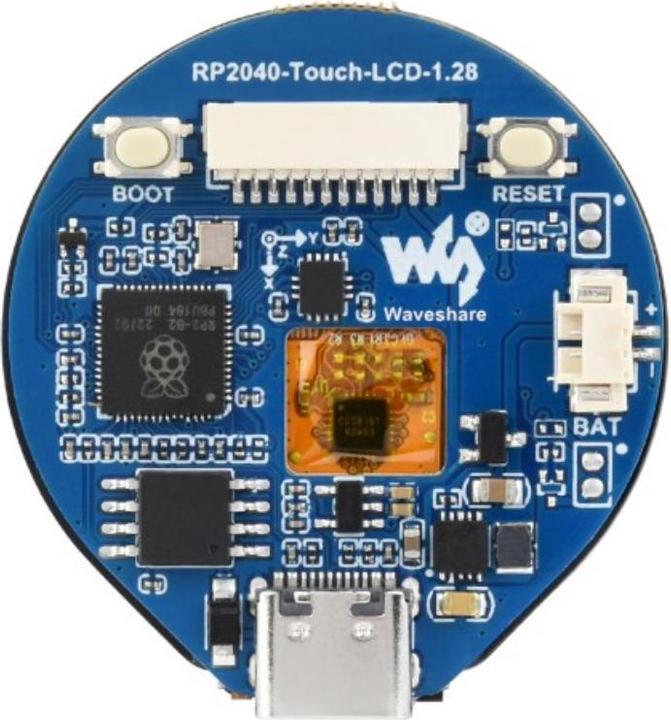

The RP2040 Touch-LCD 1.28 from Waveshare is a compact device featuring an integrated capacitive 1.28-inch touch display, a Li-ion battery charge manager, and a 6-axis sensor (3-axis accelerometer and 3-axis gyroscope). The board can be programmed via the integrated USB port using MicroPython, Arduino, or Pico C/C++ SDK, making it ideal for wearables and other portable devices.

Features:

• RP2040 microcontroller
• Lithium battery charge/discharge chip suitable for mobile devices
• USB 1.1 with device and host support
• Power-saving sleep and hibernation mode
• Drag-and-drop programming with mass storage via USB
• Precise clock and timer on chip
• Temperature sensor
• Round 1.28-inch color touch display
• Built-in QMI8658 3-axis accelerometer and 3-axis gyroscope

Technical details:

• Manufacturer: Waveshare
• Manufacturer SKU: 24580
• Microcontroller: RP2040
• CPU: Dual-core ARM Cortex M0+
• CPU clock: Up to 133MHz
• SRAM: 264MB
• Flash memory: 4MB
• Connections: 1x USB Type-C, 1x SH1.0
• Touch chip: CST816S
• Touch interface: I2C
• Display chip: GC9A01A
• Display type: IPS
• Display interface: SPI
• Display color: 65K RGB
• Resolution: 240 x 240 pixels (RGB)
• Pixel pitch: 0.135 x 0.135mm
• Display dimensions: Φ32.4mm
• IMU sensor: QMI8658C
• Accelerometer:
• Resolution: 16 bits
• Measuring range (optional): ±2, ±4, ±8, ±16g
• Gyroscope:
• Resolution: 16 bits
• Measuring range (optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec
• Supported programming languages: MicroPython, Arduino, Pico C/C++ SDK
• Dimensions: 40.8 x 38.5 x 8.3mm
• Weight: 22g

Included in delivery:

• 1x RP2040 1.28-inch Touch LCD Display Round
• 1x 12Pin SH1.0 to Female Dupont Cable 20cm.
