WaveShare Raspberry Pi 8-Channel Relay Module Expansion Board

1Ratings
BrandMore from WaveShare
Delivered between Thu, 3.7. and Fri, 4.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

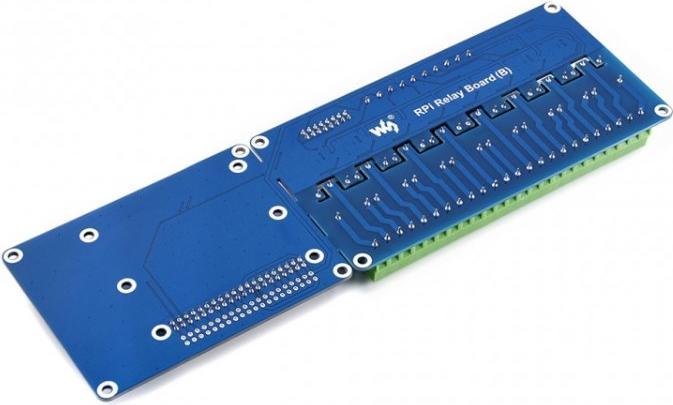

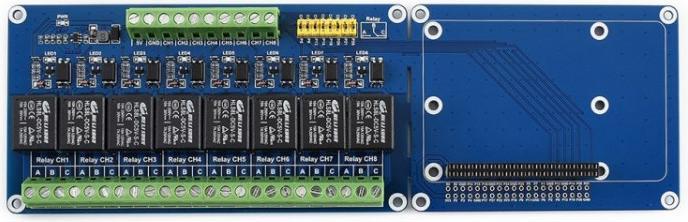

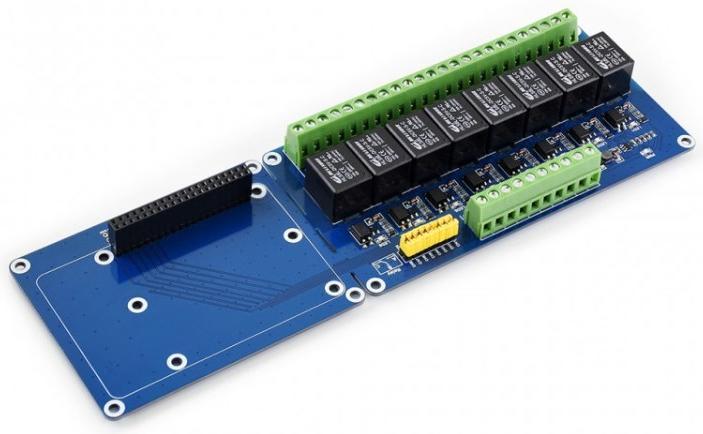

The RPi Relay Board by Waveshare is an expansion board with 8-channel relay for Raspberry Pi. With the relay board you can control 12V water valves to realise an automatic irrigation. You can also control other consumers up to a current of 5A.
For safety reasons, we recommend that you only operate the relays up to 30V.

Properties Raspberry Pi relay card:
Compatible Raspberry Pi A+/B+/2B/3B/3B++/4B/4B+.
High quality relays for switching loads up to 5A 250V AC or 5A 30V DC
Optocoupler for optimal protection of the Raspberry

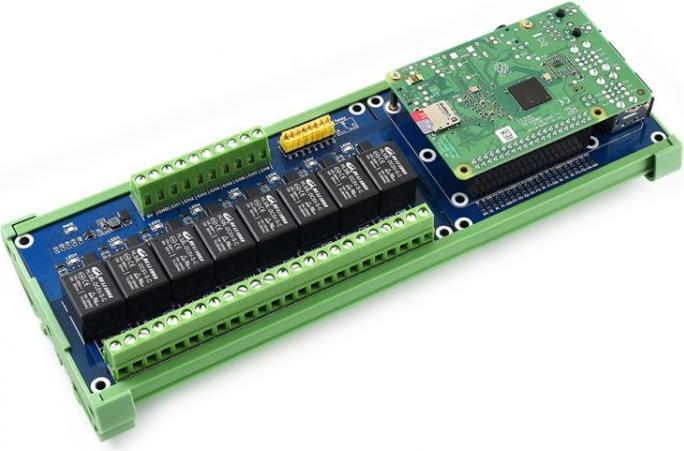

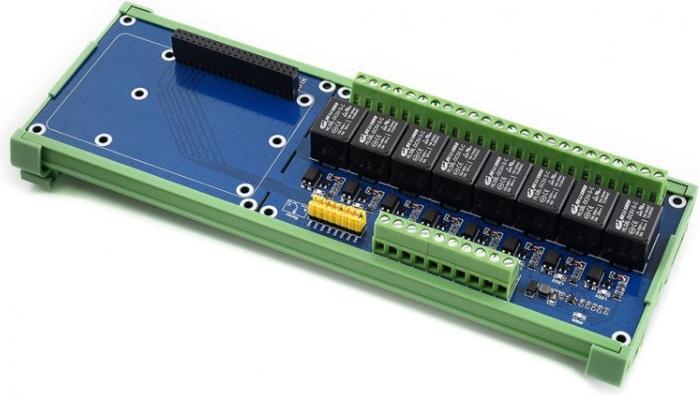

Standard DIN rail mounting
Onboard LEDs to indicate relay status
Jumper for relay control pin selection, allows relays to be controlled by user defined pins other than the standard pins.
Reserved control interface, allows you to work with controllers such as PLCs
Program examples for wiringPi, bcm2835, python, python-bottle (web page control) and crontab (cron job).

Technical details:
Supply voltage: 5V
Logic voltage: 3.3V/5V
Number of relays: 8
Control current: 6mA (per channel)
Connection: screw terminal strip
Diameter of mounting holes: 3.0mm
Dimension: 232 × 72 mm
Weight: 285g

Scope of delivery:
1x Raspberry Pi 8-channel relay module expansion board
1x DIN rail bracket
1x screw material.

Key specifications

Development board type
Board
Item number
25401138

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
28.4.2023

Development board properties

Development board type
Board

Power supply

Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x DIN rail bracket, 1x Raspberry Pi 8-channel relay module expansion board, 1x screw material

Product dimensions

Weight
285 g
