WaveShare Raspberry Pi 5 POE Power over Ethernet HAT (F)

Ratings
Delivered between Fri, 30.5. and Mon, 2.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

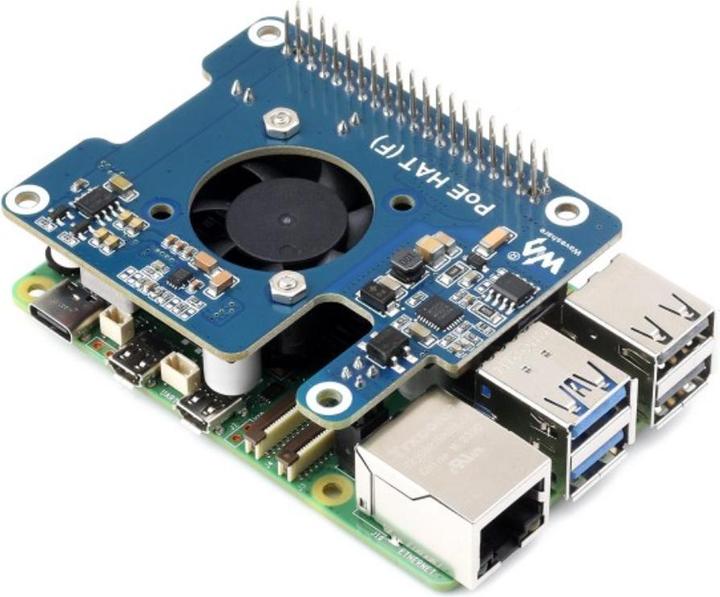

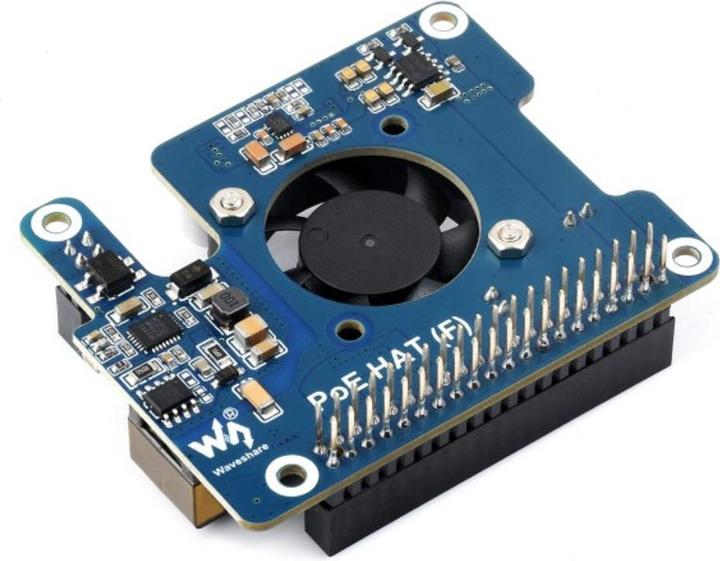

Discover the ideal way to power and network your Raspberry Pi 5 all via a single cable. The Raspberry Pi 5 POE Power over Ethernet HAT (F) is a high-quality solution that supports the 802.3af/at networking standard and provides a robust, isolated power supply. This small HAT allows you to power your Raspberry Pi 5 efficiently while maintaining a stable network connection. Equipped with an onboard active cooling fan and a metal heat sink, this product ensures optimal heat dissipation and stable performance even during intensive operation. The standard 40-pin GPIO header from Raspberry Pi is also available, allowing additional HATs to be easily added. This device is specifically designed for the Raspberry Pi 5 and offers both 5V with up to 4.5A and 12V with up to 2A output power. Easy installation with included thermal pads and metal heatsink makes setup a breeze.

Recommended accessories:

  • Ethernet cable
  • Raspberry Pi 5

Features:

  • Supports the 802.3af/at network standard.
  • Provides isolated power supply with efficient heat dissipation.

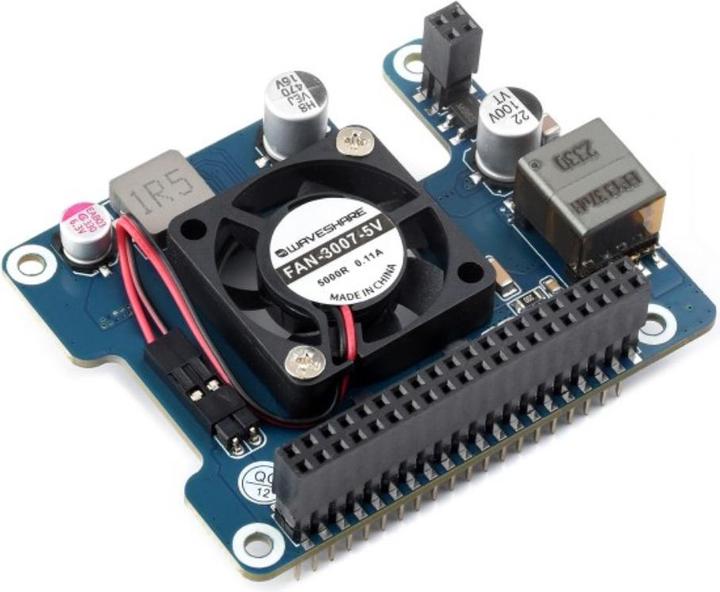

  • Includes an active cooling fan and metal heatsink.
  • Standard 40-pin GPIO header, compatible with Raspberry Pi 5.
  • Output of 5V 4.5A and 12V 2A for additional peripherals.
  • Robust construction and reliable performance.
  • Quick and easy installation.

Application examples:

  • Ideal for projects that require a stable and secure power supply.
  • Perfect for use in network projects with Raspberry Pi.
  • Suitable for educational projects that require the use of additional hardware alongside the Raspberry Pi.
  • Use in IoT and home automation projects.

Technical data:

  • Manufacturer: Waveshare
  • Manufacturer SKU: 26399
  • Input voltage (POE): 37V to 57V DC
  • Output voltage: 5V 4.5A (max) via GPIO header, 12V 2A (max) via 2P header
  • Network standard: IEEE 802.3af/at PoE
  • Dimensions: 56.5 × 70 x 23mm
  • Weight: 80.2g

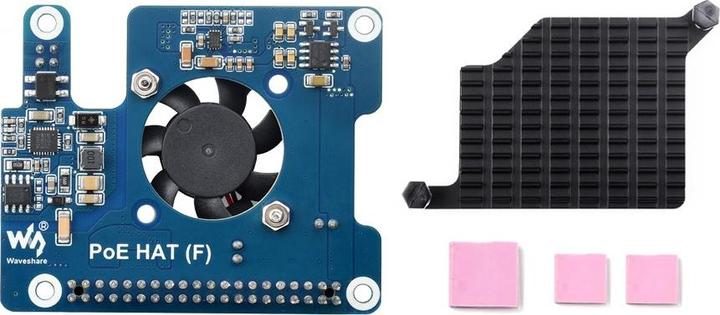

Scope of delivery:

  • 1x Raspberry Pi 5 POE Power over Ethernet HAT (F) (Raspberry Pi 5 not included)

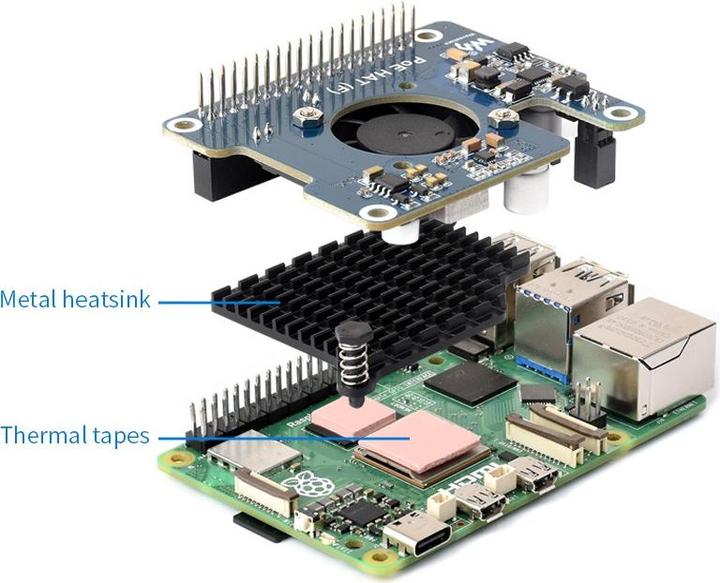

  • 1x metal heat sink
  • 3x thermal pads.

Key specifications

Item number
45371211

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Manufacturer no.
WS-26399
Release date
1.5.2024
Sales rank in Category Development boards + Kits
91 of 2753

Power supply

Power supply
PoE
Operating voltage
57 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x metal heat sink, 1x Raspberry Pi 5 POE Power over Ethernet HAT (F), 3x thermal pads
Additionally required (not included)
Ethernet cable, Raspberry Pi 5

Product dimensions

Length
70 mm
Width
56.50 mm
Height
23 mm
Weight
80.20 g

30-day right of return
24 Months Warranty (Bring-in)
