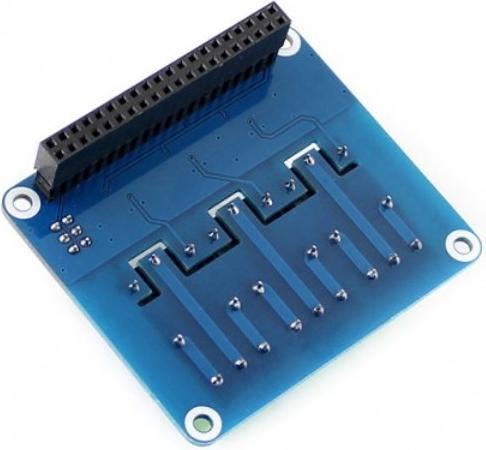

WaveShare Raspberry Pi 3-Channel Relay Module Expansion Board

Ratings
Delivered between Tue, 13.5. and Wed, 14.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

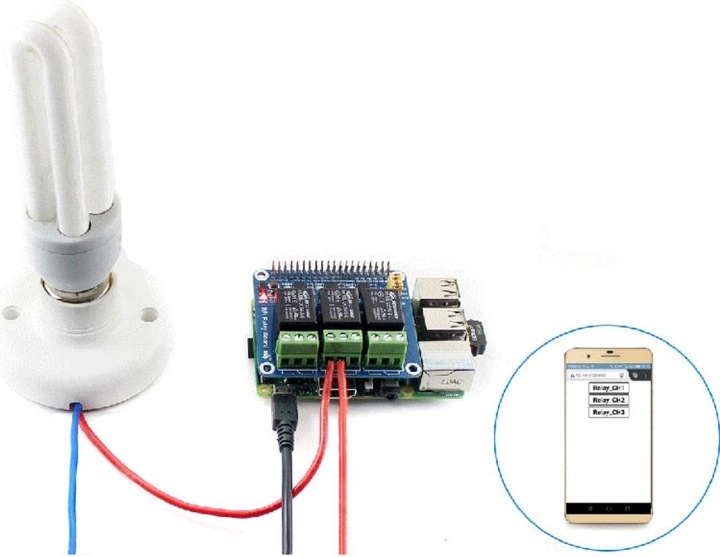

The RPi Relay Board from Waveshare is an expansion board with 3-channel relays for Raspberry Pi. With this relay board, you can control 12V water valves to implement automatic irrigation. You can also control other devices with a current of up to 5A. For safety reasons, we recommend operating the relays at no more than 30V.

Features of the Raspberry Pi Relay HAT:

  • Compatible with Raspberry Pi A+/B+/2B/3B/3B+/3B++/4B/4B+
  • High-quality relays for switching loads up to 5A 250V AC or 5A 30V DC
  • Optocoupler for optimal protection of the Raspberry Pi
  • Onboard LEDs to indicate relay status
  • Jumper for selecting relay control pins, allowing control of the relays through custom pins that differ from the standard pins
  • Reserved control interface, enabling operation with controllers such as PLCs
  • Programming examples for wiringPi, bcm2835, and Python

Technical Details:

  • Supply Voltage: 5V
  • Logic Voltage: 3.3V
  • Number of Relays: 3
  • Control Current: 6mA (per channel)
  • Connection: Screw terminal
  • Diameter of Mounting Holes: 3.0mm
  • Dimensions: 232 × 72 mm
  • Weight: 70g

Included in Delivery:
1x Raspberry Pi 3-Channel Relay Module Expansion Board
1x Screw material.
