WaveShare Power over Ethernet (PoE) HAT with OLED Display for Raspberry Pi 4B & 3B+

3Ratings
Delivered between Thu, 5.6. and Fri, 6.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

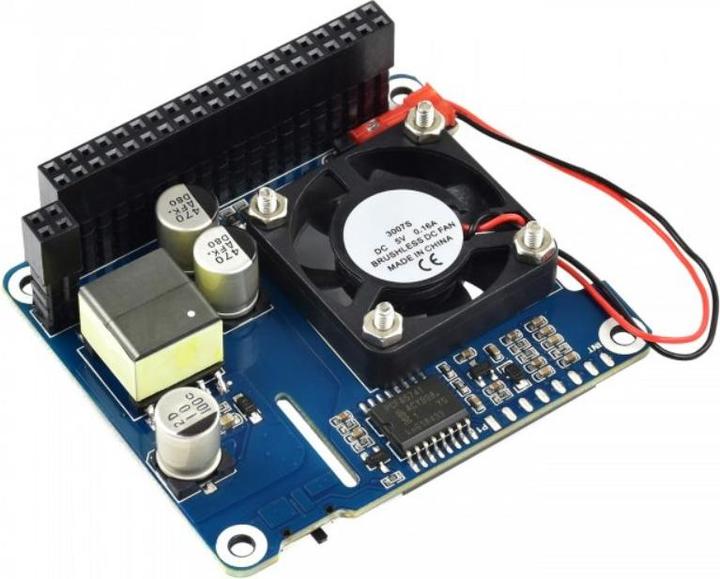

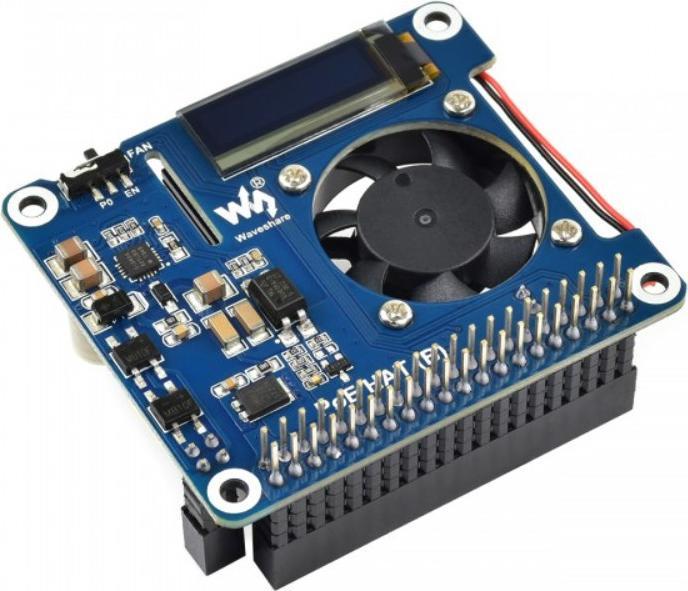

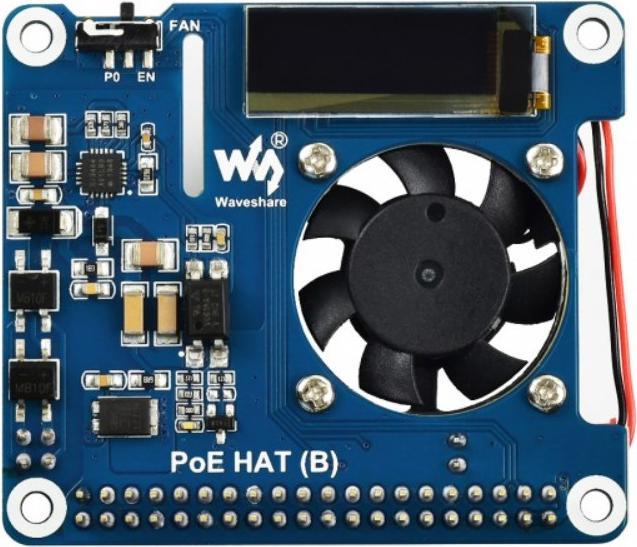

The PoE HAT (B) is an 802.3af compliant Power-over-Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and suitable 802.3af compatible power supply units, it is possible to provide both network connectivity and power to your Raspberry Pi through a single Ethernet cable. The Waveshare PoE HAT is designed to allow another HAT to be stacked on top. The small OLED display can show current statuses such as IP address, temperature, and fan status in real-time.

Features of the Waveshare PoE Power over Ethernet HAT B:

  • Standard Raspberry Pi 40 Pin GPIO header, supports Raspberry Pi 3B+/4B
  • PoE (Power over Ethernet) compatible, 802.3af compliant
  • Fully isolated switch-mode power supply (SMPS)

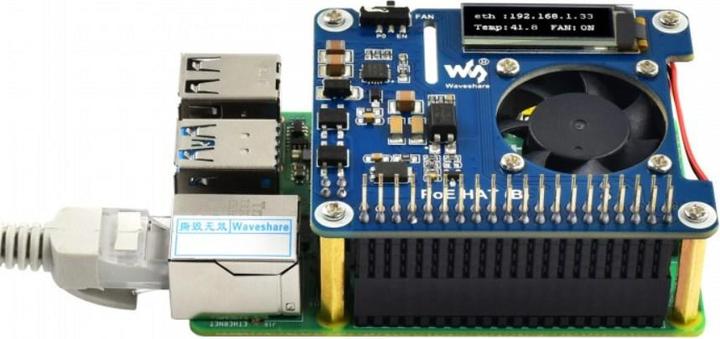

  • 0.91 inch OLED display for monitoring processor temperature, IP address, and fan status in real-time

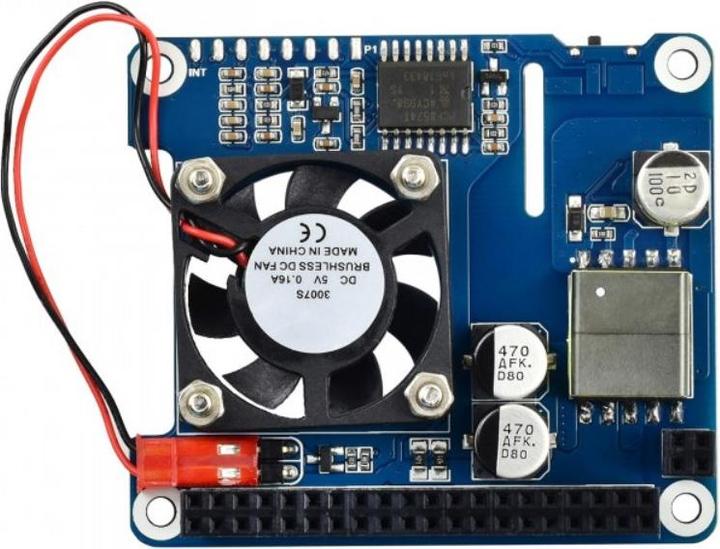

  • Onboard fan, allows automatic operation upon power-up or programmable control, configurable via a switch
  • Integrated IO expander PCF8574 for I2C bus, with pin P0 for direct fan control and additional IO replacement pins provided as solder pads on the side.

Technical Details:

  • Compatible with Raspberry Pi 3B+/4B
  • PoE power input voltage: 37V to 57VDC
  • PoE power output voltage: 5V 2.5A
  • Network standard: 802.3af PoE
  • OLED display
  • Size: 0.91 inches
  • Resolution: 128 x 32 pixels
  • Color: White
  • Driver chip: SSD1306
  • Dimensions: 56.5 x 65 mm
  • Weight: 95 g

Package Includes:
1x PoE Power over Ethernet HAT B for Raspberry Pi with display.

Key specifications

Item number
25006599

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Manufacturer no.
PoE HAT (B)
Release date
3.4.2023
Sales rank in Category Development boards + Kits
236 of 2758

Power supply

Power supply
PoE
Operating voltage
37 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x POE Power over Ethernet HAT B for Raspberry Pi with display

Product dimensions

Length
56.50 mm
Width
56.50 mm
Height
65 mm
Weight
95 g

30-day right of return
24 Months Warranty (Bring-in)
