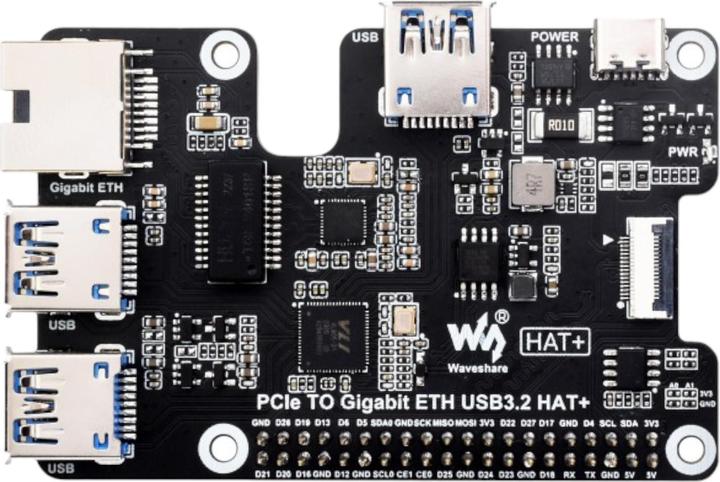

WaveShare PCIe to Gigabit ETH USB3.2 HAT+ for Raspberry Pi5

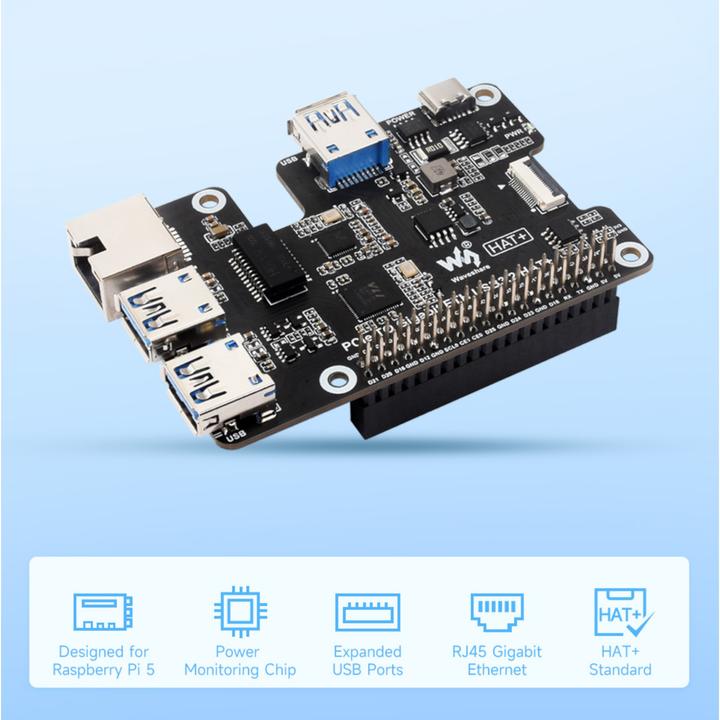

The PCIe to Gigabit Ethernet and USB 3.2 Gen1 HAT+ for Raspberry Pi 5 from WaveShare is a powerful expansion for the popular single-board computer. This development board allows users to expand the Raspberry Pi 5 with three high-speed USB 3.2 Gen1 ports and a Gigabit Ethernet port. With this expansion, users can connect a variety of peripherals and benefit from fast network speeds. The HAT is driver-free and offers plug-and-play functionality, making installation and use particularly easy. Equipped with the VL805 main controller chip and the RTL8153B Gigabit Ethernet chip, the adapter ensures stable and reliable performance. It supports various operating systems such as Raspberry Pi OS, Ubuntu, and OpenWRT, making it a versatile solution for different applications. Additionally, the HAT provides real-time power monitoring and the ability to control USB power supply via software, offering extra flexibility and control.

• Expansion with three USB 3.2 Gen1 ports for high transfer speeds
• Gigabit Ethernet port for fast and reliable network connections
• Driver-free installation for immediate use
• Real-time power monitoring to check power status
• Control of USB power supply via software possible.
