WaveShare PCIe auf 4-fach M.2 NVME Board für Raspberry Pi5

With this powerful adapter, you can use up to four NVMe SSDs simultaneously with your Raspberry Pi 5. The PCIe to 4x M.2 NVMe board is specifically designed for high data rates and professional applications. It connects directly to your Pi 5 via the 16-pin PCIe interface, providing a significant performance boost for storage access. The adapter exclusively supports M.2 M-Key SSDs with NVMe protocol and allows booting directly from one of these SSDs, replacing the slow microSD card with ultra-fast storage. Thanks to the supported formats 2230, 2242, 2260, and 2280, there is a wide selection of compatible SSDs. Power can be supplied either through the Raspberry Pi itself or via the integrated 7–24 V DC input, offering flexible usage options. A special highlight is the ability to power the Pi through this board with up to 5 A. Status LEDs provide a quick overview of the operational status of the connected SSDs. The board is ideal for demanding storage applications, edge computing, or network projects.

Technical Specifications:
Manufacturer: Waveshare
Manufacturer SKU: 30674
Interfaces: 4 x M.2 M-Key (NVMe SSDs only)
PCIe Version: PCIe x1 Gen2

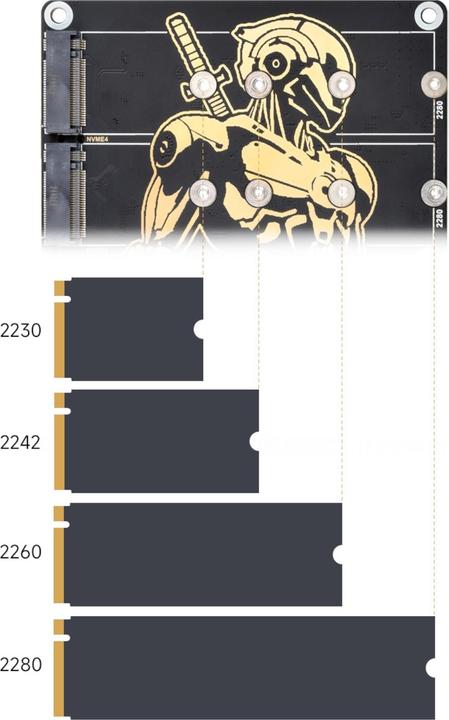

Compatible SSD Formats: 2230, 2242, 2260, 2280
Bootable: Yes, directly from NVMe SSD
Voltage Input: DC 7–24 V via DC socket
Power Output: Up to 5V 5A for Raspberry Pi via 3-pin
LED Indicators: Operational status
Connection to Pi: via 16-pin cable
Dimensions: 109 x 88 x 17 mm
Weight: 330g

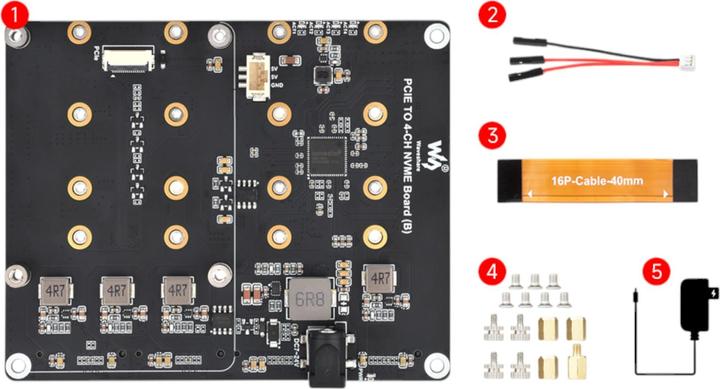

Included in Delivery:
1x PCIe to 4x M.2 NVMe board for Raspberry Pi 5
1x 16Pin cable 40mm
1x Mounting kit
1x PH2.0 3PIN cable
1x 12V power supply.
