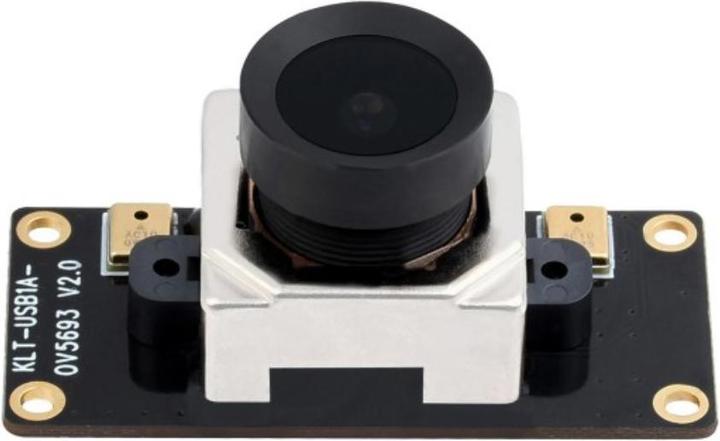

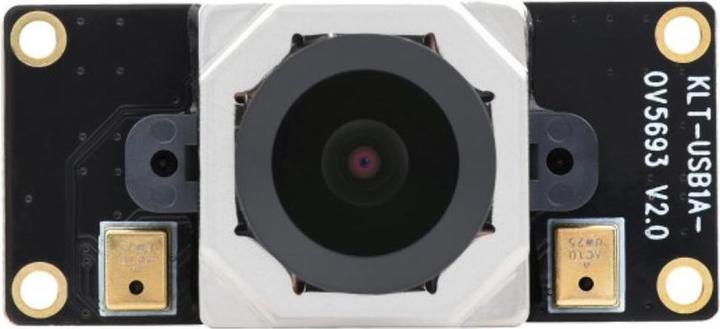

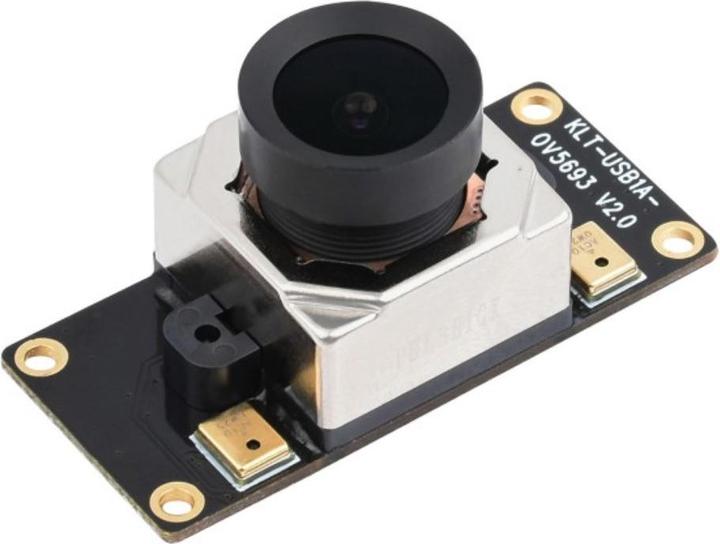

WaveShare OV5693 5MP USB Camera Camera (A)

The OV5693 5MP USB camera from Waveshare is based on the OV5693 sensor and enables high-resolution static images with a resolution of up to 2592x1944 pixels. In addition to autofocus, the camera also offers digital signal processing functions such as automatic white balance (AWB), automatic exposure control (AEC), and automatic gain control (AGC). It also supports movie mode, which allows video to be recorded in MJPG format with a resolution of up to 2592x1944 pixels and a frame rate of 15 FPS. USB support makes it easy to connect and use the camera with a computer running Windows, Linux, or macOS.

Features:

• Autofocus
• Automatic white balance (AWB)
• Automatic exposure control (AEC)
• Automatic gain control (AGC)

Technical details:

• Manufacturer: Waveshare
• Manufacturer's SKU: 24710
• Digital signal processing (DSP): Automatic white balance (AWB), automatic exposure control (AEC), automatic gain control (AGC)
• Camera:
• Pixel: 5MP
• Sensor: OV5693
• CCD size: 1/4 inch
• Aperture (F): 2.1
• Focal length (EFL): 2.5mm
• Field of view (FOV): 135° (D), 95° (H), 70° (V)
• Image:
• Format: MJPG, YUY2
• Static image resolution: 2592x1944 pixels
• Video recording (MJPG): 15 FPS at 2592x1944, 15 FPS at 1920x1080, 15 FPS at 1280x720
• Video recording (YUY2): 3 FPS at 2592x1944, 5 FPS at 1920x1080, 10 FPS at 1280x720, 15 FPS at 640x480
• Focus type: Autofocus
• Interface: USB 2.0
• Operating voltage: 5V ± 5%
• Operating temperature: 0~50°C
• OS support: Windows, Linux, macOS
• Lens size: 18 x 18 x 19.39mm
• Dimensions: 18 x 40 x 25mm
• Weight: 53g

Scope of delivery:

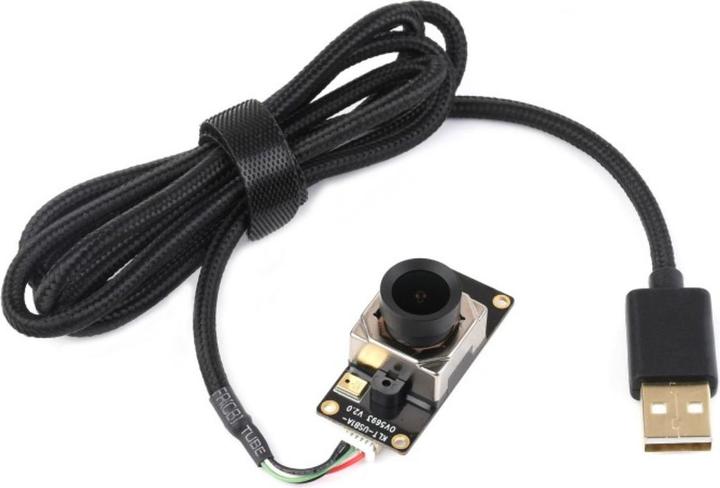

• 1x OV5693 5MP USB camera
• 1x 1m USB connection cable.
