WaveShare OV5640 5MP USB Camera with Auto Focus (B)

Ratings
BrandMore from WaveShare
Delivered between Thu, 26.6. and Fri, 27.6.
More than 10 items in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

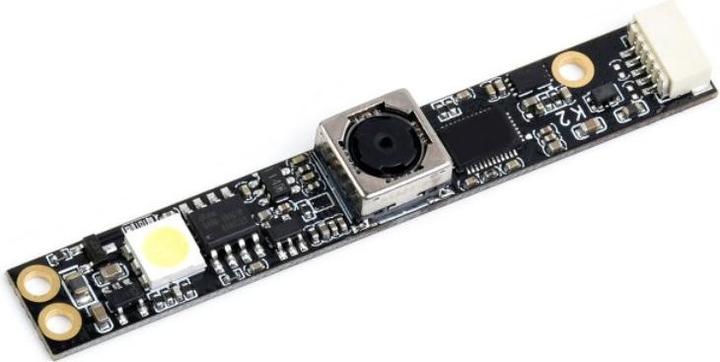

The OV5640 5MP USB camera with autofocus from Waveshare offers an excellent alternative to a traditional Raspberry Pi camera with its extremely compact design. The camera is powered via a USB connection and is compatible with Windows, Linux, and Raspberry Pi. It also features autofocus, eliminating the need for manual focusing.

Features:

  • Compact dimensions of just 62 x 9 mm
  • High resolution of 2592 x 1944
  • USB interface, UVC protocol, autofocus, driver-free, and plug-and-play

Technical Details:

  • Manufacturer: Waveshare
  • Manufacturer SKU: 21635
  • Camera specifications:
  • CCD size: 1/4 inch
  • Aperture (F): 2.8
  • Focal length (EFL): 3.29 mm
  • Field of view (FOV): 68°
  • Interface: USB 2.0
  • Image formats: MJPG, YUV422
  • Operating temperature: 0 to 50 °C
  • Supported operating systems: Windows, Linux
  • Dimensions: 9 x 62 x 5.6 mm
  • Weight: 37 g

Included in the package:

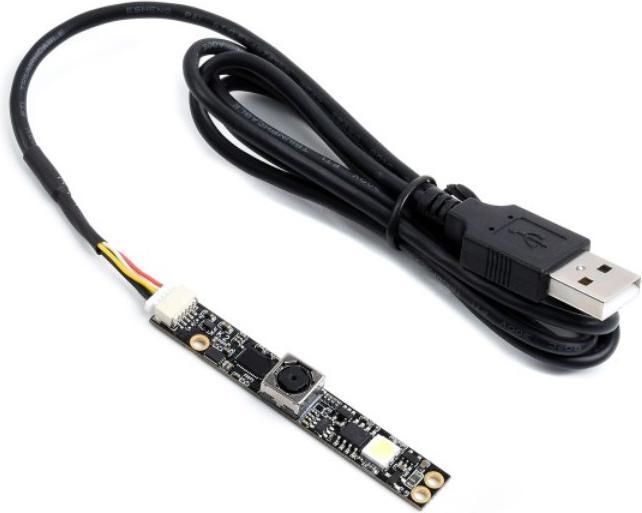

  • 1x OV5640 5MP USB camera with autofocus
  • 1x USB connection cable.

Key specifications

Item number
25046037

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
6.4.2023

Connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x OV5640 5MP USB camera with auto focus (B), 1x USB connection cable

Product dimensions

Length
5.60 mm
Width
62 mm
Height
9 mm
Weight
37 g

30-day right of return
24 Months Warranty (Bring-in)
