WaveShare MPPT Solar Power Management Module for 6V-24V Solar Panel

Ratings
BrandMore from WaveShare
Delivered between Wed, 1.10. and Thu, 2.10.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

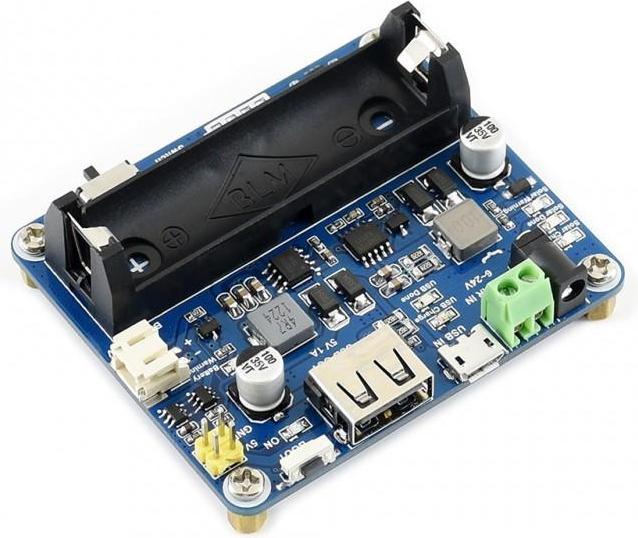

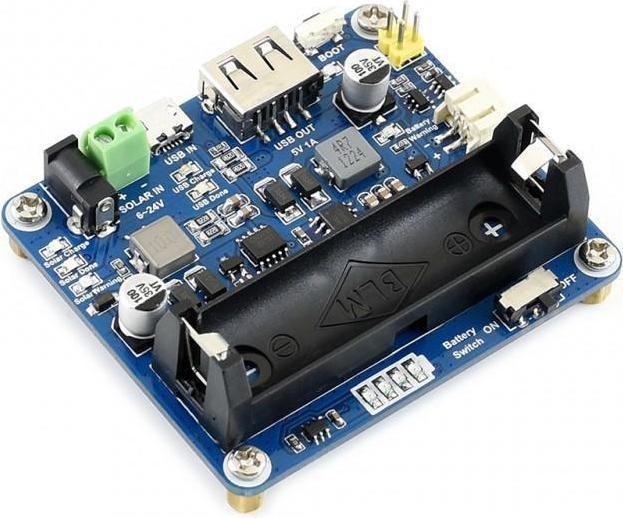

The MPPT Solar Power Management Module from WaveShare is an innovative solution for the efficient use of solar energy. It has been specifically designed for solar panels with a voltage range of 6V to 24V and enables the charging of 3.7V Li-ion batteries via a solar panel or USB connection. With a regulated USB output of 5V/1A, this module provides a reliable power supply for various applications, particularly for energy-saving IoT projects and Arduino-based systems. The integrated MPPT technology (Maximum Power Point Tracking) maximizes the energy yield of the solar panel, significantly enhancing the efficiency of energy conversion. The module comes with a battery holder for 14500 LiPo cells and also allows the connection of other LiPo batteries via a PH2.0 connector. Its user-friendly design and safety features make it an ideal choice for anyone looking to utilize sustainable energy sources.

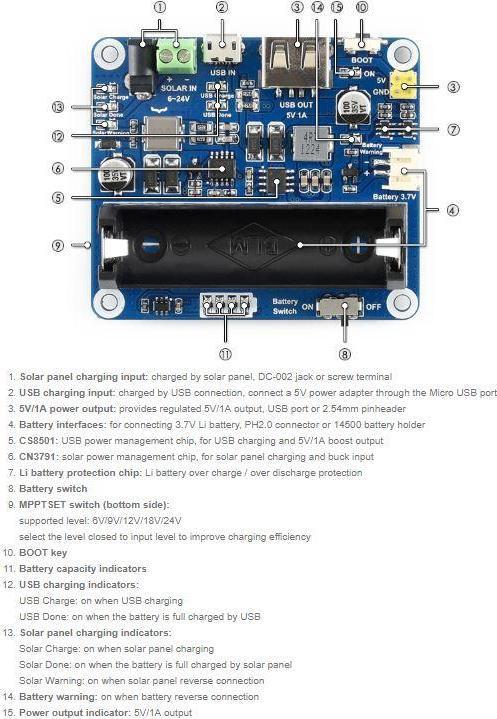

  • Supports MPPT (Maximum Power Point Tracking) to maximize the efficiency of the solar panel
  • Charging options via solar panel or USB port
  • DC-002 jack input or screw terminal input for connecting the solar cell

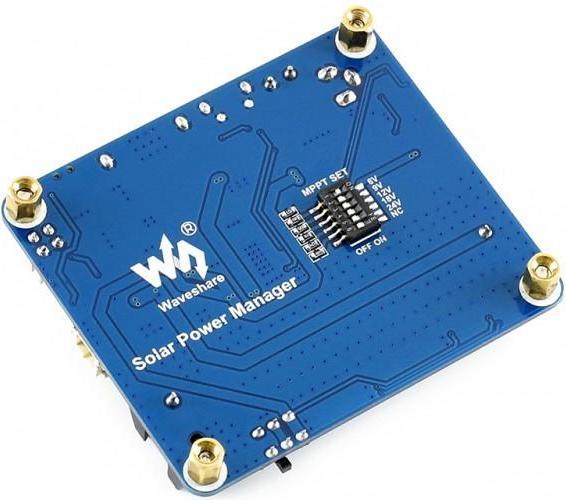

  • Integrated MPPT SET switch to select the solar cell voltage
  • Two regulated 5V outputs: pin headers and USB port.

Key specifications

Item number
25005662

General information

Manufacturer
WaveShare
Category
3D printer accessories
Release date
2.4.2023

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width
5.62 cm
Height
2.29 cm
Length
6.52 cm
Weight
31 g
