WaveShare Isolated RS485-TTL converter module

Ratings
BrandMore from WaveShare
Delivered between Tue, 8.7. and Wed, 9.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

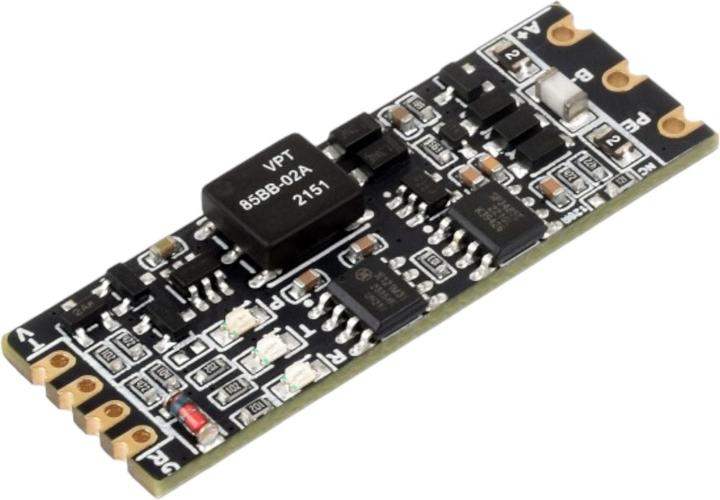

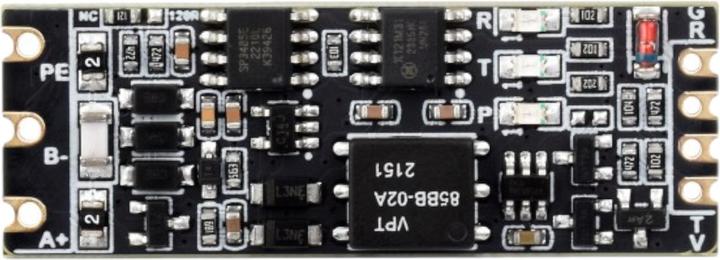

The isolated RS485-TTL converter module from WaveShare is a highly advanced device designed for converting TTL signals into differential RS485 signals. It offers galvanic isolation, providing effective protection against interference and voltage spikes. This module supports half-duplex communication and is suitable for both point-to-point and point-to-multipoint connections. Its robust construction and integrated overvoltage protection features make it ideal for use in demanding environments. With its compact size and gold-plated design, the module can be easily integrated into various applications, making it a versatile solution for developers and engineers.

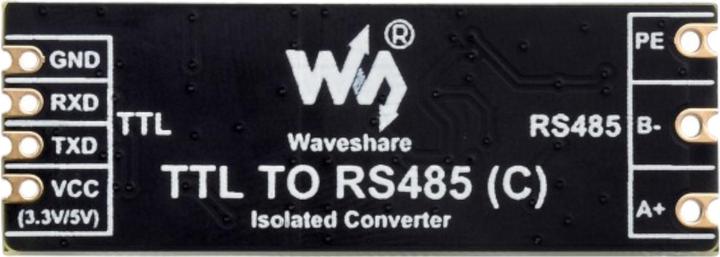

  • Compatible with TTL and RS485 standards for reliable half-duplex communication
  • Supports TTL signal levels from 3.3V to 5V with overvoltage protection
  • Unified power supply isolation for stable isolated voltage without additional power supply
  • Digital isolation for signal separation, high reliability, and low power consumption

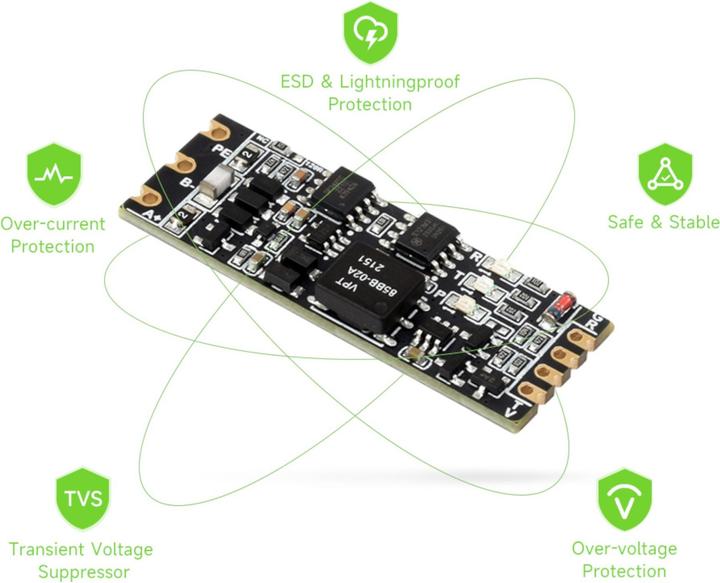

  • TVS (Transient Voltage Suppressor) effectively protects against overvoltages and voltage spikes.

Key specifications

Item number
46971445

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
1.7.2024

Power supply

Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x isolated RS485-TTL converter module

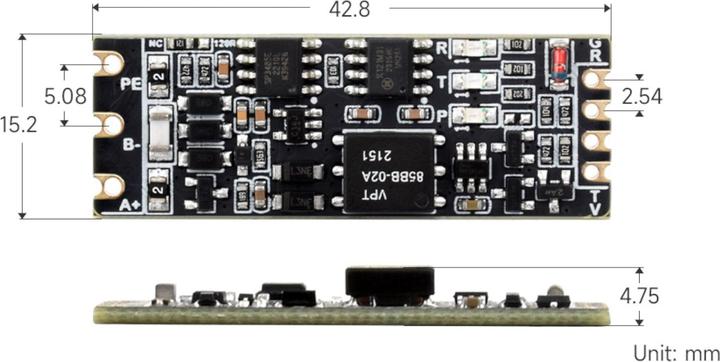

Product dimensions

Length
5 mm
Width
43 mm
Height
16 mm
Weight
5 g

30-day right of return
24 Months Warranty (Bring-in)
