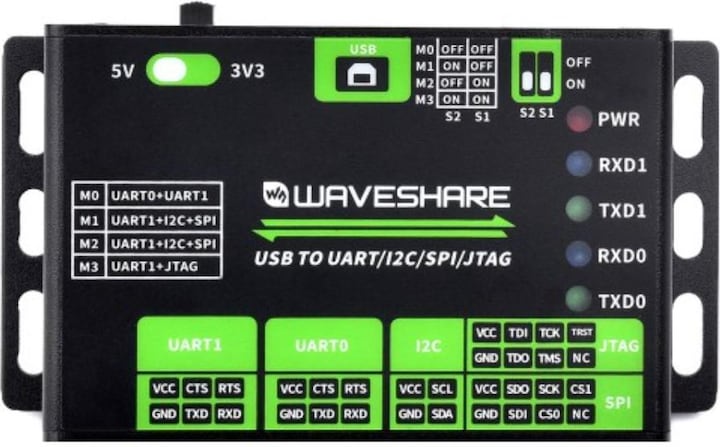

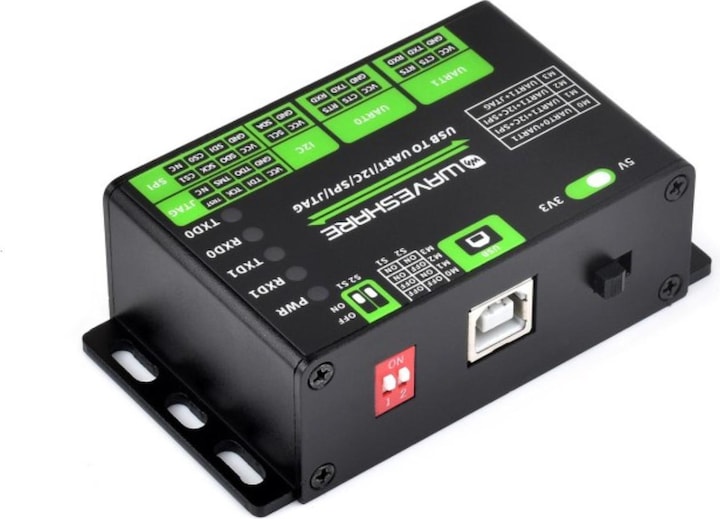

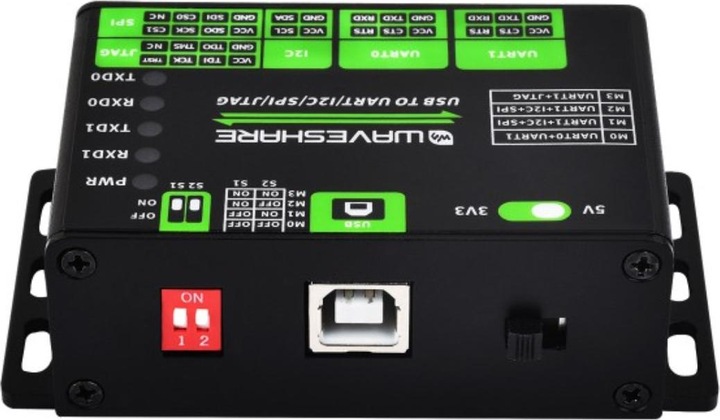

WaveShare Industrial USB to UART/I2C/SPI/JTAG converter

This USB to UART/I2C/SPI/JTAG converter from Waveshare is your ideal companion for connecting a variety of interfaces to your PC. It supports multiple interfaces and is compatible with 3.3V and 5V, making it a flexible solution for your projects. With built-in protection circuits and support for multiple systems, this converter is ready for demanding applications. The aluminum alloy housing provides a robust shell, while wall and rail mounting support allows for easy installation.

Features:

• Integrated protection circuits
• Aluminum alloy housing
• Support for wall mounting

Application examples:

• Industrial automation
• Embedded systems and IoT projects

Technical details:

• Manufacturer: Waveshare
• Manufacturer SKU: 25411
• Host interface: USB-Type-B
• Power supply connection: USB-Type-B (host interface)
• Supply voltage switchable: 3.3V, 5V
• USB port:
• Connector: USB-Type-B
• Interface protection: Resettable fuse, ESD protection

UART connector:

• Number of channels: 2
• Connection: 6PIN IDC
• Baud rate: 1200bps to 9 Mbps
• Hardware flow control: CTS and RTS

I2C port:

• Number of channels: 1
• Connector: 12PIN IDC (the first 4PINs are I2C)

SPI connector:

• Number of channels: 1
• Connector: 12PIN IDC (the last 8PINs are SPI)

JTAG connector:

• Number of channels: 1
• Connection: 12PIN IDC (the last 8PINs are JTAG)

Dimensions: 56 x 48 x 27.6 mm
Weight: 194 g

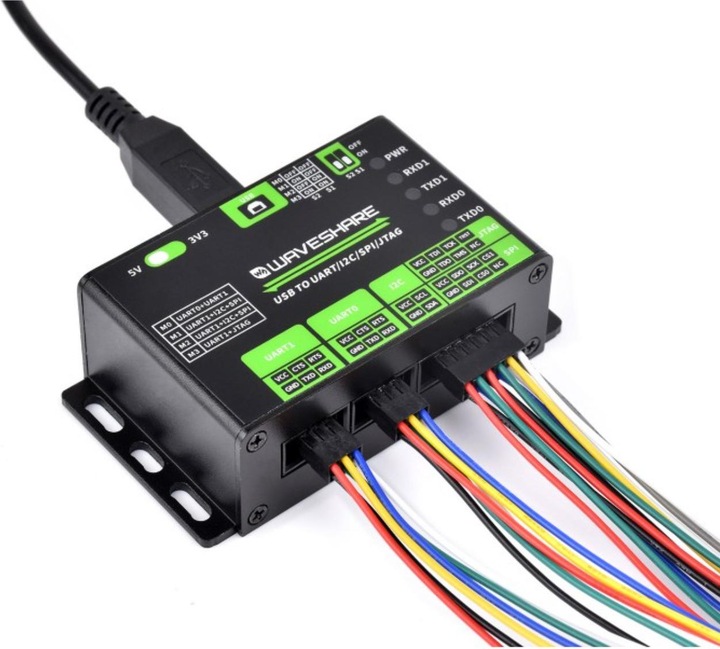

Scope of delivery:

• 1x Industrial USB to UART/I2C/SPI/JTAG Converter
• 1x USB Type-A to Type-B cable 1.2 m
• 1x 12 PIN cable ~0.2 m
• 2x 6 PIN cable ~0.2 m.
