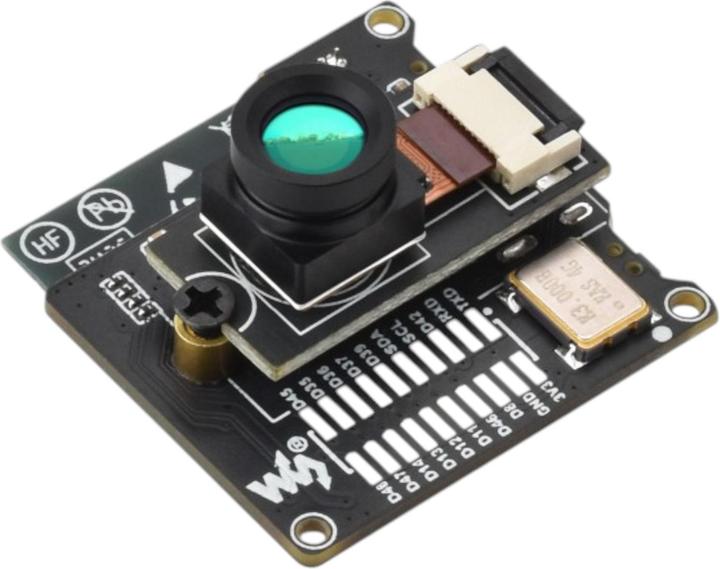

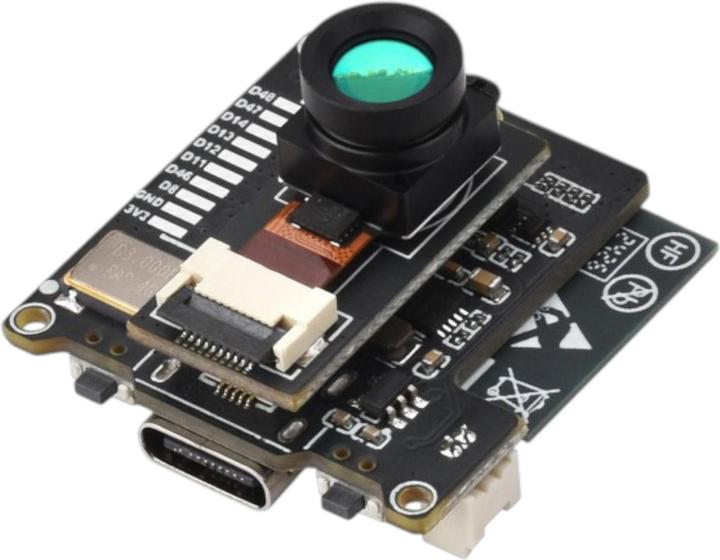

WaveShare ESP32-S3 Thermal Wärmebildkamera 45° Module 80×62 Pixels

With the ESP32-S3 Thermal Imaging Camera 45° Module, you can enhance your projects with the fascinating capability of thermal image capture. This compact module is based on a powerful ESP32-S3 and provides a thermal image with a resolution of 80×62 pixels. The 45° field of view allows for precise detection at medium distances. With integrated WiFi and Bluetooth functionality, you can wirelessly transmit your images and data. The USB-C connection makes power supply and data transfer particularly easy. The module is ideally suited for use in mobile devices or compact surveillance systems. With open software support, you have plenty of freedom for custom programming. This module is also excellently applicable in combination with Home Assistant or IoT projects. The precise thermal camera reliably detects temperature differences. You benefit from low energy consumption, making the module perfect for mobile applications. Its compact design makes it easy to integrate the module into existing projects. Whether in private, scientific, or industrial settings – this module consistently delivers reliable results.

Technical Specifications:
Manufacturer: Waveshare
Manufacturer SKU: 30136
Sensor Resolution: 80×62 pixels
Field of View: 45 degrees
Measurement Range: -40 to 400°C
Deviation: ±1.5℃ (at room temperature of 10 to 70℃)

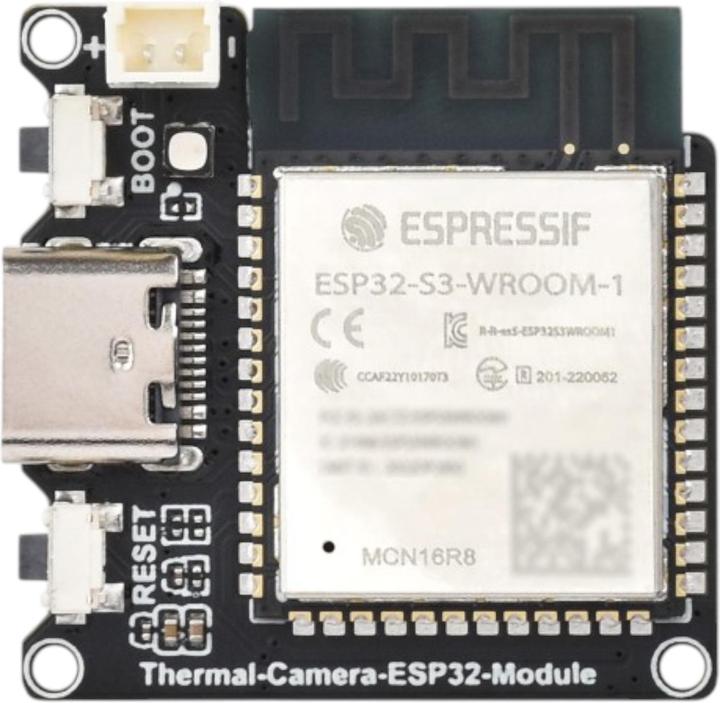

Processor: ESP32-S3-WROOM-1 Xtensa 32-bit LX7 Dual-Core up to 240MHz
Connectivity: 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE)
Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash
Expansion: 2 × 10 solder pads with 14 × GPIO, 1 × I2C, 1 × UART

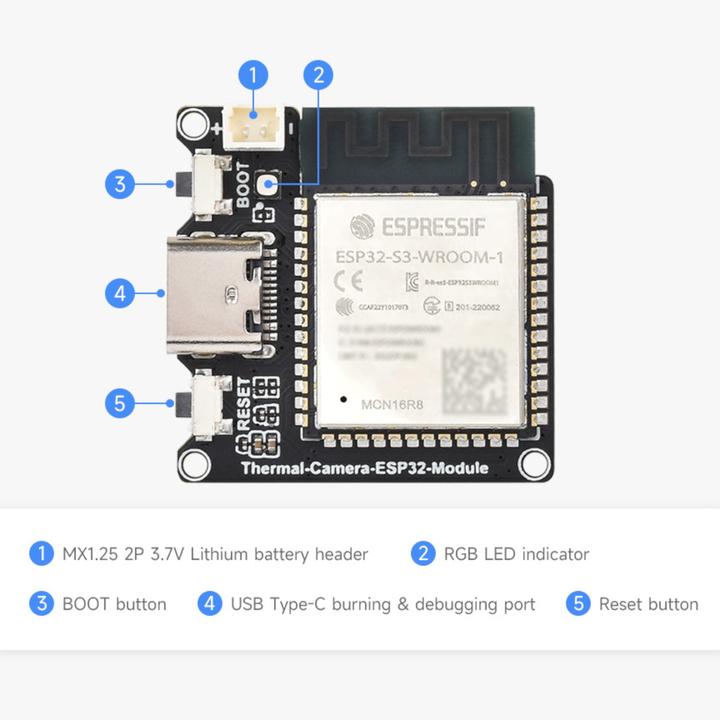

Power Supply: USB-C, MX1.25 (battery connection)
Programming Environments: Arduino, ESP-IDF

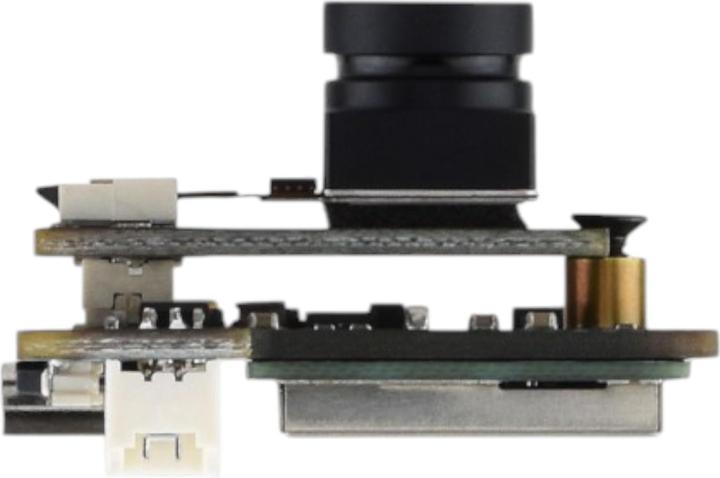

Dimensions: 30 x 30 x 19 mm
Weight: 48g.
