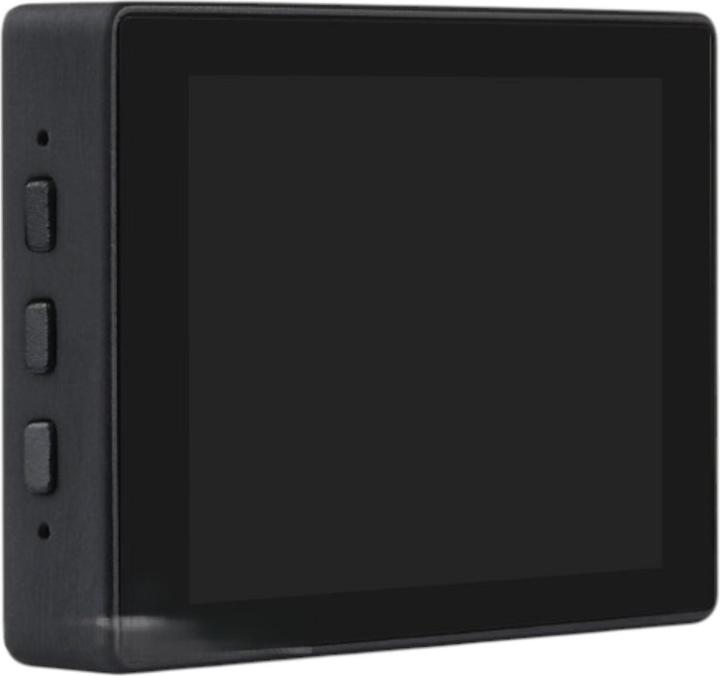

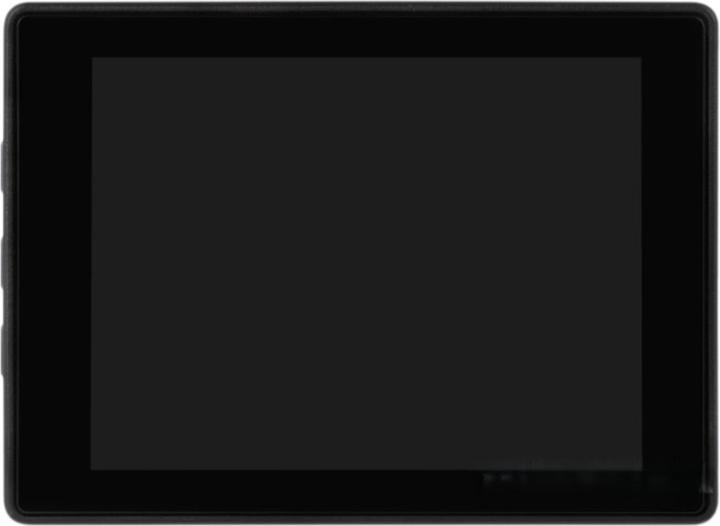

WaveShare ESP32-S3 2.41inch Touch Display Development Board 600×450

This compact development board brings you a high-quality 2.41-inch AMOLED touch display with a sharp resolution of 600 × 450 pixels for your next project. It is based on the powerful ESP32-S3R8 chip and offers not only Wi-Fi and Bluetooth functionality but also a variety of interfaces for expansions. Thanks to the built-in capacitive touch panel, the display responds precisely and quickly to your inputs. An integrated 6-axis sensor enables the detection of movements and gestures, making it particularly interesting for interactive applications or wearable devices. The RTC chip ensures accurate timekeeping even during power outages. With the USB-C port, you can easily program the board while simultaneously powering it. You can also use a TF card and operate the device with a lithium battery. Develop your user interface using LVGL, Arduino IDE, or ESP-IDF according to your preferences. The high color brilliance and wide viewing angle make the display especially attractive for visual applications. The board comes in a protective case - perfect for use on the go or in prototyping.

Technical Specifications:
Manufacturer: Waveshare
Manufacturer SKU: 30589
Microcontroller: ESP32-S3R8, LX7 Dual-Core, up to 240 MHz
Memory: 16 MB Flash, 8 MB PSRAM, 512KB SRAM, 384KB ROM
Sensor: QMI8658 6-axis IMU
Display Driver: RM690B0
Display Type: AMOLED
Display Size: 2.41 inches
Resolution: 600 × 450 pixels
Colors: 16.7 million
Brightness: 800 cd/m²
Contrast Ratio: 100000:1
Touch Function: capacitive, FT6336 controller
RTC: PCF85063 with charging function

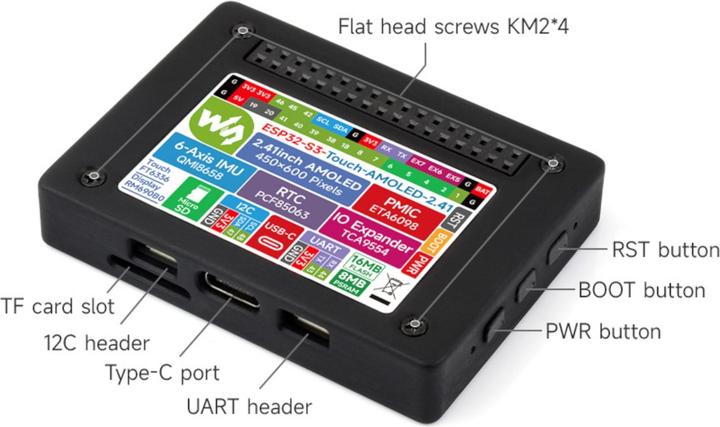

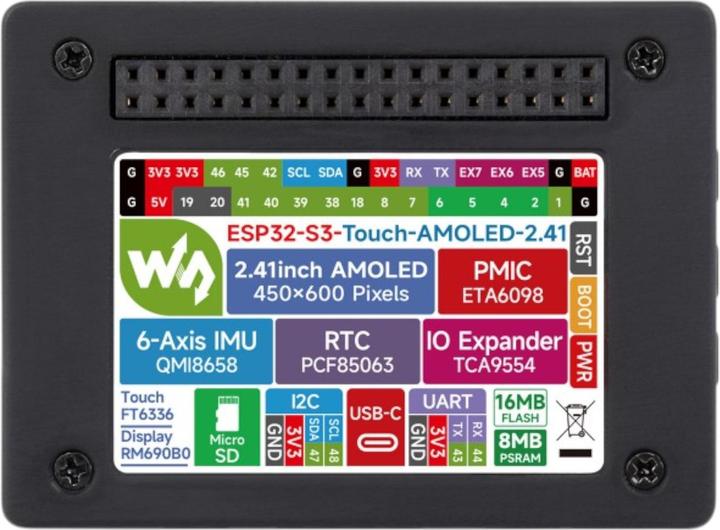

Interfaces: USB-C, UART, I2C, TF card slot, 34PIN GPIO, Wi-Fi, Bluetooth
Power Supply: USB-C or 3.7V lithium battery
Dimensions: 65 x 48 x 12 mm
Weight: 64g

Delivery Contents:
1x ESP32-S3 2.41inch Touch Display Development Board 600×450
2x SH1.0 4PIN Cable 100mm.
