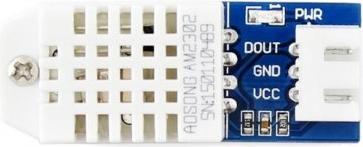

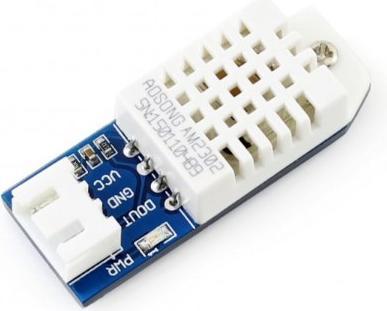

WaveShare DHT22 temperature and humidity sensor pluggable

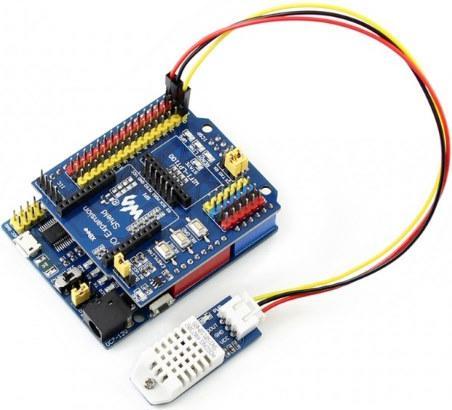

The DHT22 is equipped with a calibrated AM2302 sensor that allows for the measurement of temperature and humidity. Compared to the budget-friendly DHT11, the DHT22 offers higher accuracy and a wider measurement range. The sensor features an XH2.54mm connector, making it easy to connect your own crimped cables. The DHT22 is controlled via a digital 1-Wire interface, facilitating operation with an Arduino or ESP8266. A ready-to-use Arduino library for control can be found in the Library Manager under "DHT Sensor Library." The board already has the necessary resistors built-in, so you can simply plug it into your Arduino and get started.

Application examples for the DHT22:

• Weather station
• Air tube
• Humidity controller
• Temperature controller
• Measuring room temperature and humidity
• Testing and detection device

Technical details:

• Model: DHT22 AM2302
• Operating voltage: 3.3VDC – 5.5VDC
• Requires only one pin (1-Wire)
• Humidity measurement range: 0% - 99.9% (2 to 5% measurement accuracy)
• Temperature measurement range: -40°C – 80°C (±0.5 °C measurement accuracy)
• Resolution: 0.1% rH/0.1 °C
• Response time: approx. 2s at highest resolution

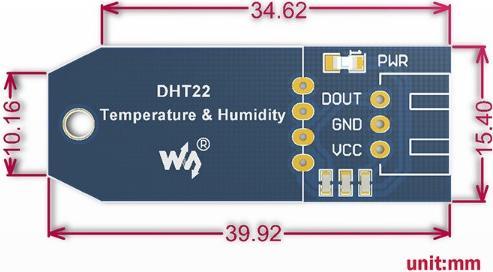

• Dimensions: 40 x 16 x 10mm
• Weight: 8g

Delivery includes:

• 1x DHT22 temperature and humidity sensor with plug-in capability
• 1x XH2.54mm to 1x3Pin Female Dupont cable 20cm.
