WaveShare DEBO EPA 4.2 - Developer Boards - Display ePaper 4.2"" black/white

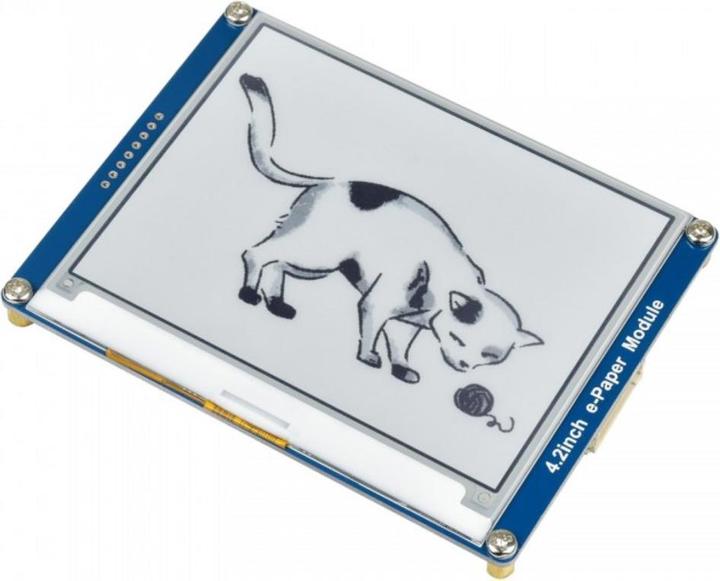

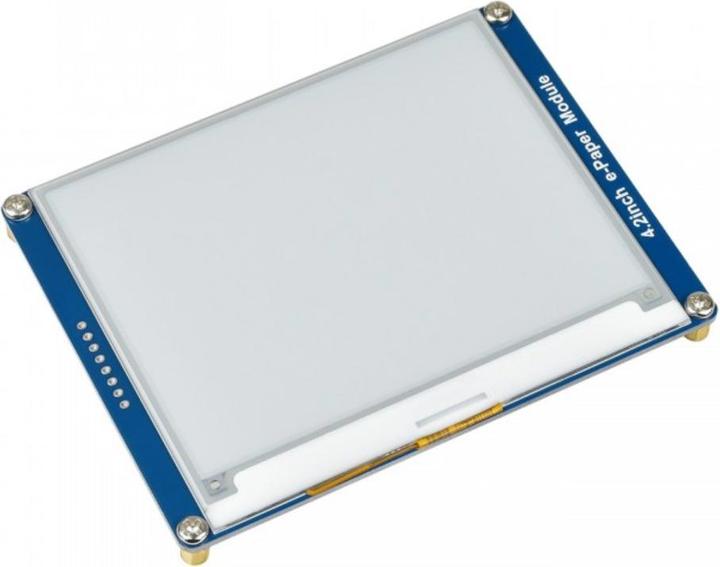

This is a 4.2-inch E-Ink / E-Paper display module with a resolution of 400 x 300 pixels, featuring an integrated controller that communicates via the SPI interface. With its extremely low power consumption, it is ideal for battery-operated applications. These displays are also used as price tags, which can operate for several years on a single battery. The display offers a very good viewing angle and can be easily read even in sunlight. Included in the package is a connection cable that allows you to easily connect the display to a Raspberry Pi. For an Arduino Uno or if you want to plug it onto a breadboard, you will need 8 male/male Dupont cables.

Features:

• Displays retain their content even without power supply.

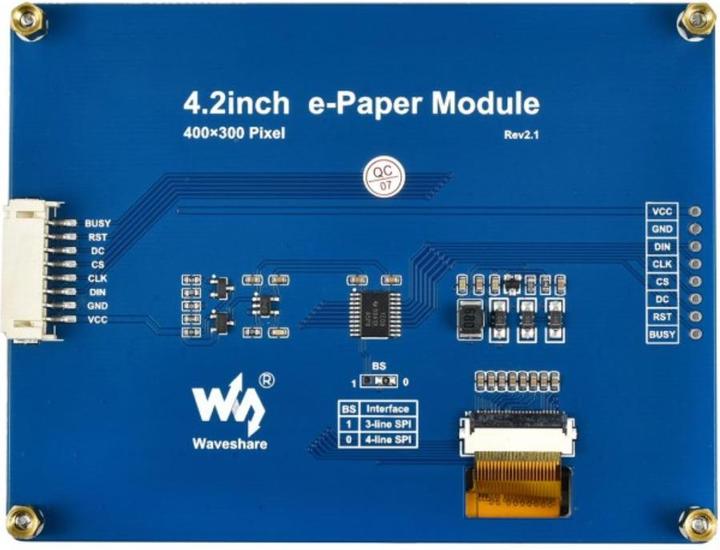

• Onboard level shifter, making it compatible with 3.3 V and 5 V microcontrollers.
• Ultra-low power consumption. Power is primarily needed only for refreshing.
• SPI interface for connection to controller boards like Raspberry Pi, Arduino, ESP8266, or ESP32.
• Good documentation and example code are available.
• Programming examples for the following controllers are available: Arduino, STM32, and Raspberry Pi.

Technical Details:

• Manufacturer: Waveshare
• Operating Voltage: 3.3 V / 5 V
• Interface: 3-wire SPI, 4-wire SPI

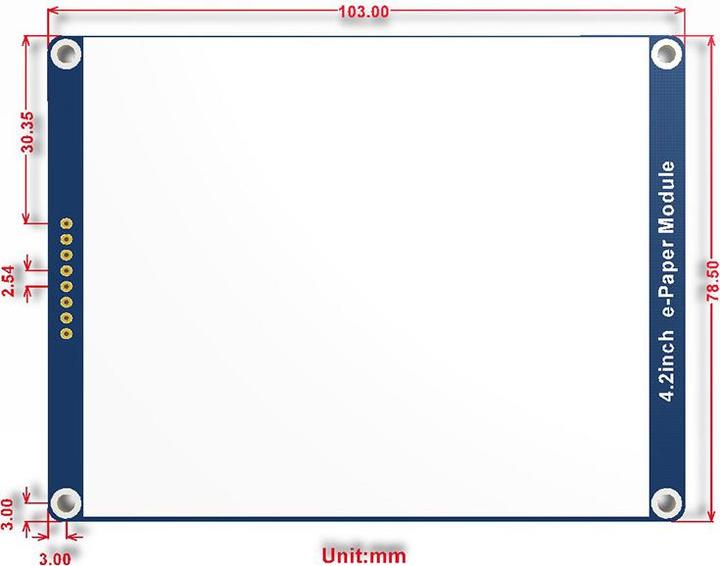

• External Dimensions: 103.0 mm × 78.5 mm
• Display Dimensions: 84.8 mm × 63.6 mm
• Pixel Size: 0.212 mm × 0.212 mm

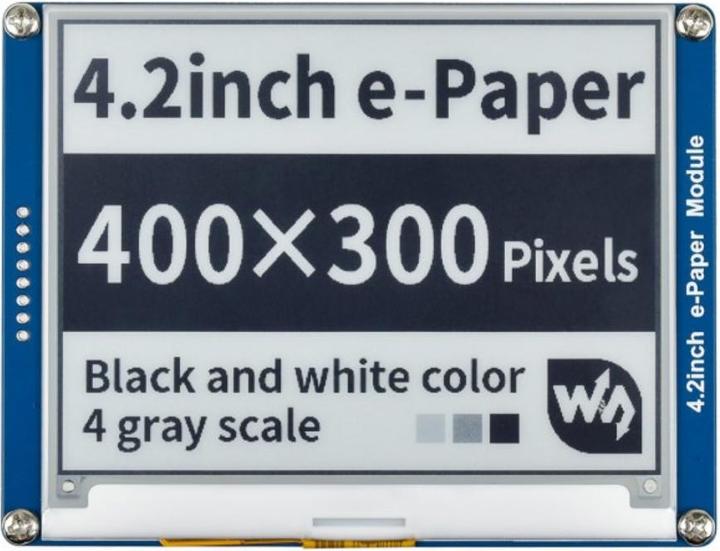

• Resolution: 400 x 300
• Display Color: Black, White
• Grayscale: 2
• Full Refresh Time: 4 s
• Refresh Power: 26.4 mW (typ.)
• Standby Power: <0.017 mW
• Viewing Angle: >170°
• Weight: 100 g

Package Contents:

• 1x 400 x 300 4.2" E-Ink Display
• 1x PH2.0mm to 1x8Pin Female Dupont cable 20 cm.
