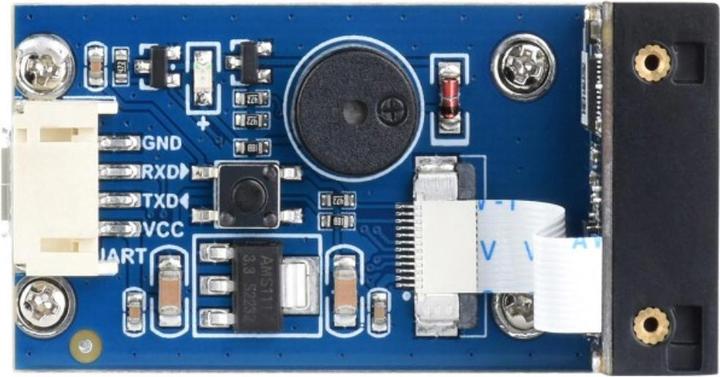

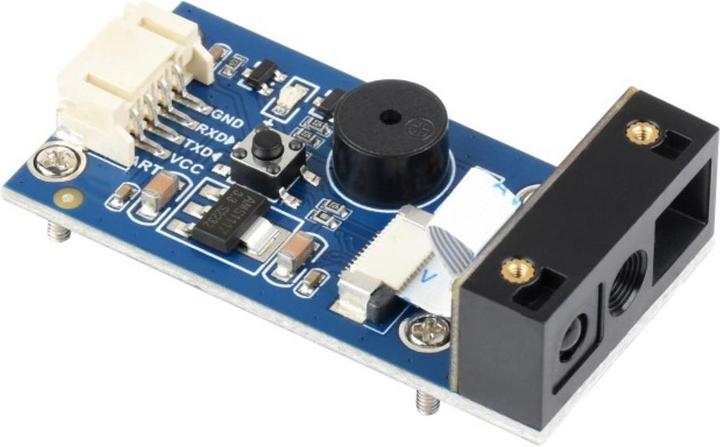

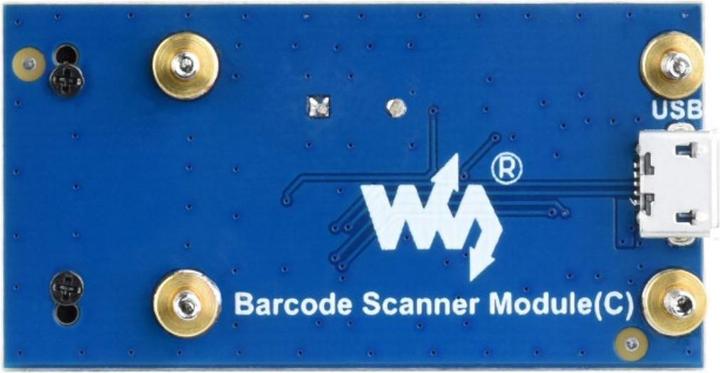

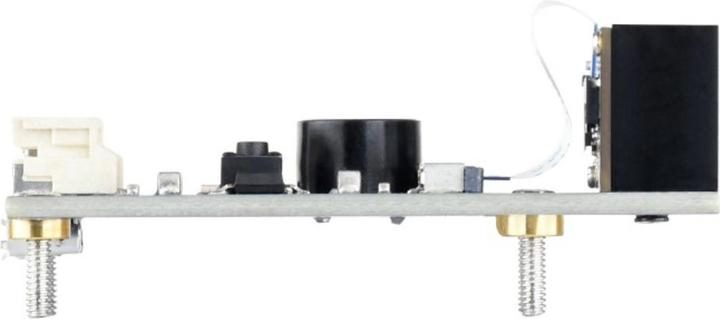

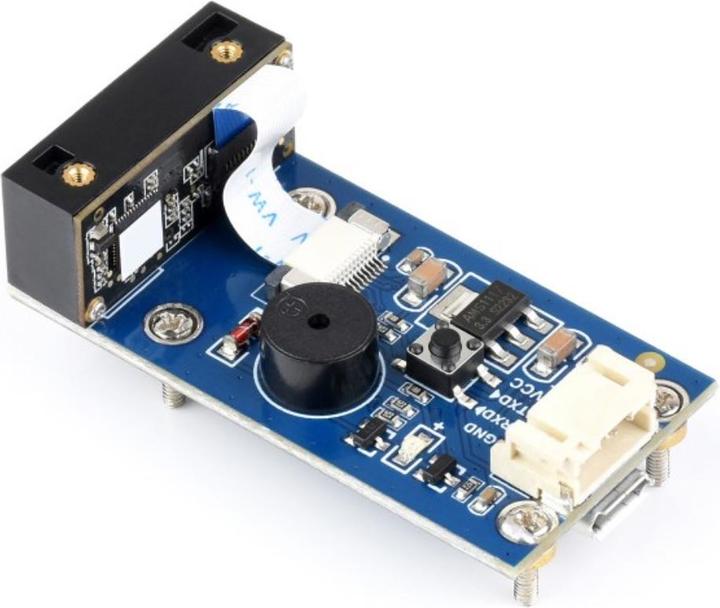

WaveShare Barcode QR Code Scanner Module (C)

The scanner module is a barcode and QR code scanner that can quickly and accurately decode 1D or 2D codes on paper or screens using an intelligent image recognition algorithm. It supports a variety of barcode formats and offers high accuracy, high speed, and high contrast when scanning barcodes. Additionally, it features onboard USB and UART interfaces, allowing it to be directly connected to a computer or easily integrated with various microcontrollers via UART.

Features:

The module can scan various 1D and 2D codes.
It can read codes from screens and paper.
It has a green targeting light source and a white auxiliary light.
It includes onboard USB and UART interfaces.
It can be easily configured via configuration codes.

Technical Details:
Manufacturer: Waveshare
Manufacturer SKU: 24468
Operating Voltage: 3.3/5V DC
Resolution: 640 x 480
Scan Angle: Tilt ±60°, Skew ±60°, Rotation 360°
Accuracy: 1D codes 3mil, 2D codes 5mil
Communication Interface: UART, USB
Power Consumption Reading: 250mA
Power Consumption Standby: 20mA
Power Consumption Boot: 258mA
Operating Temperature: -20~60°C
Readable 1D Codes: EAN-13, EAN-8, UPC-A, UPC-E, Codabar, Code 128, Code 93, Code 39, ISSN, ISBN, Code 11, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, CS Databar (RSS), MSI-Plessey
Readable 2D Codes: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec
Dimensions: 50.46 x 25.95 x 13.37 mm
Weight: 81 g

Package Contents:
1x Barcode/QR Code Scanner Module
1x USB Type A to Type Micro B Cable
1x 4Pin PH2.0mm to Female Dupont Cable 20 cm.
