WaveShare 8inch HDMI 1536x2048 IPS Capacitive Touch Screen with Aluminium Housing

This 8-inch LCD display features a resolution of 1536x2048 and is equipped with an IPS panel that offers a 178° viewing angle. It comes with a capacitive 10-point touch interface controlled via a hardened glass touch panel. Included in the package are an HDMI flat cable, a USB-A to USB-C cable, an HDMI to Micro-HDMI cable, and a 5V 3A Type-C power supply. The display is compatible with Raspberry Pi OS, Ubuntu, Kali, and Windows 11/10/8.1/8/7, and supports driver-free 10-point touch. Additionally, it has a Hi-Fi speaker that can be connected via a 3.5mm jack and features a CNC alloy housing.

Info: The resolution on the PC must be set to 1536x2048; otherwise, the display will remain dark. The orientation of the touch can be changed using the small side button on the housing.

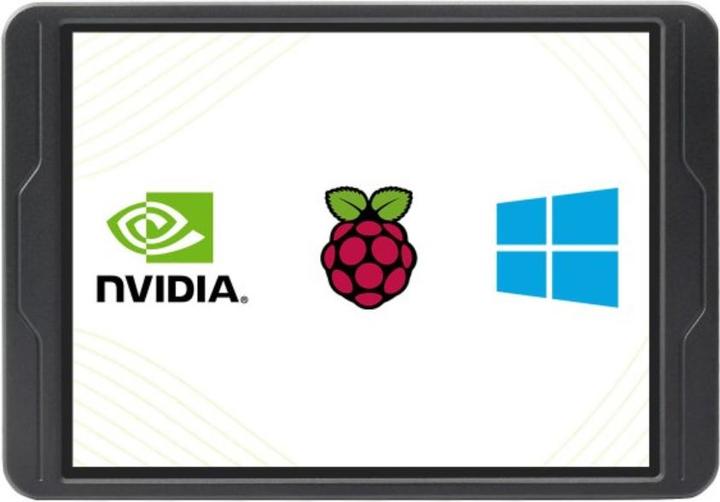

Device Support:
Raspberry Pi: Supports Raspberry Pi OS, 10-point touch, driver-free
Supports Ubuntu / Kali, single-point touch, driver-free
Jetson Nano: Supports Ubuntu, single-point touch, driver-free
PC: Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver-free

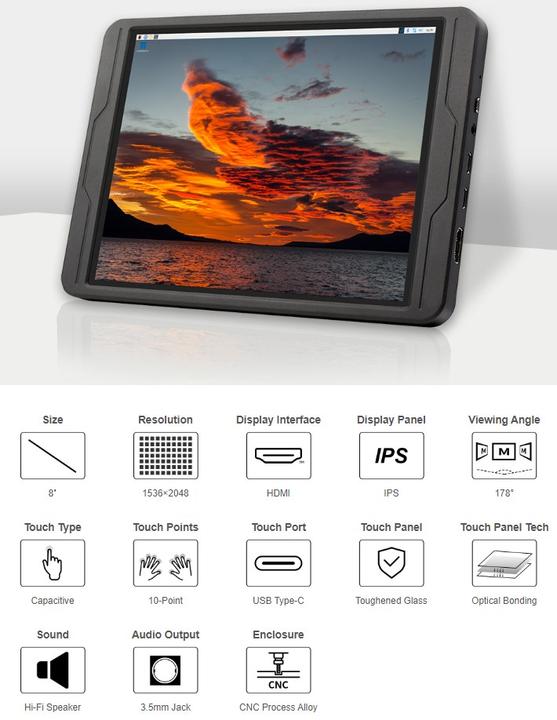

Technical Details:
Manufacturer: Waveshare
Manufacturer SKU: 23939
Screen Diagonal: 8 inches (119.8mm x 159.74mm)
Resolution: 1536x2048
Display Connection: HDMI
Display Panel: IPS
Viewing Angle: 178°
Touch Type: Capacitive
Touch Points: 10 points
Touch Connection: USB Type-C
Touch Panel: Hardened Glass
Touch Panel Technology: Optical Bonding
Sound: Hi-Fi Speaker
Sound Connection: 3.5mm Jack
Housing: CNC Process Alloy
Dimensions: 190mm x 128mm x 11mm
Weight: 770g

Package Contents:
1x 8-inch HDMI 1536x2048 IPS Capacitive Touch Screen with Aluminum Housing
1x Triangular Stand
1x HDMI Flat Cable 1m
1x USB-A to USB-C Cable 1m
1x HDMI to Micro-HDMI Cable 1m
1x 5V 3A Type-C Power Supply.
