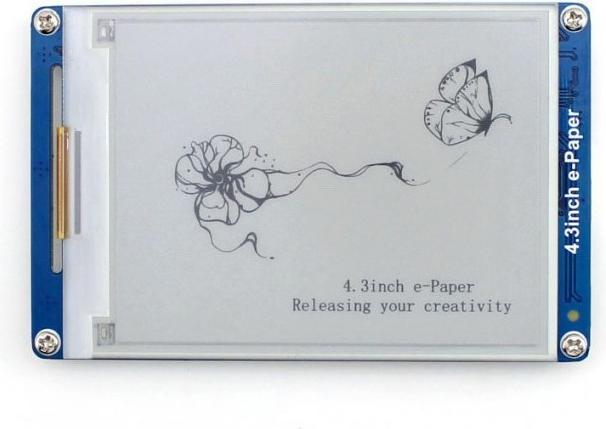

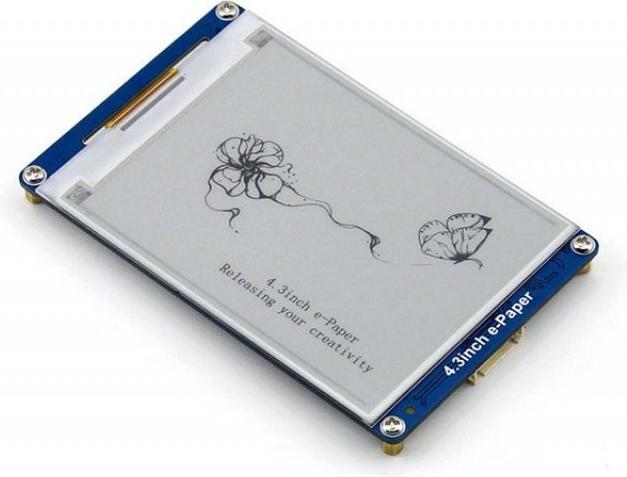

WaveShare 800x600 4.3inch e-Ink UART Display

This is an e-paper display module with a serial interface, 4.3 inches, 800×600 resolution, featuring integrated font libraries and extremely low power consumption. The display has a very good viewing angle and can be easily read even in sunlight. Included in the package is a connection cable that allows you to easily connect the display to your Arduino or ESP8266 / ESP32.

Features of the 4.3-inch eInk UART Display:

• Content displayed on the screen remains visible even without power supply.
• Low power consumption under 5mA.
• Easy to use, displays any content via a serial interface, including geometric graphics, text, and images.
• Integrated font libraries, supporting 32, 48, and 64 point matrix GBK, Chinese and English fonts.
• Built-in 128MB NAND flash, allows storage of font/image data; images can also be stored on an external SD TF card.
• Adjustable baud rate for the serial interface, defaulting to 115200 on power-up.
• Good documentation and example code available at Waveshare Wiki.
• Programming examples for Arduino are provided.

Technical Details:

• Display Type: GDE043A2
• SKU: 10628
• Part Number: 4.3-inch e-Paper UART Module
• Operating Voltage: 3.3VDC to 5.5VDC
• Interface: UART 115200 bps (bps is adjustable)

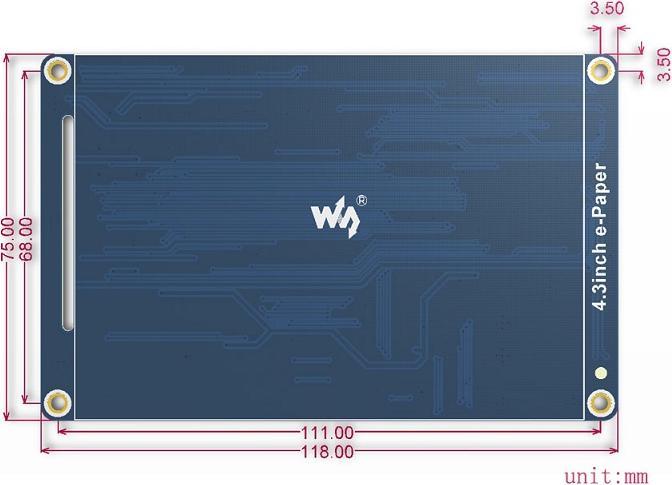

• External Dimensions: 118mm × 75mm
• Display Dimensions: 88mm × 66mm
• Pixel Size: 0.11mm × 0.11mm
• Resolution: 800 x 600
• Display Color: Black, White
• Gray Level: 4
• Full Refresh Time: 1.5s
• Viewing Angle: >170°
• Weight: 71g

Package Contents:
1x 800x600, 4.3-inch e-Ink UART Display
1x PH2.54mm to 1x6Pin Female Dupont cable, 20cm.
