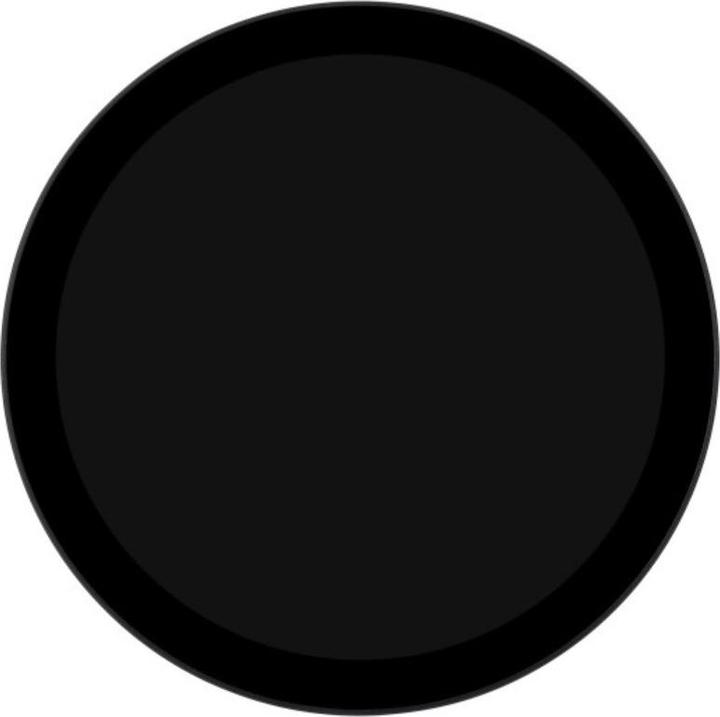

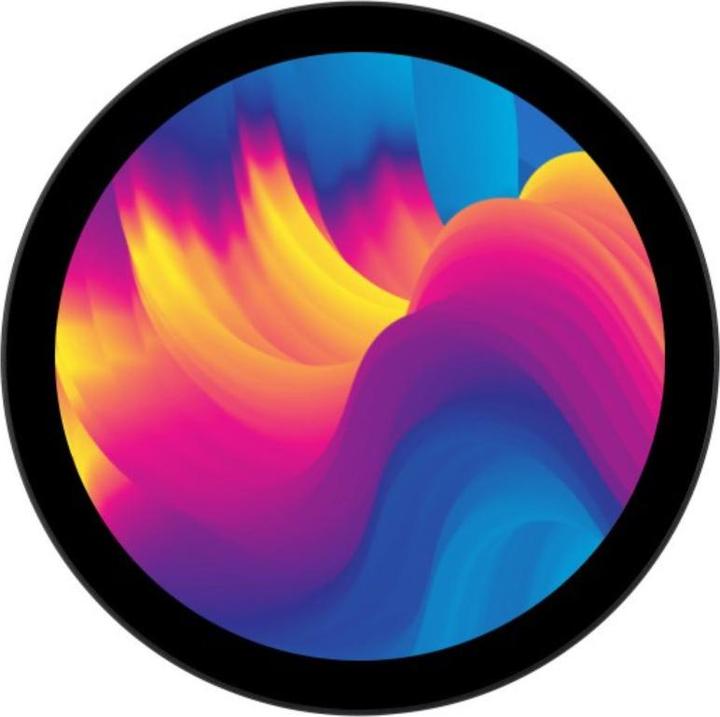

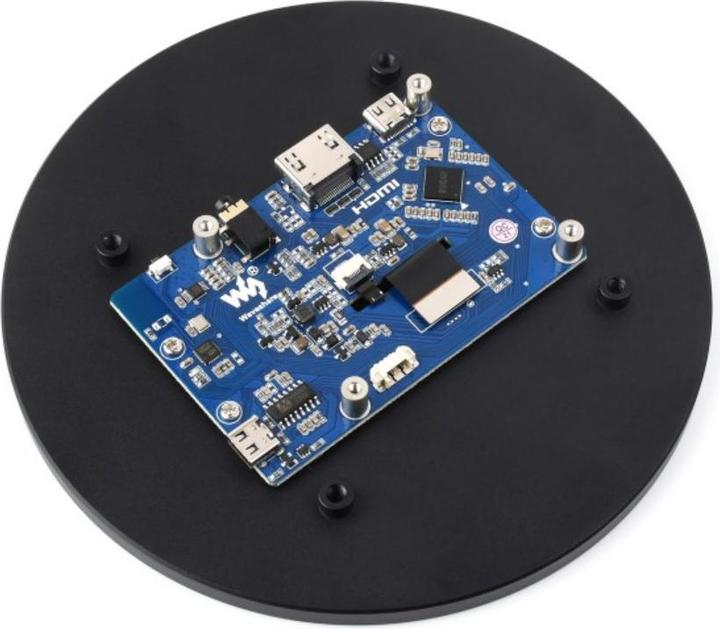

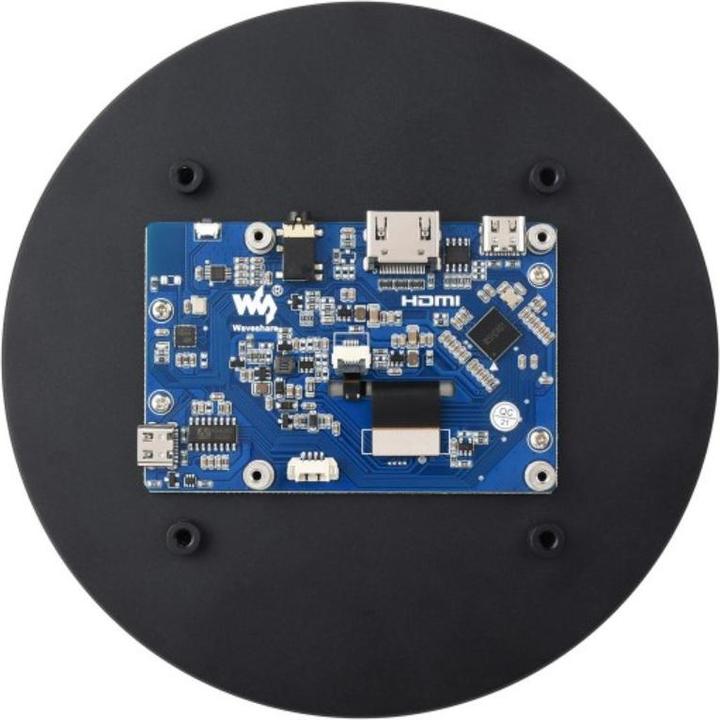

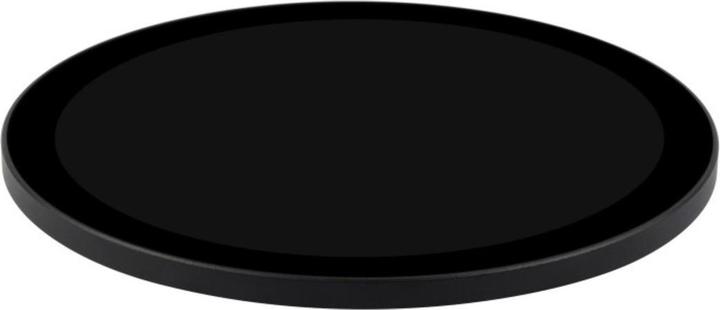

WaveShare 5inch HDMI Capacitive Touch Display Round 1080x1080

Waveshare's 5-inch round LCD display is a powerful display with a resolution of 1080x1080 pixels and a 10-point capacitive touch screen. With its versatile compatibility with various devices and operating systems such as Raspberry Pi, Jetson Nano, PC, and different touch functions for operating systems like Raspberry Pi OS, Ubuntu, Kali, WIN10 IoT, Retropie, as well as Windows 11/10/8.1/8/7, it offers flexible application possibilities.

Features:

• Round 5-inch IPS screen with 1080 x 1080 hardware resolution
• 10-point capacitive touch, with tempered glass panel, hardness up to 6H
• Adopting optical bonding technology for improved display effect
• Supports Raspberry Pi OS, Ubuntu, Kali, and Retropie when used with Raspberry Pi
• Supports Windows 11, 10, 8.1, 8, and 7 when used as a computer monitor
• Supports HDMI audio output with 3.5mm jack and 4PIN header

Technical details:

• Manufacturer: Waveshare
• Manufacturer's SKU: 24369
• Display Model: 5 inch 1080 x 1080 LCD
• Display dimensions: 5.0 inch
• Display viewing angle: 160 degrees
• Display Resolution: 1080 x 1080
• Display Area: 127.60 x 127.60 mm (H x W)
• Display pixel pitch: 0.1176 x 0.1176 mm (H x W)
• Display colour gamut: 70% NTSC
• Display Maximum brightness: 300 cd/m²
• Display contrast: 1300:1
• Display refresh rate: 60 Hz
• Display interface: Standard HDMI connection
• Backlight adjustment: Button dimming
• Power connection: 5V Type-C power supply unit
• Input voltage: 5V
• Input current: 400mA
• Power consumption: 2 Watt
• Operating temperature: 0~60°C
• Storage temperature: -10~70°C
• Dimensions: 150.00 x 150.00 x 7.00 mm
• Weight: 505g

Scope of Delivery:

• 1x 5 inch HDMI Capacitive Touch Display Round 1080x1080
• 1x HDMI flat cable 1m
• 1x USB-A to USB-C cable 1m
• 1x USB-to-Type-C adapter (B)
• 1x USB-to-Type-C adapter (C)
• 1x HDMI-to-micro HDMI adapter
• 1x HDMI adapter
• 1x screw set.
