WaveShare 4.3inch QLED Capacitive Touch Display for Raspberry Pi DSI Interface 800×480

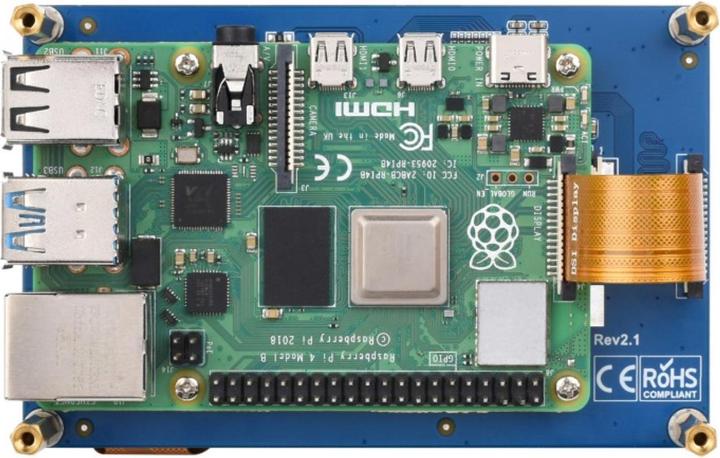

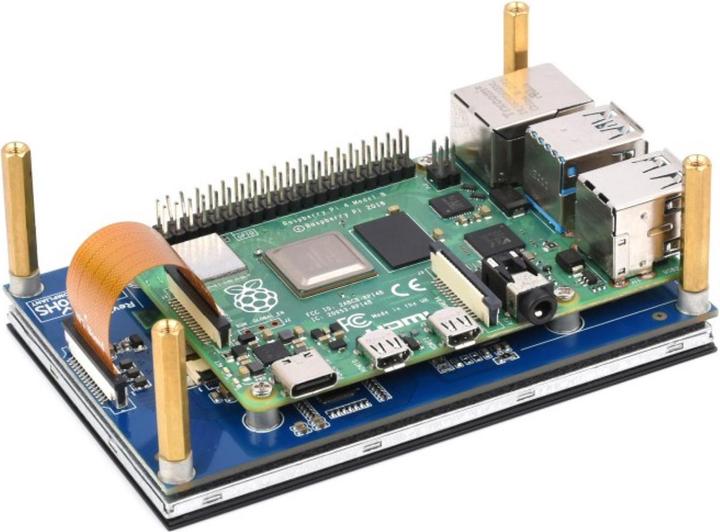

The Waveshare display features QLED Quantum Dot technology and offers a resolution of 800x480 pixels on a 4.3-inch screen. By using QLED technology, the display retains its vivid colors for more than 60,000 hours. The display is easy to operate via touch and supports control with up to five fingers. It is compatible with various software solutions such as Raspberry Pi OS and Ubuntu and can be controlled using a Raspberry Pi. With the included DSI connection cable and mounting material, this high-quality touch display can be very compactly attached to a Raspberry Pi.

Features:

• 5-point touch control, tempered glass panel with up to 6H hardness.
• Supports Raspberry Pi OS, Ubuntu, Kali, and Retropie when used with Raspberry Pi, driverless.
• Supports software adjustable backlight for more energy saving.

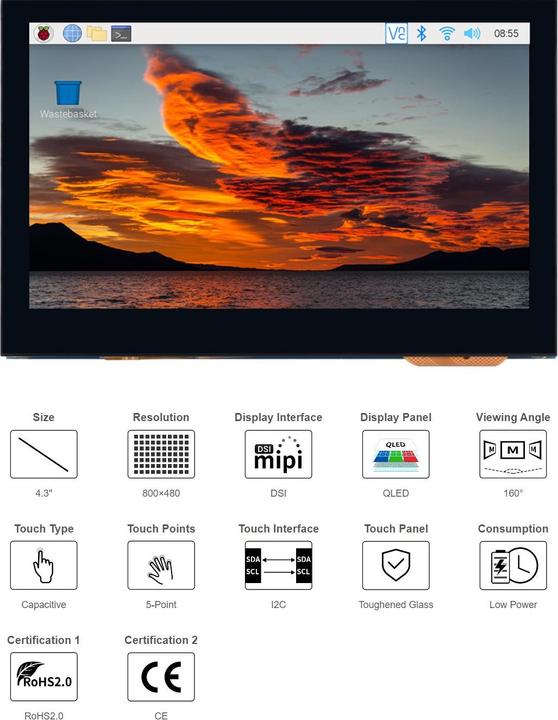

Technical details:

• Manufacturer: Waveshare
• Manufacturer's SKU: 24783
• Display type: QLED Quantum Dot Technology
• Display diagonal: 4.3 inch
• Display resolution: 800 x 480 pixels
• Display refresh rate: 60Hz
• Display contrast: 1200:1 cd/m²
• Display color depth: 16.7M
• Display interface: DSI
• Viewing angle: 160 degrees
• Touch panel: Tempered glass
• Touch type: Capacitive
• Touch points: 5 points
• Touch interface: I2C
• Power consumption: Low power
• Supported microcontrollers: Raspberry Pi (4B, 3B+, 3A+, 3B, 2B, B+, A+)
• Supported software: Raspberry Pi OS (5-point touch), Ubuntu (single point touch), Kali (single point touch), WIN10 IoT (single point touch), Retropie
• Certifications: RoHS 2.0, CE
• Dimensions: 106 x 68 x 12.8 mm
• Weight: 164g

Scope of delivery:

• 1x 4.3 inch QLED Capacitive Touch Display for Raspberry Pi DSI Interface 800×480
• 2x FPC 15 PIN cable (~50mm)
• 1x screw set.
