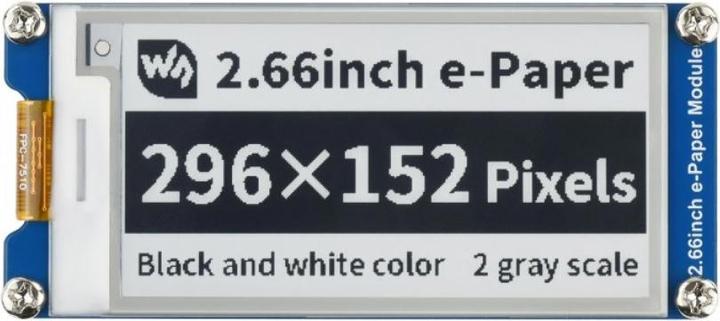

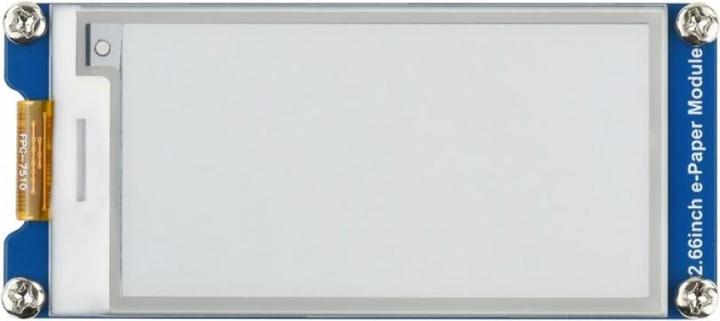

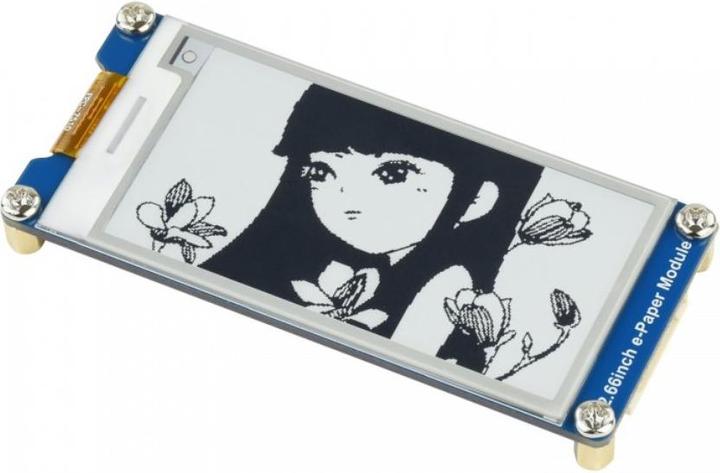

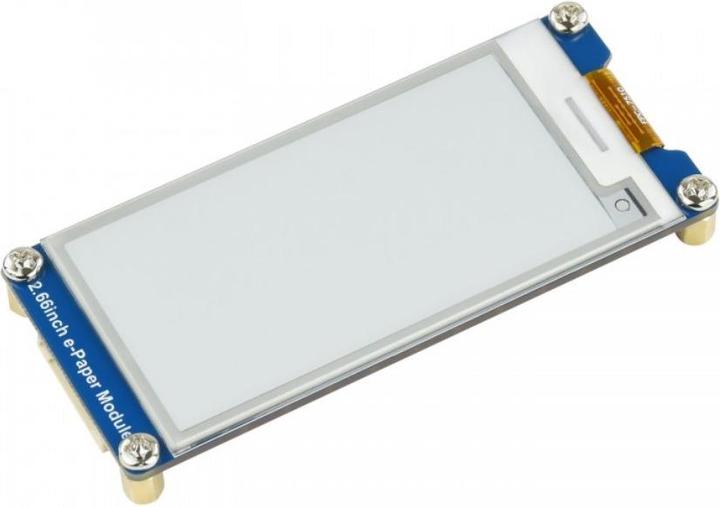

WaveShare 296x152 2.66inch Black / White E-Ink Display

This is a 2.66-inch e-Paper display module from Waveshare with an integrated controller. The module communicates via the SPI interface. The e-Ink display consumes extremely low power as it operates without a backlight. Therefore, the module only draws power when the image changes. This makes it particularly suitable for applications where the same information is displayed for extended periods, such as price tags or shelving. This black-and-white display supports partial updates, allowing individual areas to be refreshed quickly within 0.4 seconds. A full display update also takes only 3 seconds. With its extremely low power consumption, it is ideal for battery-operated applications. The package also includes a connection cable, making it easy to connect the display to a Raspberry Pi. For an Arduino Uno or if you want to plug it into a breadboard, you will need 8 male-to-male Dupont cables.

Features:

• Displays on the screen remain visible even without power.
• Ultra-low power consumption. Essentially, power is only needed for refreshing.
• Good documentation and example code available on the Waveshare Wiki.

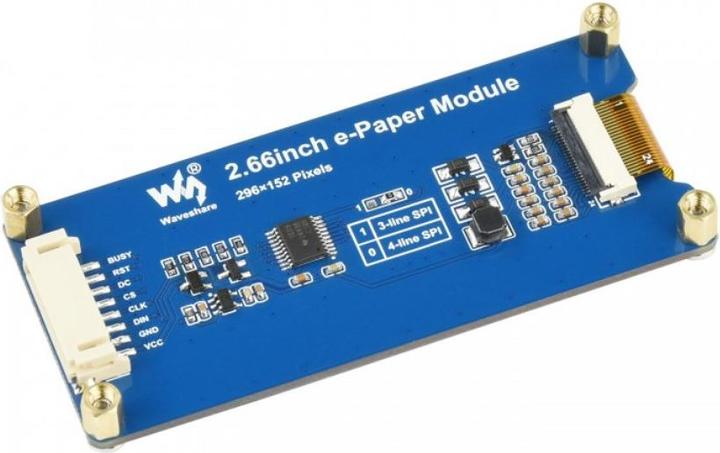

• Onboard level shifter, making it compatible with 3.3V and 5V microcontrollers.
• Programming examples available for the following controllers: Arduino, STM32, and Raspberry Pi.

Technical Details:

• Manufacturer: Waveshare
• Manufacturer SKU: 18321
• Type: GDEY0266T90
• Driver IC: SSD1680
• Voltage: 3.3V/5V
• Interface: 3 or 4-wire SPI
• Display Size: 2.66 inches
• Display Resolution: 296x152
• Display Color: Black, White
• Gray Level: 2
• Partial Refresh Time: 0.4s
• Full Refresh Time: 3s
• Refresh Power: 42.4mW (typ.)
• Standby Power: <0.01uA
• Viewing Angle: >170°
• Dimensions: 83.5 x 37 x 8mm
• Weight: 51g

Package Includes:
1x 296x152 2.66-inch Black-and-White E-Ink Display
1x PH2.0mm to 1x8Pin Female Dupont cable 20cm.
