Product details

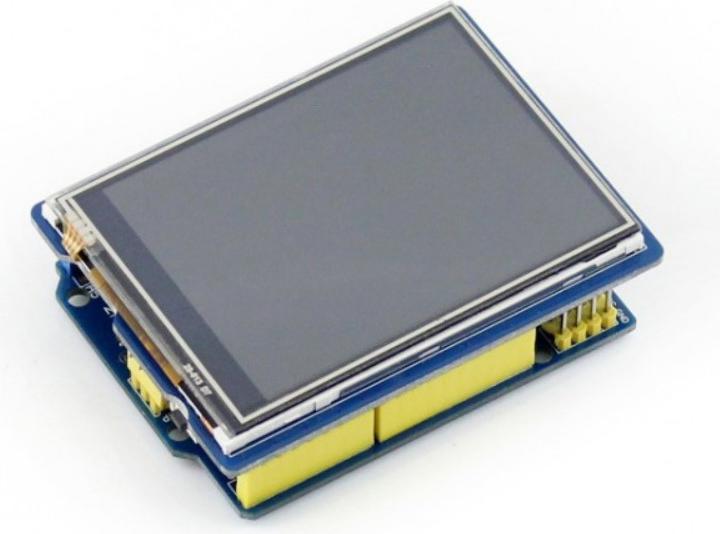

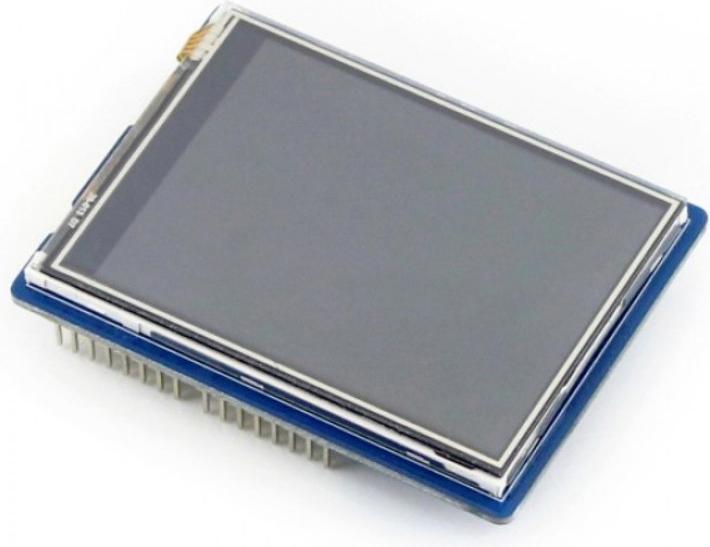

You can simply plug this practical and inexpensive TFT touch screen shield onto your Arduino. You can use the shield to create an input interface, for example, to set data on the Arduino via touch.
Technical details:
LCD type: TFT
Size: 2.8 inch
Resolution: 320x240
Interface: SPI
I/O voltage: 3.3 to 5V
Colours: RGB, 65k colours
Touch screen type: Resistive
Touch controller: XPT2046
LCD controller: HX8347D

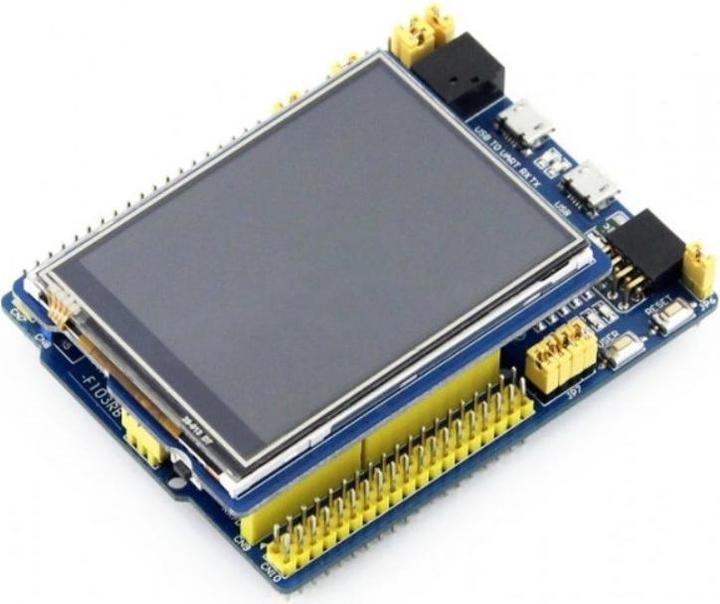

Compatible with: Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
On board touch controller is read out via SPI
Micro SD card slot for saving images and data
Backlight controllable via programme
Display dimensions: 57.6 x 43.2mm

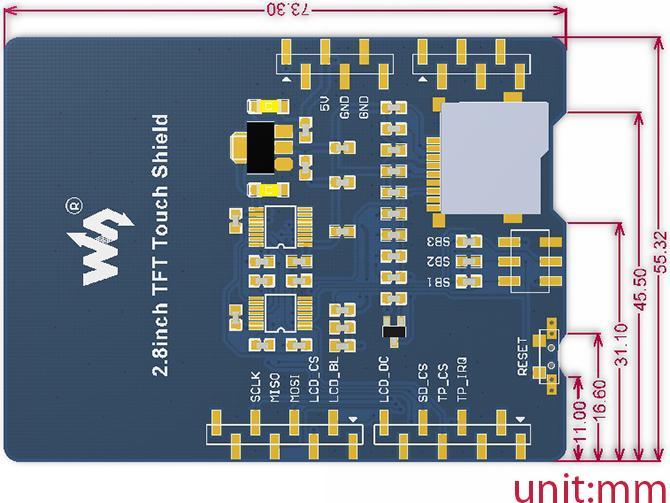

Dimensions: 73.3 x 55.3 x 15mm
Weight: 39g
Scope of delivery:
1x 2.8 inch TFT touch screen shield for Arduino.
