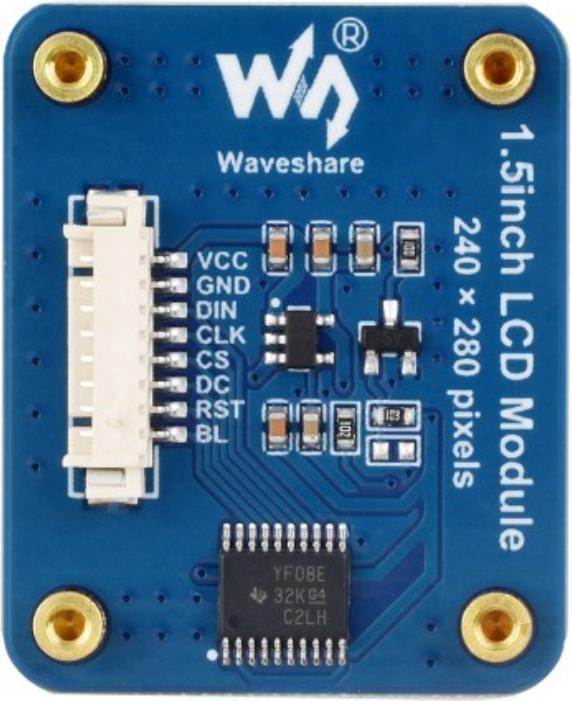

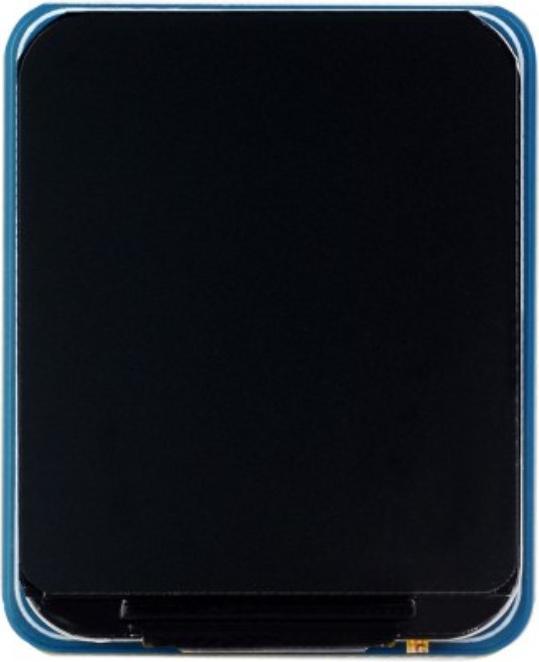

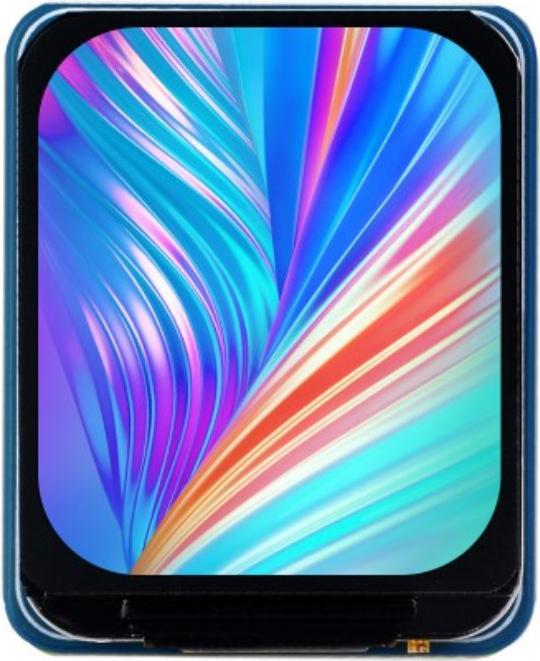

WaveShare 1.5inch 240x280 LCD display module

The 1.5-inch 240x280 LCD display module is a compact and powerful display for a variety of microcontroller projects. With its high resolution of 240x280 pixels and a vibrant IPS panel, it offers clear and colorful visuals. The display features rounded corners and a compact size, making it ideal for portable projects. It utilizes an SPI interface, allowing for easy integration into popular microcontroller platforms such as Raspberry Pi, Arduino, STM32, ESP32, RP2040, and Jetson Nano. The module comes with a built-in NV3030B driver and offers a wide range of development possibilities for creative and innovative applications.

Features:

• High-resolution IPS panel with 240x280 pixels
• Compact size with rounded corners
• SPI interface for easy integration
• Supports a variety of microcontrollers
• Built-in NV3030B driver
• Vivid color display with 262K colors
• Operating voltage of 3V/5V

Application examples:

• Portable devices and gadgets
• User interfaces for microcontroller projects
• Educational projects and experiments
• DIY electronics and robotics
• Small embedded systems

Technical specifications:

• Manufacturer: Waveshare
• Manufacturer SKU: 26118
• Operating voltage: 3V/5V

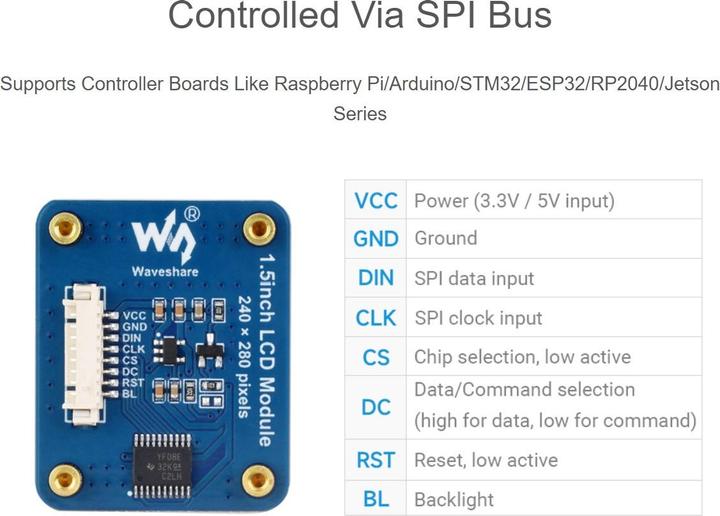

• Communication interface: SPI
• Screen type: IPS
• Controller: NV3030B
• Resolution: 240(H)RGB x 280(V)
• Display size: 24.768 x 28.896 mm
• Pixel pitch: 0.1032 (H) x 0.1032 (V) mm
• Dimensions: 28.5 x 35 x 7.3 mm
• Weight: 18.4 g

Package contents:

• 1x 1.5-inch 240x280 LCD display module
• 1x 8Pin GH1.25 to Female Dupont cable 20 cm.
