WaveShare 1.51inch Transparent OLED Display

Ratings
BrandMore from WaveShare
Delivered between Tue, 16.12. and Wed, 17.12.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

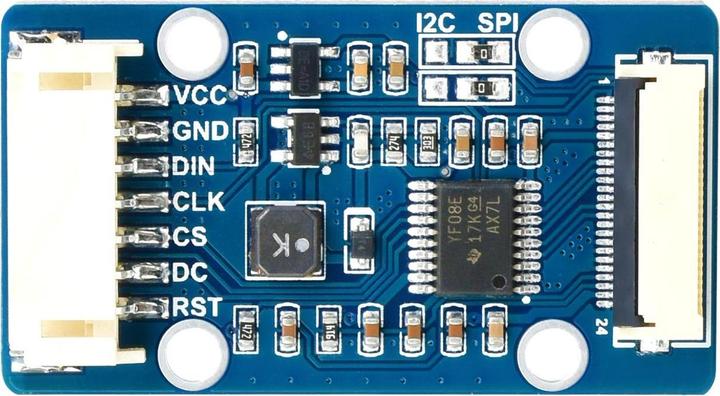

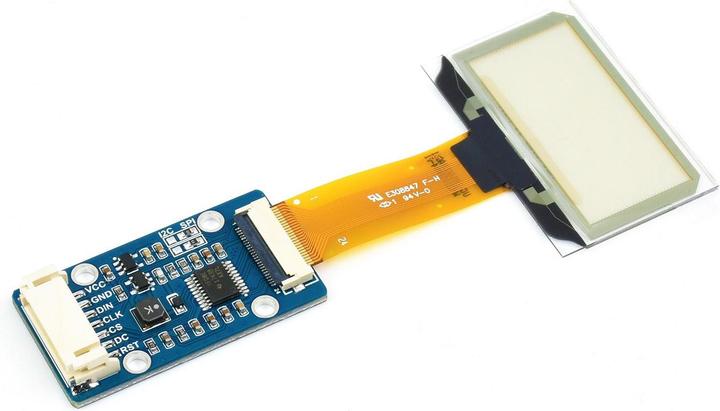

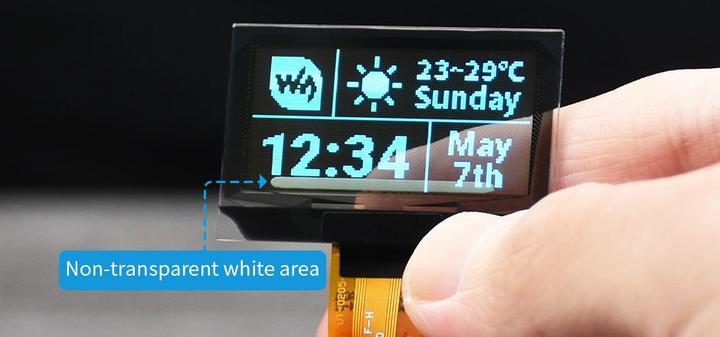

The 1.5-inch transparent OLED board features a transparent display, as the name suggests, where you can show anything you want in light blue pixels. The display comes with a driver board that can be easily controlled via an SPI/I2C interface. At the bottom of the display, there is a white bar that disrupts the transparency; however, pixels can still be controlled in this area.

Technical Details:
Manufacturer: Waveshare
Manufacturer SKU: 22545
Operating Voltage: 3.3 V / 5 V

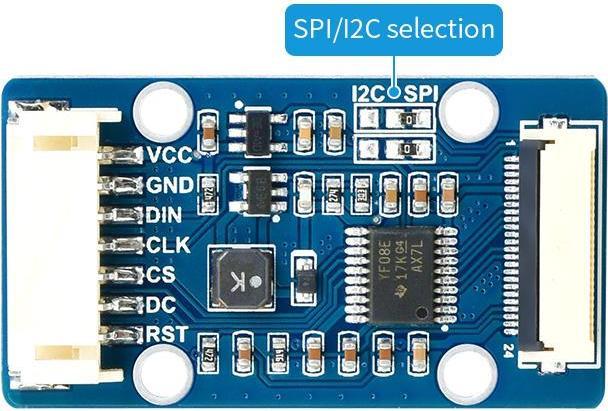

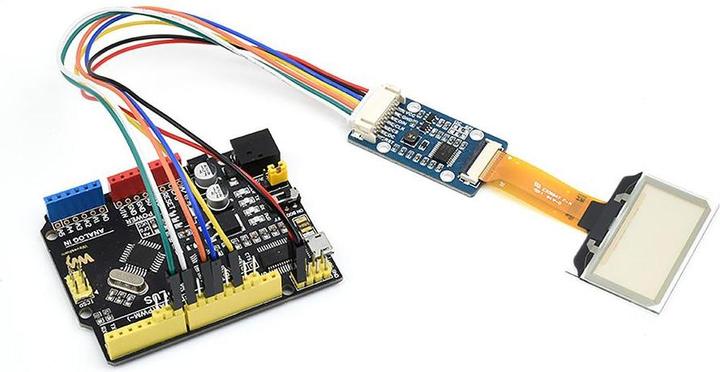

Communication Interface: 4-wire SPI/I2C
Display Type: OLED
Resolution: 128 × 64 pixels
Pixel Pitch: 0.274 × 0.274 mm
Pixel Size: 0.254 × 0.254 mm
Module Dimensions: 42.04 × 27.22 mm
Display Dimensions: 35.05 × 15.32 mm

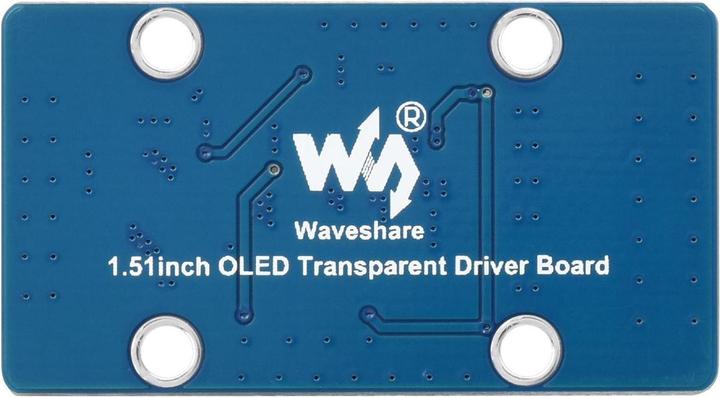

Driver Board Dimensions: 41 × 22.5 mm
Weight: 32 g

Included in the package:
1x 1.51-inch transparent OLED display
1x PH2.0 7p cable to Dupont
1x screw set.

Key specifications

Development board type
Kit
Item number
25046033

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Manufacturer no.
1.51inch Transparent OLED
Release date
6.4.2023

Development board properties

Development board type
Kit

Power supply

Operating voltage
5 V

Wireless transmission

Wireless transmission
Wi-Fi

Connections

Additional connections
I2C, SPI

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1.51inch Transparent OLED Display, PH2.0 7p cable to Dupont, screw set

Product dimensions

Weight
18 g

30-day right of return
24 Months Warranty (Bring-in)
