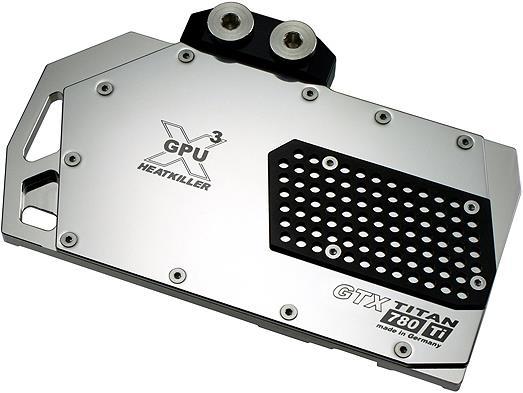

Its unique design enables the HEATKILLER® GPU-X³ to achieve exceptional performance. The cooling performance is on par with current high-end CPU coolers, featuring a flat form factor and the highest quality materials, which are hallmarks of the new GPU-X³ series.
The water-cooled section is made entirely of high-purity electrolytic copper. In addition to the graphics processor, the memory chips and voltage regulators are also cooled. A particularly fine microstructure has been integrated in the GPU area. Together with a low residual base thickness, this achieves optimal cooling performance. Insulating spacers have been incorporated in all relevant areas to ensure easy installation of the cooler.
To keep flow resistance and overall weight low, all channels are designed with a large volume. The connection block features threaded connections on both sides, allowing for versatile integration into the cooling circuit.
Separate CF/SLI connectors are available for use in multi-GPU systems.
For easier installation, all included thermal pads are pre-cut.
The Hole Edition additionally features a perforated decorative cover.

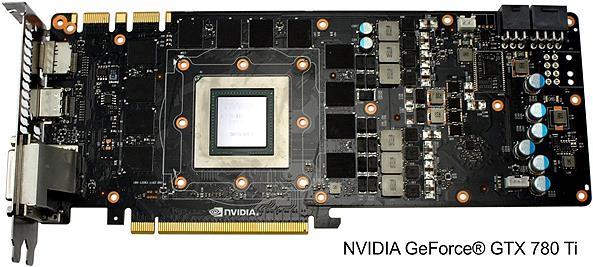

For more information on PCB layouts, please refer to our HEATKILLER® GPU-X³ compatibility list.
Hardware Model | GeForce GTX 780, GeForce GTX 780 Ti, GeForce GTX Titan |
Bottom plate material | Nickel-plated copper |
Item number | 2583248 |
Manufacturer | Watercool |
Category | GPU water coolers |
Manufacturer no. | 15546 |
Release date | 26.5.2014 |
GPU Cooler type | Complete cooler |
connector | 4x G1/4 |
Hardware Model | GeForce GTX 780, GeForce GTX 780 Ti, GeForce GTX Titan |
Bottom plate material | Nickel-plated copper |
Cover material | Stainless steel |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Installation material |
Width | 118 mm |
Height | 11.50 mm |
Weight | 900 g |
