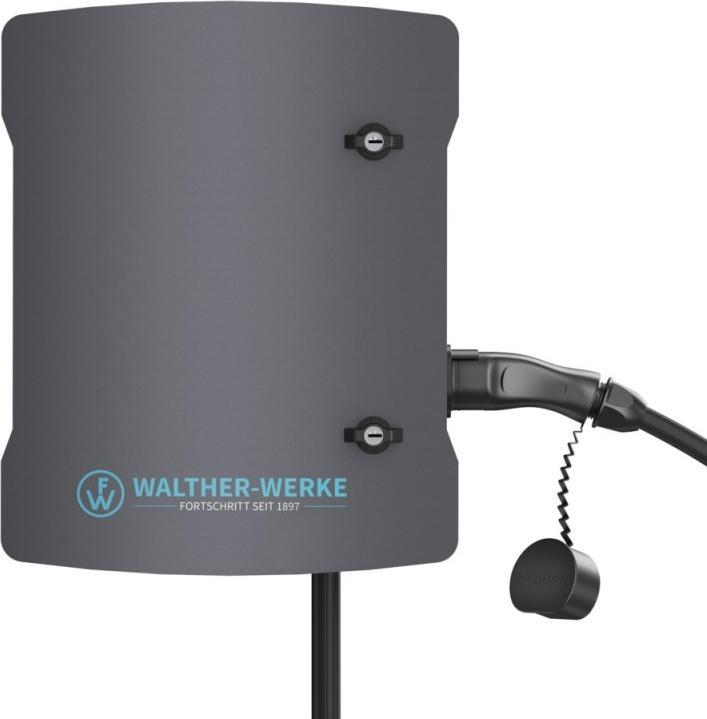

Walther Werke Wallbox smartEVO 22 eMobility Charging Station Type 2 Mode 3 22kW RFID

Type 2, 22 kW
Ratings
BrandMore from Walther Werke
Delivered between Thu, 30.10. and Thu, 13.11.
free shipping

Colour

Product details

Wallbox smartEVO 22

Equipment features:

  • Mode 3 charging according to IEC 61851
  • Plugs according to IEC 62196
  • 1x charging cable with 7.5m cable length
  • Charging coupler type 2
  • Charging power up to 22kW
  • 3 status LEDs in the side panel to display the current status of the charging point
  • Authentication via side-mounted RFID panel
  • Powerline Communication (PLC) according to ISO 15118 enables Plug & Charge and bidirectional communication with the vehicle
  • Connection to energy management systems (EMS)
  • EEBUS communication protocol
  • Connection to SMA communication protocol and TQ energy management
  • Integrated web server for firmware updates and remote access control/maintenance
  • Ethernet interface including AMJ module for connection to fixed data cable
  • Smart grid capability through OCPP 1.5 & 1.6 (JSON & SOAP)
  • Local Dynamic Load Management (DLM) including sliding grid detection (phase-accurate control) for efficient use of available charging power, with up to 250 charging points
  • Assignment of master and slave charging points possible via the configuration interface
  • Bidirectional energy meter (MID certified)
  • Permanent PE monitoring
  • 6mA DC residual current monitoring
  • Integrated residual current circuit breaker, line circuit breaker, and overvoltage protection type 1-2-3
  • Integrated 2-stage temperature monitoring
  • Robust and weather-resistant housing

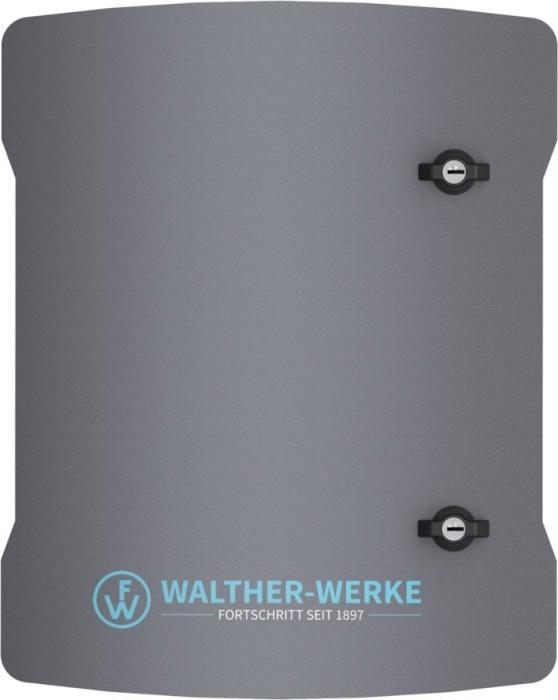

  • Galvanised powder-coated sheet steel housing in micaceous iron ore grey (DB703)
  • Lockable door with integrated design sign and Walther-Werke lettering
  • Easy mounting due to 3-point wall fastening
  • Maximum connection of the supply cable with NYY-J 1x5x10mm²

Included accessories:

  • 2 RFID cards Mifare Classic
  • 2 keys
  • 1x AMJ module
  • Safety instructions
  • Circuit diagram (all-pole)
  • Proof of conformity
  • Checklist
  • Functional test

Optionally available:

  • Pedestal single-sided version: 98900026
  • Double-sided version: 98900027
  • Earth piece: E8ES.

Key specifications

Product category
Charging station / Wallbox
Cable length
7.50 m
Item number
23787579

General information

Manufacturer
Walther Werke
Category
EV chargers
Manufacturer no.
98601350
Release date
28.9.2022

Colour

Colour
Grey
Exact colour description
Iron mica grey (DB703)

Material

Material group
Metal
Material
Sheet steel housing in micaceous iron ore grey (DB703)

Category

Product category
Charging station / Wallbox

Charger properties

Vehicle connection type
Type 2
Connection Infrastructure
Mode 3
Charging power
22 kW
Cable length
7.50 m
access protection
RFID-blocking
Interfaces / communication module
Ethernet
Compatible with services
Load management

Safety

Protective device
DC protection
Protection type (IP code)
IP54

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x AMJ module, 2 keys, 2 RFID cards Mifare Classic, Circuit diagram (all-pole), Function test checklist, Safety note, Unit verification

Product dimensions

Width
39 cm
Depth
20.30 cm
Height
49 cm
