Walther Grommet housing

Walther Werke Tüllengehäuse P712824

Manufacturer: Walther Werke
Designation: Tüllengehäuse B24
Height: 65 mm
Width: 120 mm
Depth: 43 mm
Housing design: other
Housing material: Aluminum
Housing coating: powder-coated
Housing color: gray
Cable entry arrangement: top
Bracket position: none
With cable gland: no
Type of cable gland attachment: metric
With hinged cover: no
With socket: no
With seal: yes
Number of cable entries: 1
Type of locking: longitudinal latch
Flammability class of insulating material according to UL 94: V0
Operating temperature: -40 to 125 °C
EMC version: no
Corrosion resistant: yes
UV resistant: yes
Protection class (IP), mounted: IP65

Walther Werke Tüllengehäuse P712824: additional details

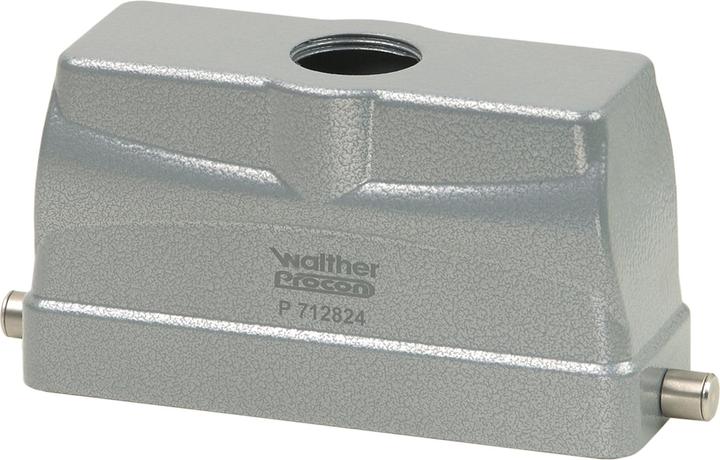

Walther Tüllengehäuse aluminum die-cast housing with a height of 65 mm featuring longitudinal locking latches, with an M25 threaded hole and a straight cable entry. Protection class: IP65 for series B24, BB46, D64, DD108, and MOB24.
