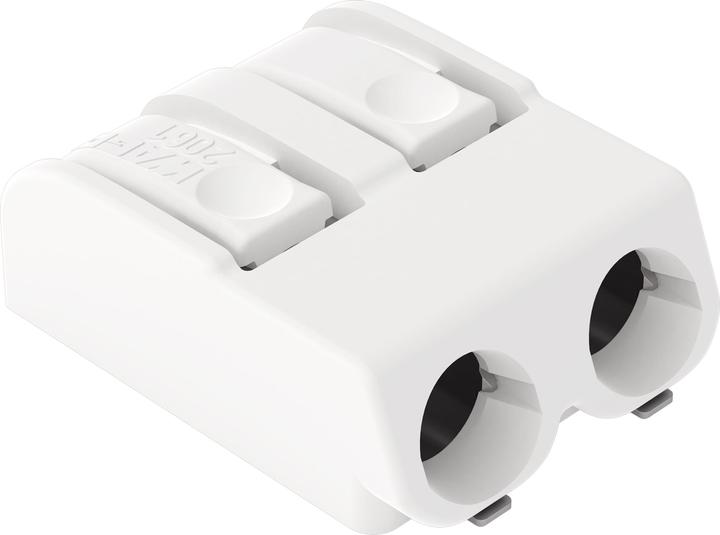

Wago Wire-to-board terminal block, SMD, 6mm pitch, right angle, cage clamp terminal, 2 poles

The Wire-to-Board terminal block from Wago is a highly advanced connection solution designed for PCB mounting. With a pitch of 6 mm and a right-angle orientation, this SMD terminal offers a compact and efficient way to establish electrical connections. It features a cage clamp that ensures a reliable and secure connection. The terminal is suitable for wire diameters ranging from 0.52 mm² to 1.5 mm² and supports a rated voltage of up to 320 V as well as a rated current of 17.5 A. The operating temperature ranges from -60 °C to 105 °C, making it suitable for a variety of applications in different environments. Additionally, the terminal meets the flammability class UL 94 V-0 and is compliant with CCA cURus standards, underscoring its safety and reliability.

• Operating temperature range of -60 °C to 105 °C
• Supports wire diameters from 0.52 mm² to 1.5 mm²
• Rated voltage of up to 320 V and rated current of 17.5 A
• Cage clamp for secure connections
• Meets flammability class UL 94 V-0 and CCA cURus standards.
