Serial Interface RS-232 C
9600 Baud
None
8/1 Bits

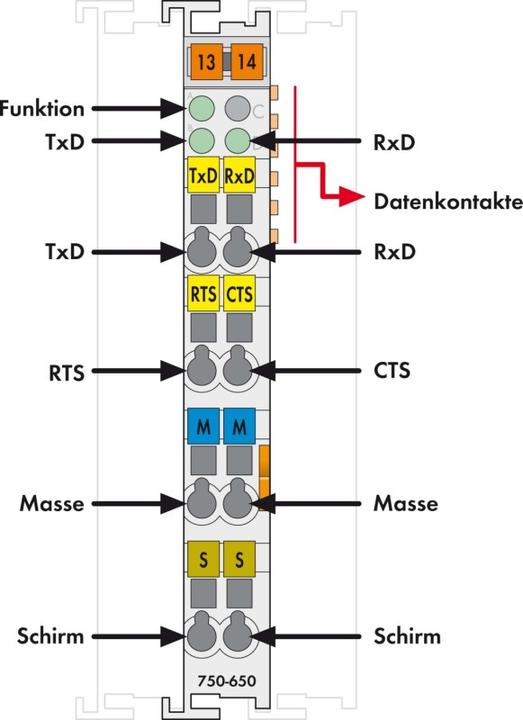

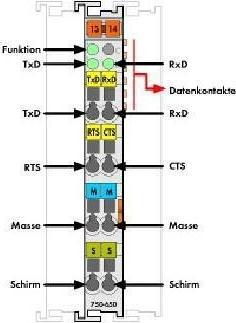

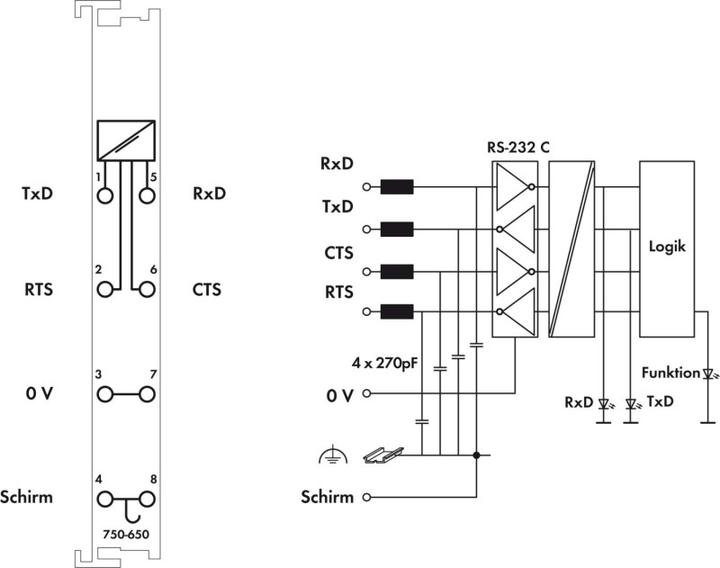

The integrated interface in the module allows for the connection of devices with an RS-232-C interface. The interface operates in accordance with TIA/EIA-F, CCITT V.28/DIN 66259-1 standards. The connected device can communicate directly with the control system via the used bus coupler. The active communication channel operates independently of the overlaid bus system in full duplex mode at speeds of up to 9600 Baud. The RS-232-C interface ensures high noise immunity through galvanically isolated signals. The shield connection is directly routed to the mounting rail.
Nominal voltage | 5 V |
Mounting type | Top-hat rail |
Item number | 33376337 |

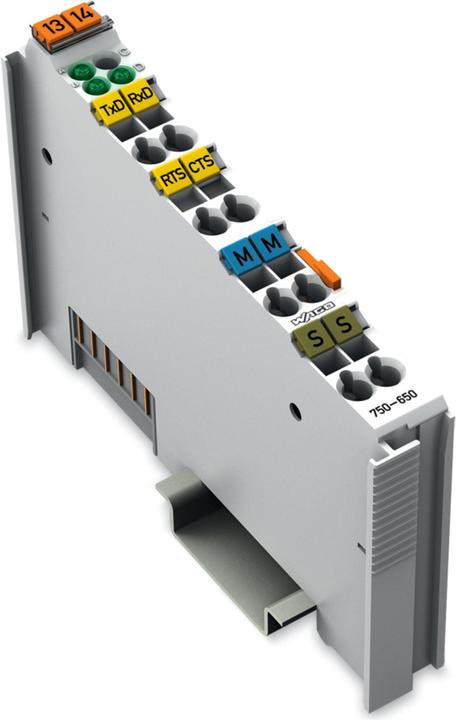

Manufacturer | Wago |
Category | Energy monitors |
Manufacturer no. | 750-650 |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | Light grey |
Mounting type | Top-hat rail |
Nominal voltage | 5 V |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Height | 69.80 mm |
Length | 100 mm |
Width | 12 mm |
Weight | 51.50 g |
