Product details

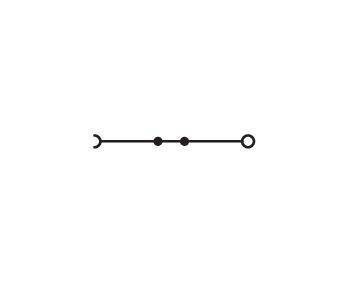

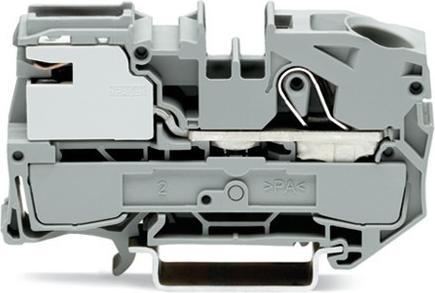

WAGO GmbH & Co. KG equipotential bonding terminal 2016-7111. Manufacturer: WAGO GmbH & Co. KG. Designation: Equipotential bonding terminal 1-wire, TS 35. Type: 2016-7111. Connectable conductor cross-section fine-stranded without ferrule: 0.5 to 25 mm². Connectable fine-stranded conductor cross-section with ferrule: 2.5 to 16 mm². Connectable solid conductor cross-section: 2.5 to 16 mm². Connectable stranded conductor cross-section: 0.5 to 16 mm². Rated current In: 76 A. Rated voltage: 250 V. Electrical connection type: Spring-loaded connection. Number of terminals: 1. Mounting type: Top-hat rail TH35. Insulating body material: Thermoplastic. Operating temperature: 105 °C. Flammability class of the insulating material according to UL 94: V0. Width: 12 mm. Height: 69.4 mm. Depth: 38.1 mm. Connection plate required: Yes. Colour: Other. Suitable for N-busbar: 3x10 mm. WAGO GmbH & Co. KG equipotential bonding terminal 2016-7111: further details 1-conductor equipotential bonding terminal 16 mm² Push-in CAGE CLAMP® 16.00 mm² grey. EAN: 4044918964562.
