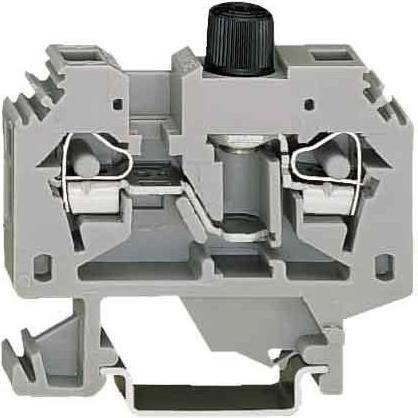

Wago Fuse terminal

WAGO GmbH & Co. KG Fuse Terminal Block 282-122

Manufacturer: WAGO GmbH & Co. KG
Designation: Fuse Terminal Block 0.2-6 mm² gray
Type: 282-122
Fuse Holder Design: G-Fuse 5x20 mm
Fuse Holder Type: screwable
Type of Indicator Element for Fault Indication: none
Connectable Wire Cross-Section Fine-Stranded without Ferrule: 0.2-6 mm²
Connectable Wire Cross-Section Fine-Stranded with Ferrule: 0.2-6 mm²
Connectable Wire Cross-Section Solid: 0.2-6 mm²
Connectable Wire Cross-Section Multi-Stranded: 0.2-6 mm²
Rated Current In: 10 A
Rated Voltage: 500 V
Electrical Connection Type 1: Spring Clamp Connection
Electrical Connection Type 2: Spring Clamp Connection
Number of Levels: 1
Mounting Type: DIN Rail TH35
Material of Insulating Body: Thermoplastic
Operating Temperature: 105 °C
Flammability Class of Insulating Material according to UL 94: V0
Width: 13 mm
Depth: 62 mm
End Plate Required: yes
Color: gray

2-Pole Fuse Terminal Block for G-Fuse Holder 5 x 20 mm without Fault Indication for Mounting Rail 35 x 15 and 35 x 7.5 6 mm² CAGE CLAMP® 6.00 mm² gray.
