Product details

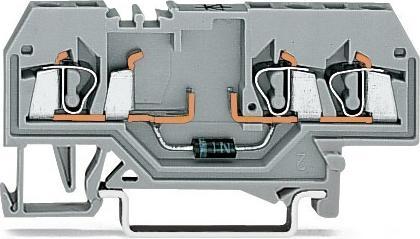

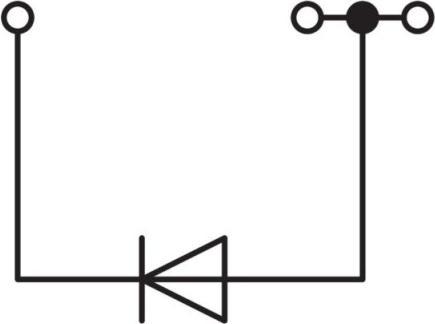

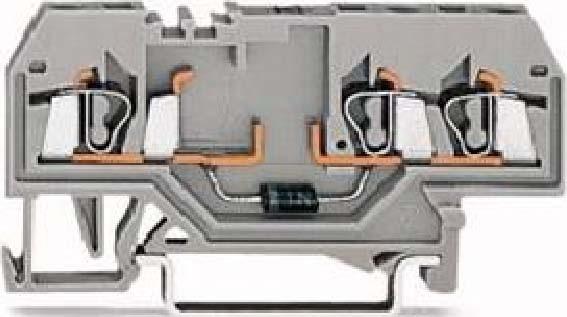

The diode terminal 280-673/281-411 from WAGO GmbH & Co. KG is a high-quality connection solution designed for use in electrical installations. It allows for the connection of fine-stranded, single-stranded, and multi-stranded conductors with a cross-section of 0.08 to 2.5 mm². The terminal features a spring-loaded connection that ensures an easy and secure connection. With a maximum operating temperature of 105 °C and a flammability rating of V0 according to UL 94, it offers high reliability and safety in operation. The diode terminal is suitable for mounting on a TH35 DIN rail and has three connection points per level, allowing for flexible application in various electrical systems. This terminal is ideal for applications where a diode, such as the 1N4007, is needed to control and protect the flow of current.
- Spring-loaded connection for easy handling
- Suitable for conductor cross-sections from 0.08 to 2.5 mm²
- Maximum operating temperature of 105 °C
- Flammability rating V0 according to UL 94
- Mounting on TH35 DIN rail.
