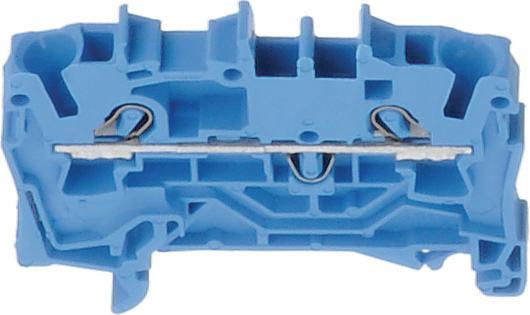

Wago DIN rail terminal 2x2.5mm2 blue

WAGO GmbH & Co. KG Through Terminal 2002-1204

Manufacturer: WAGO GmbH & Co. KG
Designation: Through terminal 2-conductor, TS 35
Type: 2002-1204
Connectable conductor cross-section fine-stranded without ferrule: 0.25 to 4 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.75 to 2.5 mm²
Connectable conductor cross-section solid: 0.75 to 4 mm²
Connectable conductor cross-section multi-stranded: 0.25 to 2.5 mm²
Rated current In: 24 A
Rated voltage: 800 V
Electrical connection type 1: Spring clamp connection
Electrical connection type 2: Spring clamp connection
Number of levels: 1
Number of connection points per level: 2
Mounting type: DIN rail TH35
Material of insulating body: Thermoplastic
Operating temperature: 105 °C
Flammability class of insulating material according to UL 94: V0
Width: 5.2 mm
Height: 48.5 mm
Depth: 32.9 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: blue
Internally bridged levels: no

WAGO GmbH & Co. KG Through Terminal 2002-1204: additional details
2-conductor through terminal 2.5 mm² suitable for applications Ex e II and Ex i, side and center labeling for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP® 2.50 mm² blue, EAN: 4017332999175.
