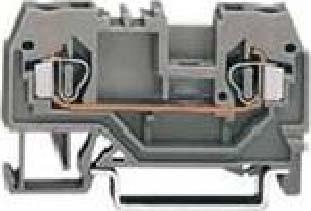

Wago Contact technology 3-wire feed-through terminal 280-906

WAGO GmbH & Co. KG 3-wire feed-through terminal 280-906

Manufacturer: WAGO GmbH & Co. KG
Designation: 3-wire feed-through terminal 0.08-2.5 mm² 24A
Type: 280-906
Connectable conductor cross-section finely stranded without ferrule: 0.08 - 2.5 mm²
Connectable conductor cross-section solid: 0.08 - 2.5 mm²
Connectable conductor cross-section stranded: 0.08 - 2.5 mm²
Rated current: 24 A
Rated voltage: 800 V
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Number of levels: 1
Number of terminals per level: 2
Mounting type: Top-hat rail TH35
Insulating body material: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0
Width: 5 mm
Height: 53 mm
Depth: 28 mm
Explosion-tested version "Ex e": no
End plate required: yes
Colour: yellow
Floors internally bridged: no

WAGO GmbH & Co. KG 3-wire feed-through terminal block 280-906: more details 2-wire feed-through terminal block 2.5 mm² centred labelling for mounting rail 35 x 15 and 35 x 7.5 CAGE CLAMP® 2.50 mm² yellow.
