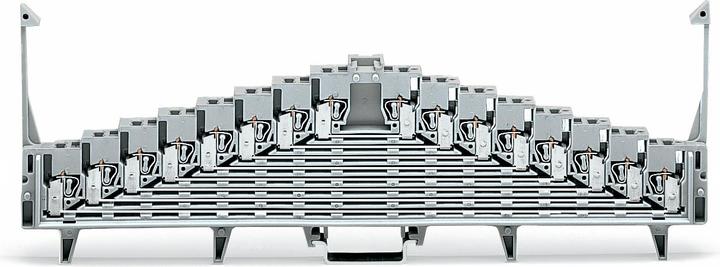

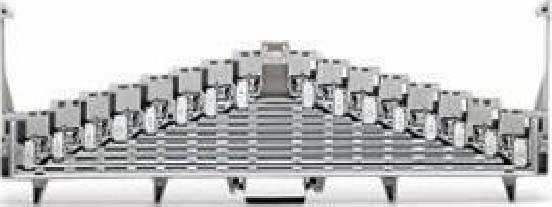

Wago 8-tier shunting clamp.

WAGO GmbH & Co. KG 8-Level Distribution Terminal Block 727-119/002-000. Manufacturer: WAGO GmbH & Co. KG. Designation: 8-Level Distribution Terminal Block. Type: 727-119/002-000. Acceptable conductor cross-section for fine-stranded wires without ferrule: 0.08 to 1.5 mm². Acceptable conductor cross-section for fine-stranded wires with ferrule: 0.25 to 0.75 mm². Acceptable conductor cross-section for solid wires: 0.08 to 1.5 mm². Acceptable conductor cross-section for multi-stranded wires: 0.08 to 1.5 mm². Rated current: 10 A. Rated voltage: 250 V. Electrical connection type 1: Spring clamp connection. Electrical connection type 2: Spring clamp connection. Number of levels: 8. Number of connection points per level: 4. Mounting type: DIN rail TH35. Material of the insulating body: Thermoplastic. Operating temperature: 105 °C. Flammability class of the insulating material according to UL 94: V0. Width: 7.62 mm. Height: 226 mm. Depth: 76 mm. Explosion-proof version "Ex e": no. End plate required: yes. Color: gray. Internally bridged levels: no. Additional details: 8-Level Distribution Terminal Block with locking hook, one potential per level with test opening Ø 2.3 mm. Print: a-b-c-d-e-f-g-h-h-g-f-e-d-c-b-a for mounting rail 35 x 7.5. EAN: 4045454186944.
