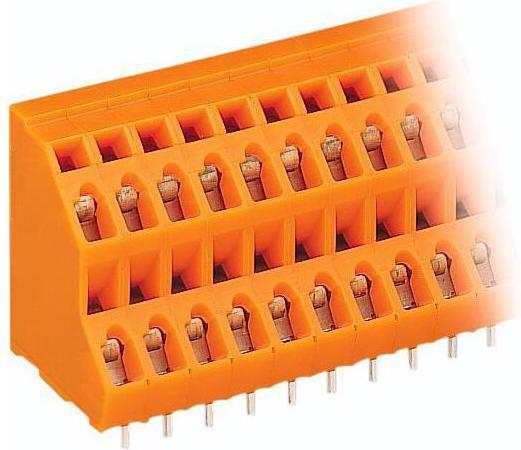

Wago 736-306 Double-deck terminal strip for printed circuit boards 0.08-2.5 qmm orange

The Wago 736-306 double-decker terminal block is a highly advanced solution for connecting circuit boards. It features a compact design with two rows, allowing for efficient wiring in various applications. With a wide range of wire diameters from 0.08 mm² to 2.5 mm² and a maximum operating temperature of 105 °C, this terminal block is versatile. The cage clamp ensures a reliable and secure connection, while the UL 94 V-0 flammability rating provides additional safety. The terminal block is rated for a nominal voltage of 300 V and a nominal current of 21 A, making it ideal for demanding electronic applications. With 12 poles and a pitch of 5.08 mm, it is perfectly suited for integration into various systems.

• Operating temperature from -60 °C to 105 °C for versatile applications
• Cage clamp for secure and reliable connections
• UL 94 V-0 flammability rating for enhanced safety
• Nominal voltage of 300 V and nominal current of 21 A for demanding applications
• Compatible with a variety of hardware solutions.
