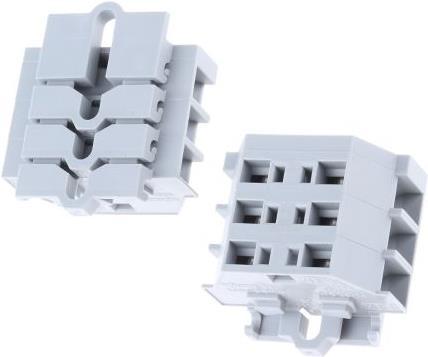

Wago 3 way side entry cage clamp terminal

Series: 261
Wire size: 28 → 14 AWG
Cable cross-section: 0.08 → 2.5 mm²
Color: Gray
Nominal current: 24 A
Number of levels: Double
Connection type: Terminal
Operating voltage: 500 V
Pitch: 6 mm

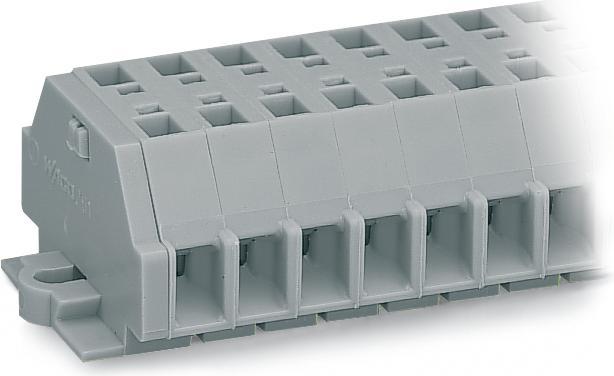

Spring clamp – Series 261. Screwdriver-operated spring clamp terminal blocks with side entry, featuring mounting flanges at both ends. A mounting adapter for DIN rails for screw mounting in the base of the terminal block is also available. A maximum distance of 35-40 mm between the adapters is recommended. Order number 101-3877 (WAGO 209-123) is a mounting foot with a screw for DIN-35 rail. It can be screwed onto terminal blocks with mounting flanges. Suitable for spring clamps – modular terminal blocks Series 260, 261, and 262. Features and benefits: 2 conductor through connection terminal block, 6 kV surge voltage. 101-3877 is a mounting foot with a screw for DIN 35 rail.
