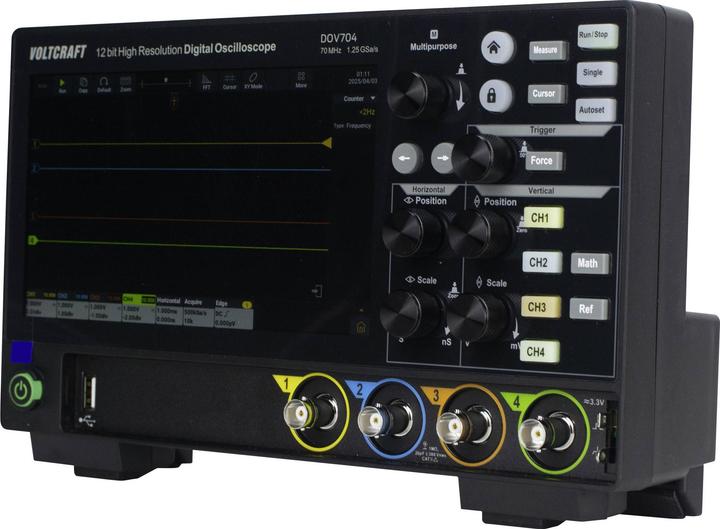

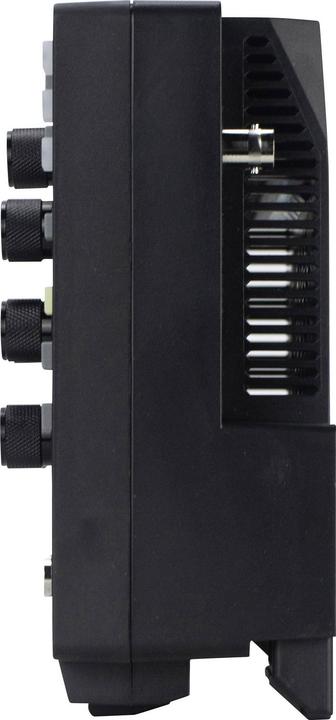

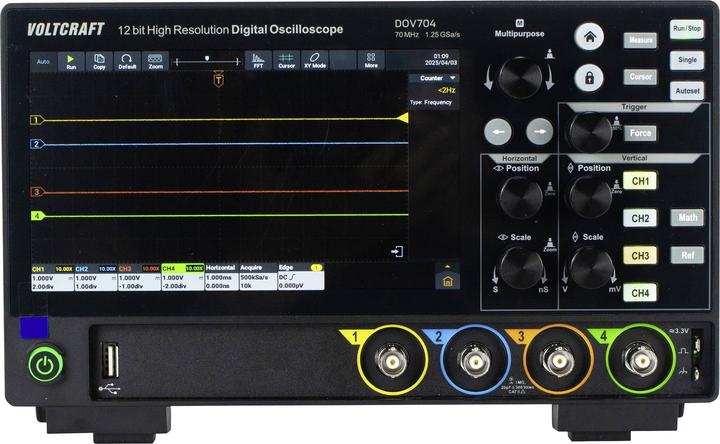

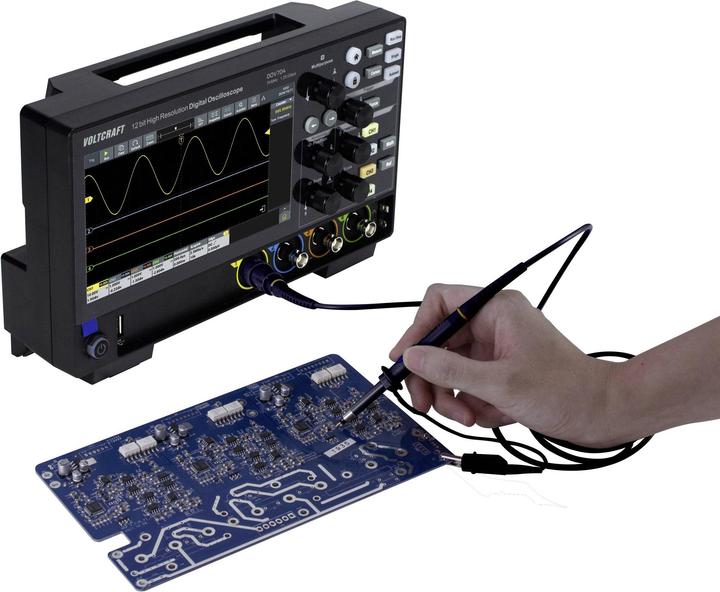

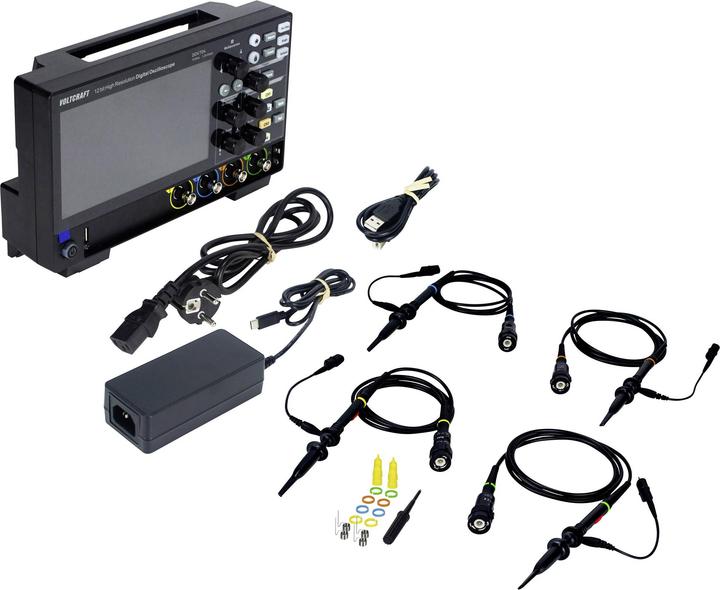

Voltcraft DOV704 Digital oscilloscope

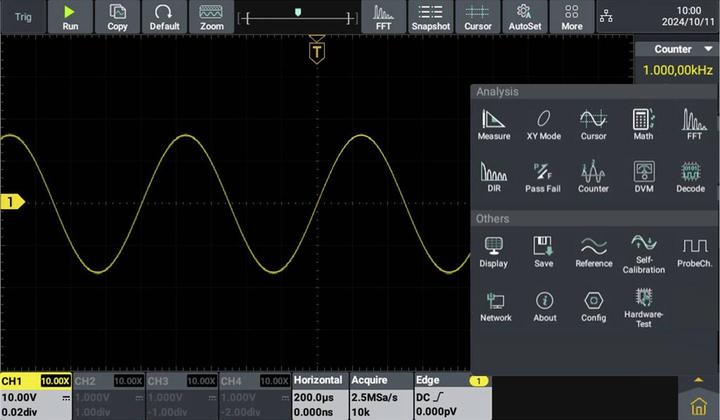

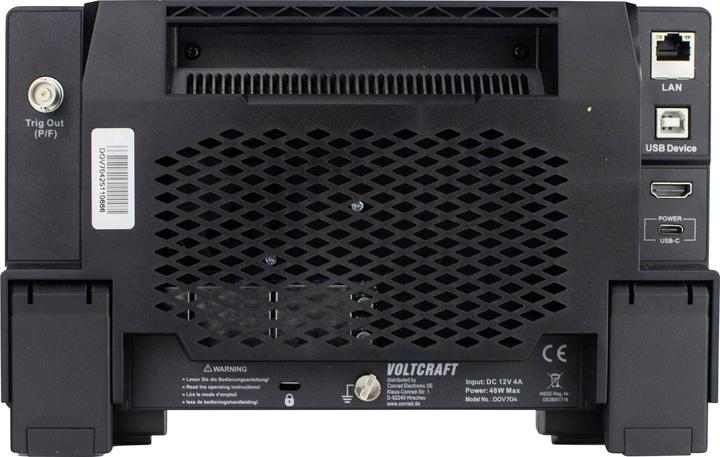

The DOV oscilloscope series from Voltcraft impresses with a multitude of technical highlights and maximum user convenience: A 12-bit analogue-to-digital converter is part of the standard equipment, as are USB, LAN and HDMI interfaces. The 7-inch touch display with a resolution of 1024 x 600 pixels takes centre stage. It not only responds to touch, but also to gestures, which largely eliminates the need for complicated menu navigation. Outstanding technical specifications. All Voltcraft digital DOV oscilloscopes operate at a maximum sampling rate of 1.25 GSa/s. The real-time acquisition rate is 50,000 wfms/s, and the segmented acquisition rate is 700,000 wfms/s, enabling fast and accurate acquisition of irregular signals. The horizontal scanning speed ranges from 1 ns/div to 1000 s/div (1-2-5 step). One of the strengths of the Voltcraft DOV series lies in its extensive trigger functions. Even signals that are difficult to trigger can be captured thanks to trigger types such as edge, video, pulse, slope, runt, window, timeout, Nth, logic, RS232/UART, I2C, SPI, CAN and LIN. Specifications of the Voltcraft DOV704. The DOV704 has a bandwidth of 70 MHz and four analogue inputs. The signal duration is 50 M, and real-time display of the signal curve on a PC is possible for clear display and evaluation. The four inputs CH1 to CH4 are available as trigger sources and users can choose between sampling modes: Sampling, Peak, High Resolution, Average and Segmentation. The vertical sensitivity is adjustable from 500 µV/div to 10 V/div. Supplied with accessories. The Voltcraft DOV704 is supplied with a USB Type-C power supply, USB cable, four test probes and two sets of test probe adaptors. In addition, the package includes software with an English manual on CD, a quick start guide and a safety data sheet.
