Voltcraft DOV2504F LA Digital-Oszilloskop 250 MHz 4-Kanal 1.25 GSa/s 100 Mpts 1

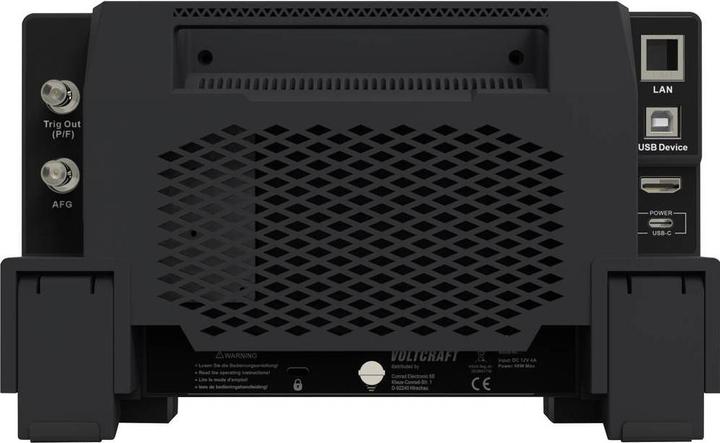

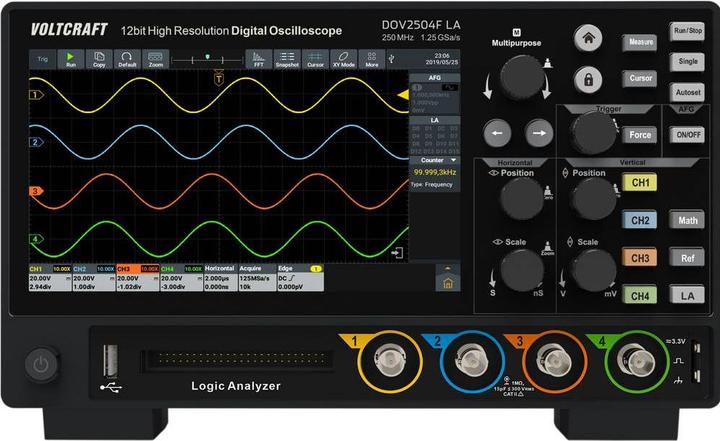

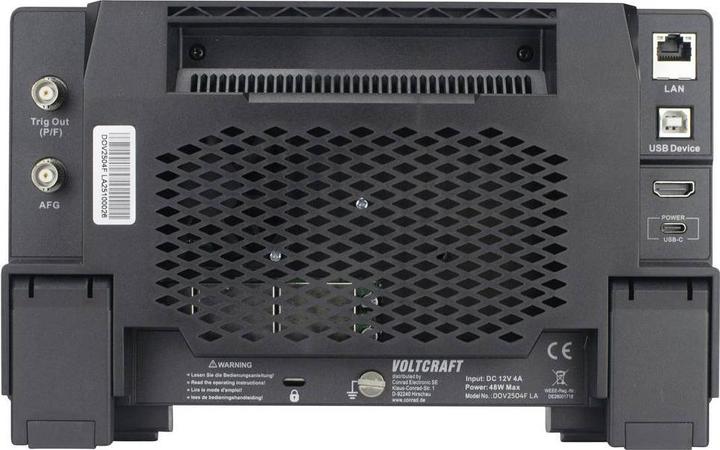

High-quality, innovative, and compact. The DOV oscilloscope series from Voltcraft impresses with a whole range of technical highlights and maximum user comfort: an analog-to-digital converter with 12-bit resolution is part of the standard equipment, along with USB, LAN, and HDMI interfaces. At the center is the 7-inch touchscreen display with a resolution of 1024 x 600 pixels. It responds not only to touches but also to gestures, making cumbersome menu navigation largely unnecessary.

Outstanding technical specifications: All digital DOV oscilloscopes from Voltcraft operate with a maximum sampling rate of 1.25 GSa/s. The real-time capture is at 50,000 wfms/s, and the segmented capture is at 700,000 wfms/s, allowing for quick and accurate capture of irregular signals. The horizontal sampling speed ranges from 1 ns/div to 1000 s/div (1-2-5 step).

Numerous trigger functions: One of the strengths of the DOV series from Voltcraft lies in its extensive trigger functions. Even difficult-to-trigger signals can be captured thanks to trigger types such as edge, video, pulse, slope, runt, window, timeout, Nth, logic, RS232/UART, I2C, SPI, CAN, and LIN triggers.

Specifications of the Voltcraft DOV2504F LA: The DOV2504F LA features a bandwidth of 250 MHz and four analog inputs. The signal recording length is 100 M, and for clear display and evaluation, real-time signal waveform display on the PC is possible. The four inputs CH1 to CH4 and the 16-channel logic analyzer serve as trigger sources. Users can choose between the capture modes of sample, peak, high resolution, average, and segmentation. The vertical sensitivity is adjustable from 200 µV/div to 10 V/div.

Integrated arbitrary function generator: For specific troubleshooting, an arbitrary waveform generator (AWG) with a sampling rate of 160 MSa/s, a vertical resolution of 14 bits, and a maximum frequency of 30 MHz is integrated.
