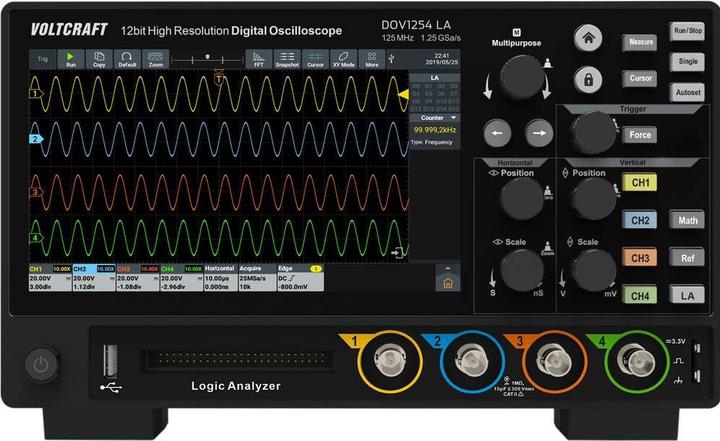

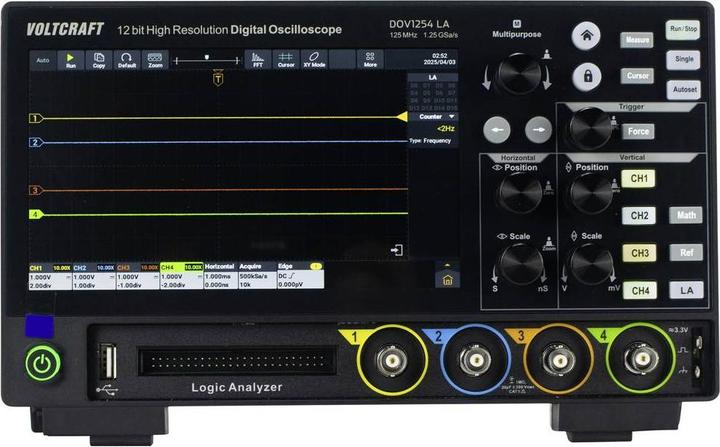

Voltcraft DOV1254 LA Digital-Oszilloskop 125 MHz 4-Kanal 1.25 GSa/s 100 Mpts 12

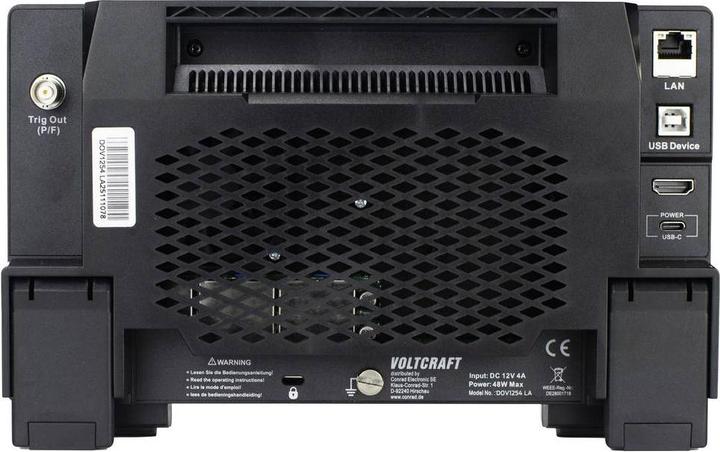

High-quality, innovative, and compact. The DOV oscilloscope series from Voltcraft impresses with a whole range of technical highlights and maximum user comfort: An analog-to-digital converter with 12-bit resolution is part of the standard equipment, along with USB, LAN, and HDMI interfaces. At the center is the 7-inch touch display with a resolution of 1024 x 600 pixels. It responds not only to touches but also to gestures, making cumbersome menu navigation largely unnecessary.

Outstanding technical specifications. All digital DOV oscilloscopes from Voltcraft operate with a maximum sampling rate of 1.25 GSa/s. The real-time capture is at 50,000 wfms/s, and the segmented capture is at 700,000 wfms/s, allowing for quick and accurate capture of irregular signals. The horizontal sampling speed ranges from 1 ns/div to 1000 s/div (1-2-5 step).

Numerous trigger functions. One of the strengths of the DOV series from Voltcraft lies in its extensive trigger functions. Even difficult-to-trigger signals can be captured thanks to trigger types such as edge, video, pulse, slope, runt, window, timeout, Nth, logic, RS232/UART, I2C, SPI, CAN, and LIN triggers.

Specifications of the Voltcraft DOV1254 LA. The DOV1254 LA features a bandwidth of 125 MHz and four analog inputs. The signal recording length is 100 M, and for clear display and evaluation, real-time signal waveform display on the PC is possible. The four inputs CH1 to CH4 and the 16-channel logic analyzer serve as trigger sources. Users can choose between sampling modes: Sample, Peak, High Resolution, Average, and Segmentation. The vertical sensitivity is adjustable from 200 µV/div to 10 V/div.

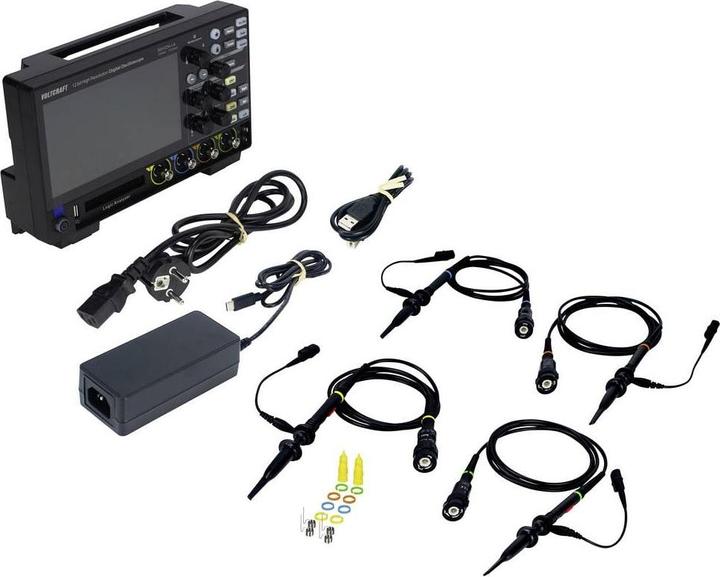

Delivery package with accessories. The Voltcraft DOV1254 LA comes with a USB Type-C power supply, USB cable, four test probes, and two probe adjustment sets.
