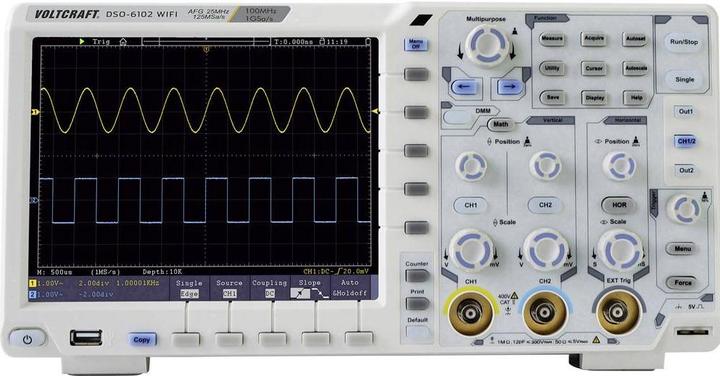

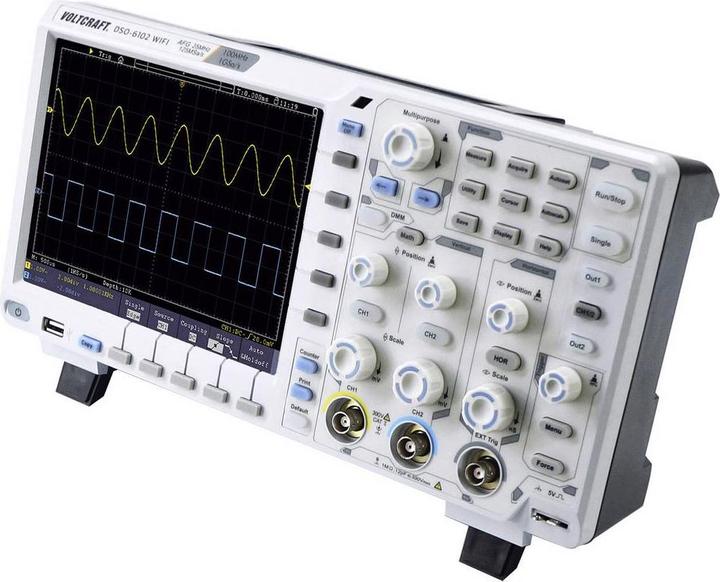

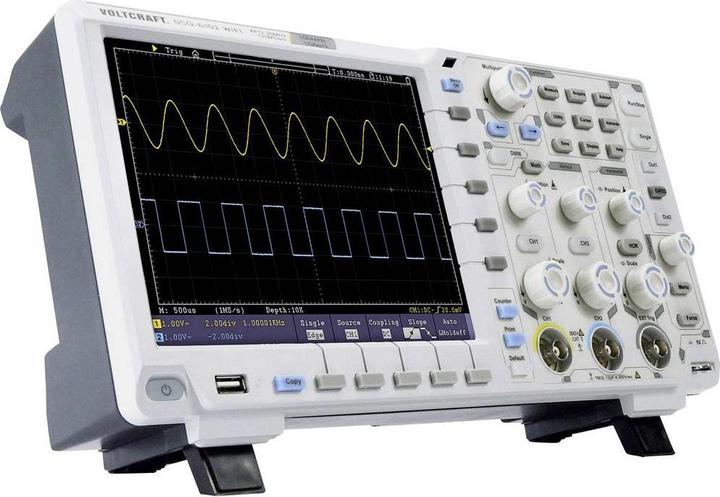

Voltcraft Digital Oscilloscope DSO-6102WIFI 100 MHz

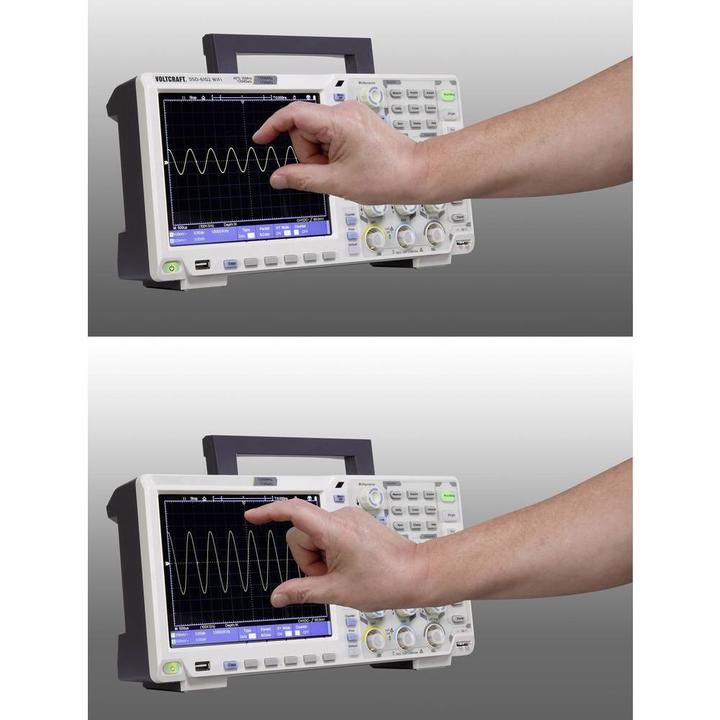

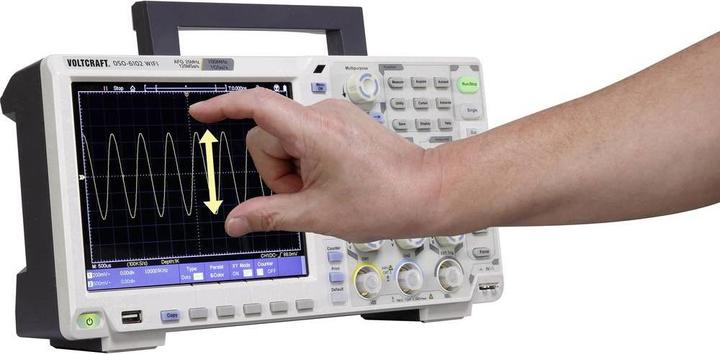

The DSO-6102 WiFi digital storage oscilloscope is ideal for measurements in the laboratory, development departments, or service tasks. Settings can be made using the control buttons or directly on the screen. Moving and zooming is as intuitive as on a smartphone or tablet.

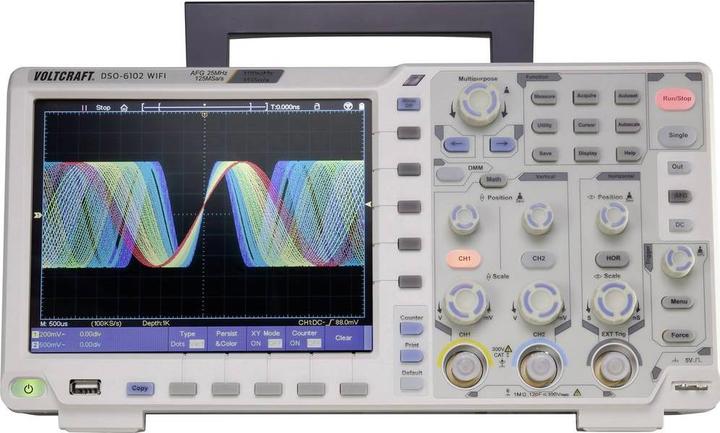

The color temperature view displays recurring waveforms in rainbow colors according to their frequency when frequencies change. The 25 MHz single-channel function generator can be operated via the touch panel or conventionally via buttons. Customized waveforms can be created and saved.

All measurement results and screen contents can be transferred to a PC via USB or network for documentation purposes. When saving to USB data storage media, the file name can be conveniently entered on the touch display. The function generator allows for sine, square, ramp, and pulse waveforms to be called up, along with many other predefined arbitrary waveforms including exponential, sine function, staircase, and noise. Users can also save their own arbitrary waveforms.

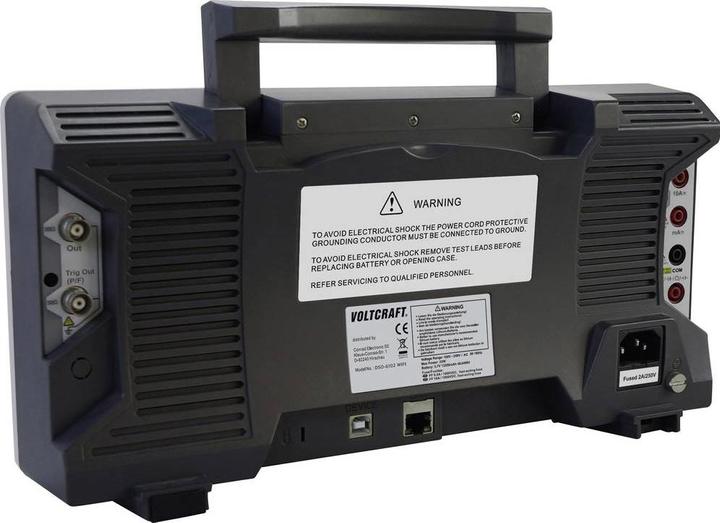

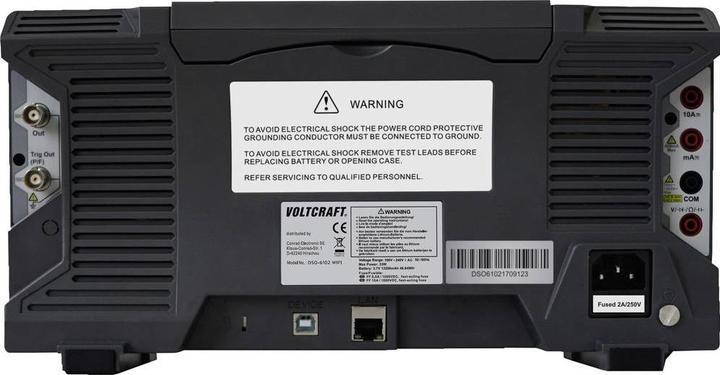

Waveforms at the oscilloscope input can be cloned to the function generator, with the section to be cloned selected conveniently via the touchscreen. The safety measuring sockets for the built-in digital multimeter (DMM) are located on the rear, allowing for long-term measurements in the development laboratory. Values from the integrated multimeter recorder (data logger) can be saved internally or on USB sticks.

Measurement results and graphs can also be displayed on a smartphone or tablet using the Voltcraft DSO 6000 app. Special features include the function generator, multimeter functions, and digital memory (DSO).
